AM1018C

20 MHz to 6 GHz Gain Block


Recommended for New Designs


Product Options

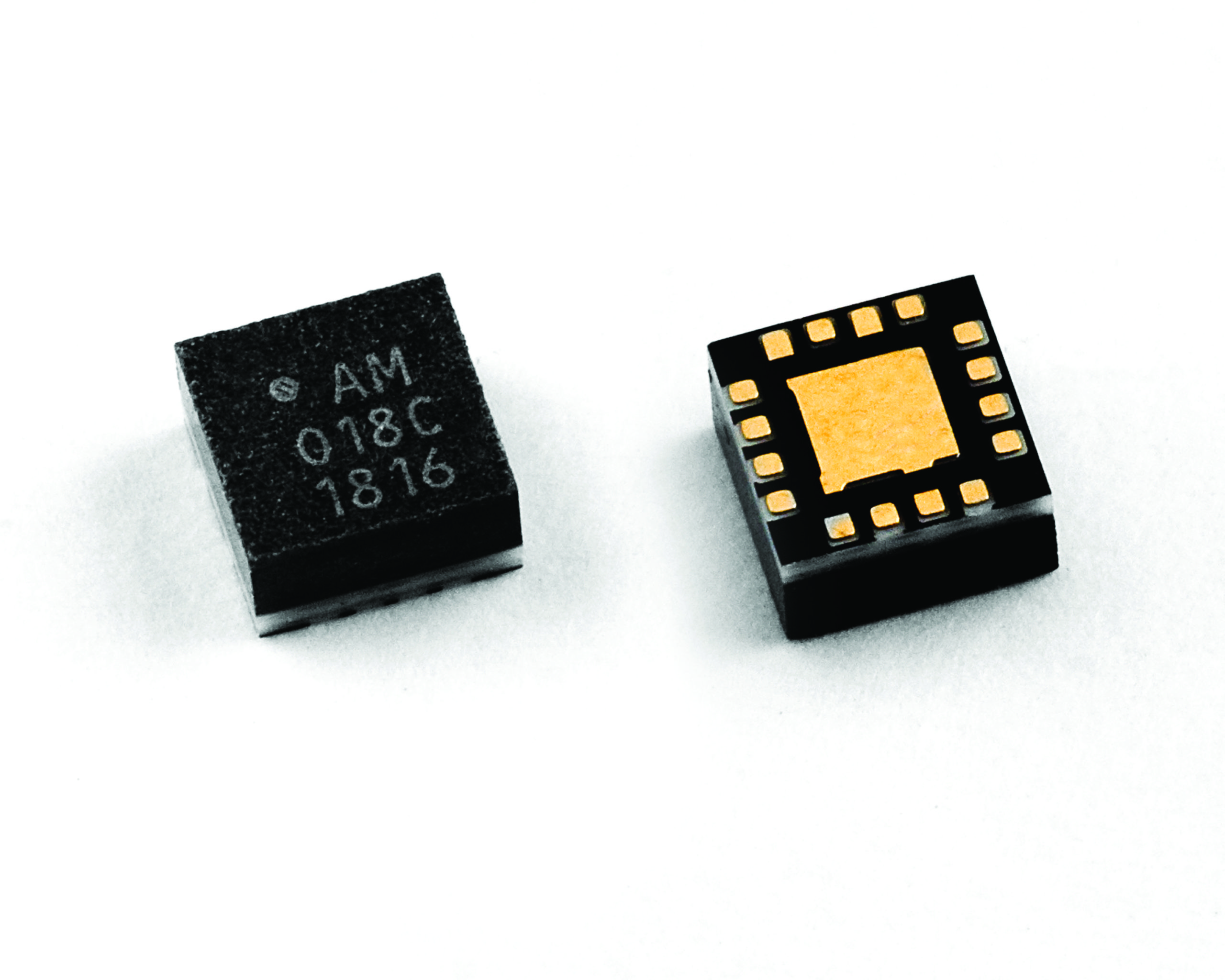

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1018C is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1018C represents a compact total PCB footprint.



Need similar performance but in a ceramic package?

Atlanta Micro offers the AM1018A and AM1018B which offer similar performance to the AM1018C but packaged in a ceramic package. Ceramic packages have many benefits including better thermal management, better moisture sensitivity, and lower profile among other benefits.

Product Overview

AM1018C is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1018C represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1018C.

Product Overview

AM1018C is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1018C represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

13

NF (dB)

2.7

OIP3 (dBm)

36

Surface Mount

3mm

Supply (+V)

5

P1dB (dBm)

21

Supply (mA)

96

Module

Yes

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33
