| Quantity | AM1064-2 | AM1064-1 | AM1064-2 Eval | AM1064-1 Eval | AM1064-M |
|---|---|---|---|---|---|
| 1 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 10 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 50 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 100 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 200 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 500 | RFQ | RFQ | RFQ | RFQ | RFQ |
| 1000+ | RFQ | RFQ | RFQ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.
The AM1064-2 is a high dynamic range DC-coupled amplifier covering up to 8 GHz. The device exhibits a low noise figure and high third order intercept performance while also providing a flat gain response and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 1.3 by 2.0mm DFN, the AM1064-2 represents a compact total PCB footprint.
The AM1064 is also available in a 3mm QFN form factor as the AM1064-1.

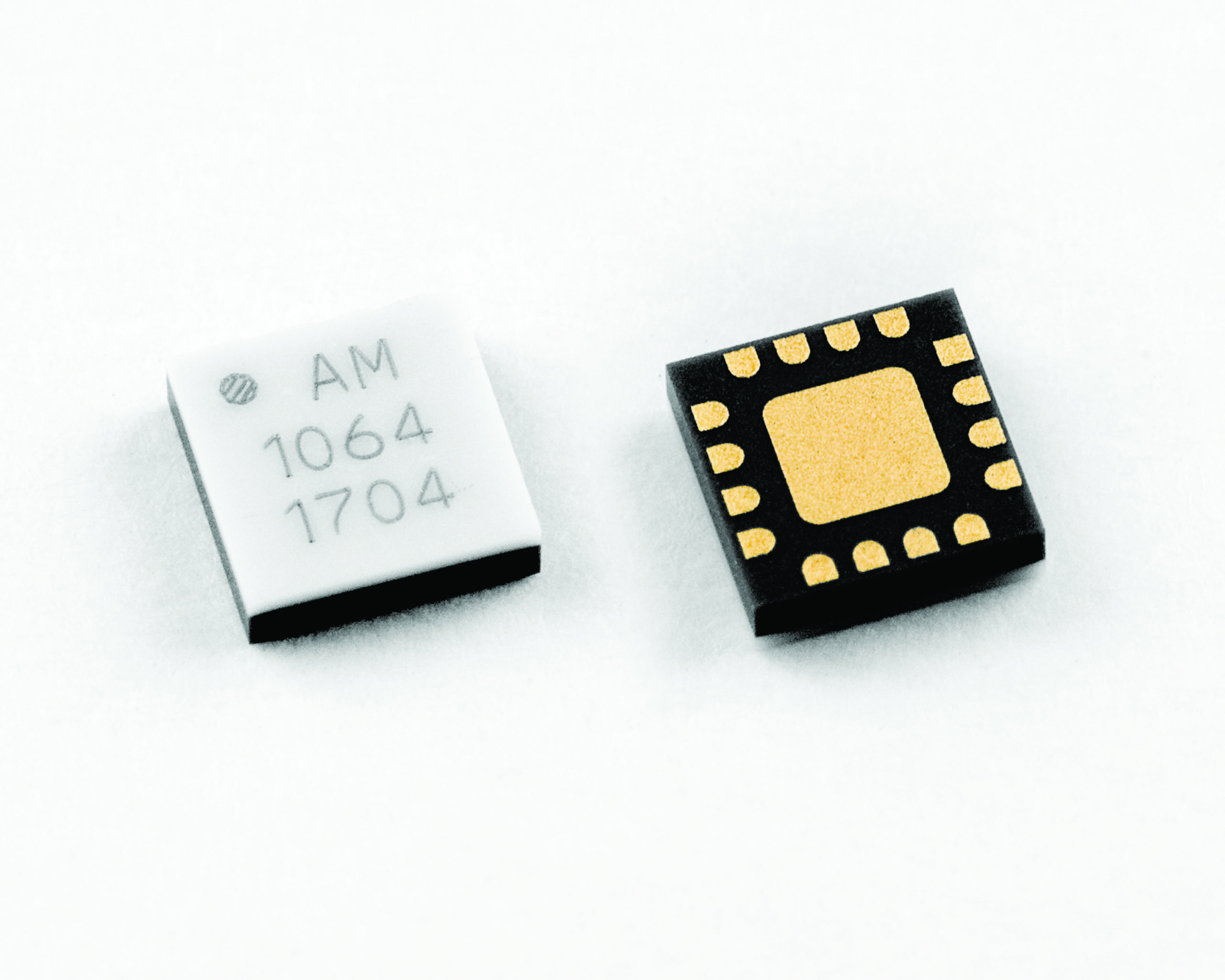

The AM1064-1 is a high dynamic range amplifier covering up to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN, the AM1064-1 represents a compact total PCB footprint.
For more information, view the AM1064-1. product page.
The AM1064-2 is a high dynamic range DC-coupled amplifier covering up to 8 GHz. The device exhibits a low noise figure and high third order intercept performance while also providing a flat gain response and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 1.3 by 2.0mm DFN, the AM1064-2 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1064-2.
The AM1064 is also available in a 3mm QFN form factor as the AM1064-1.
The AM1064-1 is a high dynamic range amplifier covering up to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN, the AM1064-1 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1064-1.
For more information, view the AM1064-1. product page.
The AM1064 is a high dynamic range amplifier covering up to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN, the AM1064 represents a compact total PCB footprint.
Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.
Function
Low Noise Gain Block
Freq. (GHz)
DC - 8
Gain (dB)
20
NF (dB)
2
OIP3 (dBm)
32
Surface Mount
1.3x2mm
Supply (+V)
3.3 / 5
P1dB (dBm)
18
Supply (mA)
36 / 73
Module
No
ECCN: EAR99
Harmonized Code: 8542.33
