AtlantaMicro

AM1065

DC to 8 GHz Bypassable Gain Block


Recommended for New Designs


Product Options

Surface Mount 4mm x 4mm QFN
Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

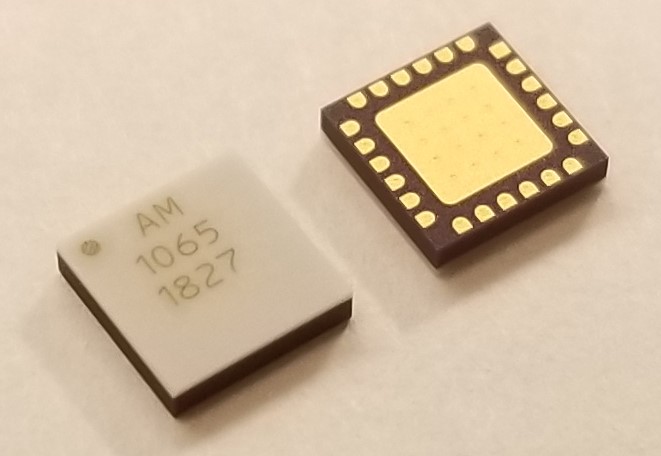

The AM1065 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz. The device exhibits a flat gain response and low bypass insertion loss. Packaged in a 4mm QFN with internal 50Ω matching and requiring a single positive control voltage, the AM1065 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.

The AM1065 is part of Atlanta Micro’s catalog of bypassable amplifiers ranging from DC to 26.5 GHz. In this family there is the AM1081 that covers DC to 8 GHz with higher P1dB and IP3, the AM1067 that covers 5 GHz to 20 GHz, and the AM1075 that covers 5 GHz to 26.5 GHz. In addition to these the AM1073 offers bi-directional performance while still being bypassable covering DC to 8 GHz and the AM1077 offers a bypassable amplifier with an isolation state covering 5 GHz to 20 GHz.

Distribution available via Digi-Key Electronics.

Product Overview

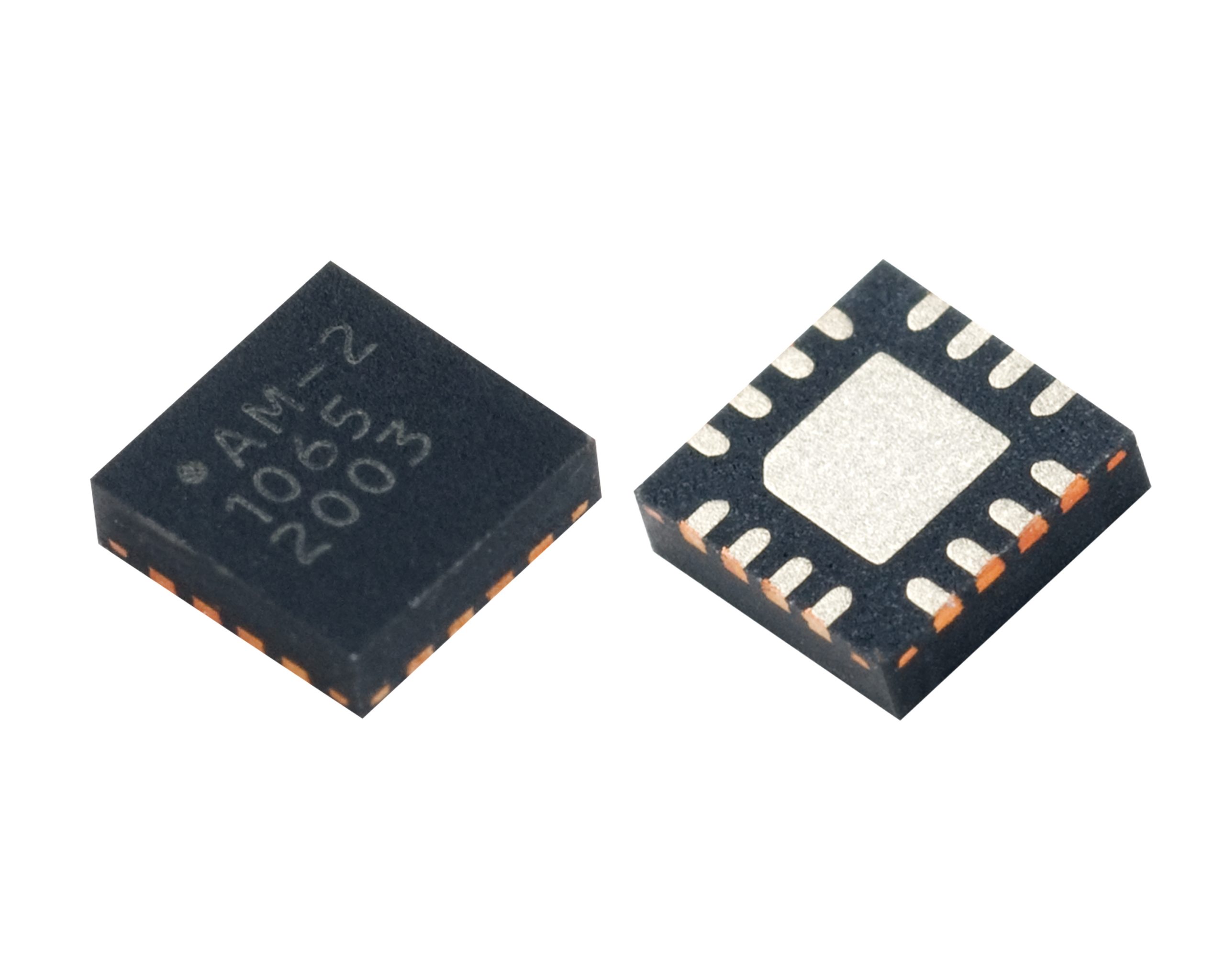

The AM1065-2 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz.  The device exhibits low bypass insertion loss and a flat gain profile useful in many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching and only requiring a single positive control voltage, the AM1065-2 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.

For more information visit AM1065-2 product page.

Product Overview

The AM1065 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz. The device exhibits a flat gain response and low bypass insertion loss. Packaged in a 4mm QFN with internal 50Ω matching and requiring a single positive control voltage, the AM1065 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM1065 evaluation board also includes DIP switch for control of bypass function. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM1065.

Product Overview

The AM1065-2 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz.  The device exhibits low bypass insertion loss and a flat gain profile useful in many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching and only requiring a single positive control voltage, the AM1065-2 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM1065-2 evaluation board also includes DIP switch for control of bypass function. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM1065-2.

For more information visit AM1065-2 product page.

Product Overview

The AM1065 is a high dynamic range bypassable DC-coupled amplifier covering up to 8 GHz. The device exhibits a flat gain response and low bypass insertion loss. Packaged in a 4mm QFN with internal 50Ω matching and requiring a single positive control voltage, the AM1065 represents a dramatic size reduction over a discrete implementation of a bypassable amplifier.

Module includes field replaceable SMA input and output connectors. Module also includes three pins for voltage input through a feed-through capacitor and a corresponding ground connection as well as a pin for toggling the bypass control high or low. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Bypassable Amplifier

Freq. (GHz)

DC - 8

Gain (dB)

20

NF (dB)

2.5

OIP3 (dBm)

32

Surface Mount

4mm

Supply (+V)

3.3 / 5

P1dB (dBm)

17

Supply (mA)

33 / 72

Module

Yes

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33
