| Quantity | AM1070-2 | AM1070-1 | AM1070-2 Eval | AM1070-1 Eval |
|---|---|---|---|---|
| 1 | RFQ | RFQ | RFQ | RFQ |
| 10 | RFQ | RFQ | RFQ | RFQ |
| 50 | RFQ | RFQ | RFQ | RFQ |
| 100 | RFQ | RFQ | RFQ | RFQ |
| 200 | RFQ | RFQ | RFQ | RFQ |
| 500 | RFQ | RFQ | RFQ | RFQ |
| 1000+ | RFQ | RFQ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.
The AM1070-2 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in 1.3mm x 2mm DFN, the AM1070 represents a compact total PCB footprint.
The AM1070 is also available in a 3mm QFN package as the AM1070-1.
The AM1070-1 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN, the AM1070-1 represents a compact total PCB footprint.
For more information, view AM1070-1 product page.
The AM1070-2 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in 1.3mm x 2mm DFN, the AM1070 represents a compact total PCB footprint.

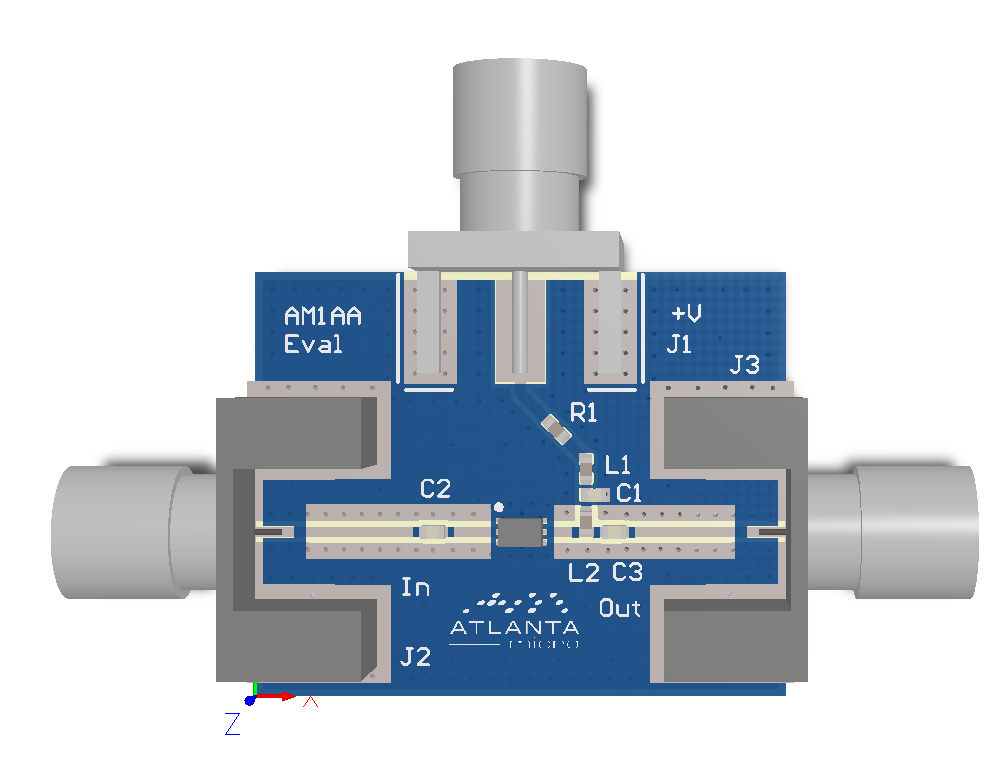

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1070-2.
The AM1070-1 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in either a 3mm QFN, the AM1070-1 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1070-1.
Function
Low Noise Gain Block
Freq. (GHz)
DC - 18
Gain (dB)
12
NF (dB)
3
OIP3 (dBm)
27
Surface Mount
1.3x2mm
Supply (+V)
3.3
P1dB (dBm)
15
Supply (mA)
60
Module
No
ECCN: EAR99
Harmonized Code: 8542.33
