AM1085-2

DC to 6 GHz Miniature High Linearity Amplifier


Recommended for New Designs


Product Options

Surface Mount 1.3mm x 2mm DFN
Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

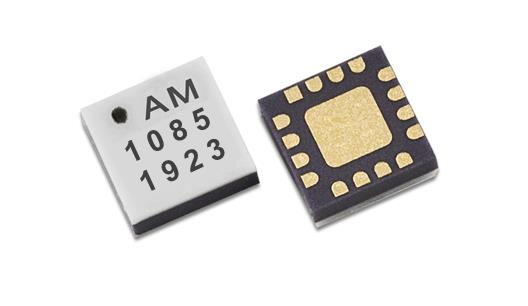

The AM1085-2 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 1.3mm  x 2mm DFN the AM1085-2 represents a compact total PCB footprint.

The AM1085 is also available in a 3mm QFN form factor as the AM1085-1.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

For more information, view the  AM1085-1 product page.

Product Overview

The AM1085-2 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 1.3mm  x 2mm DFN the AM1085-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1085-2.

The AM1085 is also available in a 3mm QFN form factor as the AM1085-1.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1085-1.

For more information, view the  AM1085-1 product page.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

DC - 6

Gain (dB)

16

NF (dB)

2.5

OIP3 (dBm)

35

Surface Mount

1.3x2mm

Supply (+V)

5

P1dB (dBm)

20

Supply (mA)

79

Module

No

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33

AM1085-2

DC to 6 GHz Miniature High Linearity Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 1.3mm x 2mm DFN
Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1085-2 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 1.3mm  x 2mm DFN the AM1085-2 represents a compact total PCB footprint.

The AM1085 is also available in a 3mm QFN form factor as the AM1085-1.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

For more information, view the  AM1085-1 product page.

Product Overview

The AM1085-2 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 1.3mm  x 2mm DFN the AM1085-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1085-2.

The AM1085 is also available in a 3mm QFN form factor as the AM1085-1.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1085-1.

For more information, view the  AM1085-1 product page.

Product Overview

The AM1085-1 is a high dynamic range amplifier covering up to to 6 GHz. The device exhibits a high third order intercept performance, excellent gain stability over the operating temperature range, and a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1085-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

DC - 6

Gain (dB)

16

NF (dB)

2.5

OIP3 (dBm)

35

Surface Mount

1.3x2mm

Supply (+V)

5

P1dB (dBm)

20

Supply (mA)

79

Module

No



ECCN: EAR99

Harmonized Code: 8542.33
