AtlantaMicro

AM1099

26 GHz to 32 GHz Gain Block


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM1099 is a high frequency, cascadable amplifier servicing the 26 to 32 GHz frequency range. The device exhibits moderate gain and noise figure which makes the AM1099 a useful component for applications such as 5G wireless and Ka-band satcom. Packaged in a 3mm QFN with internal 50Ω matching, the AM1099 represents a compact total PCB footprint.

Product Overview

AM1099 is a high frequency, cascadable amplifier servicing the 26 to 32 GHz frequency range. The device exhibits moderate gain and noise figure which makes the AM1099 a useful component for applications such as 5G wireless and Ka-band satcom. Packaged in a 3mm QFN with internal 50Ω matching, the AM1099 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1099.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

26 - 32

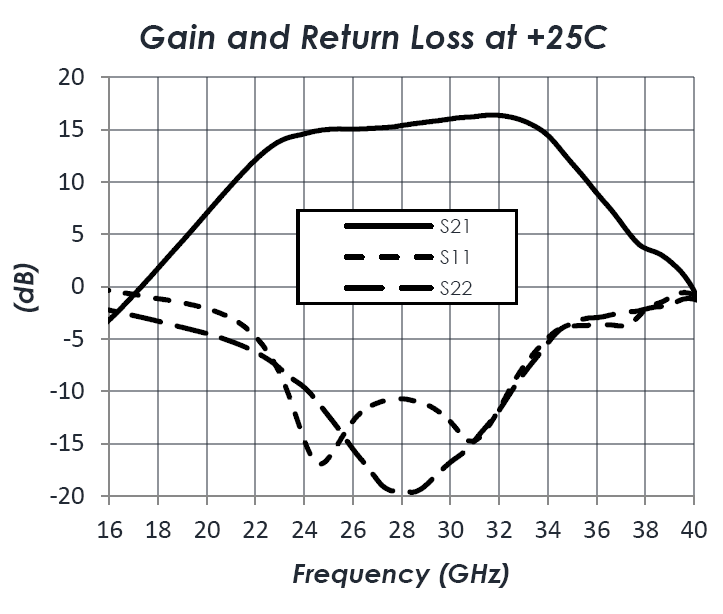

Gain (dB)

15

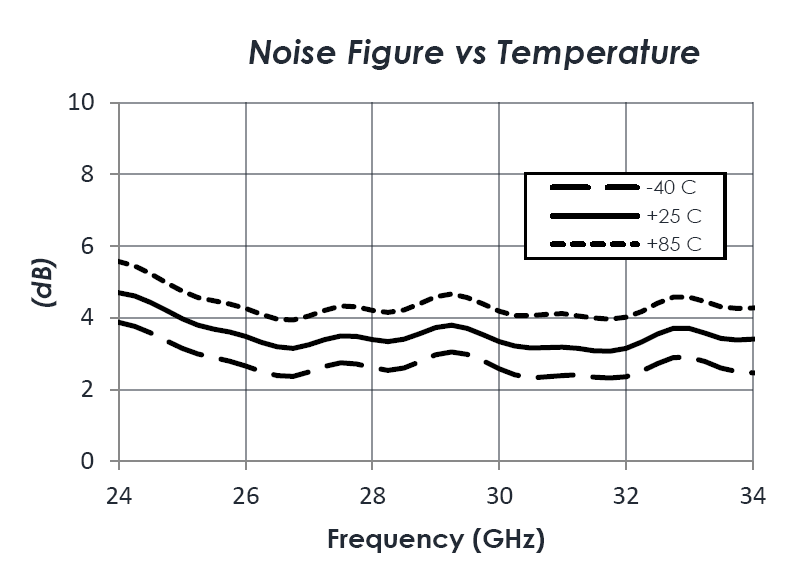

NF (dB)

3.5

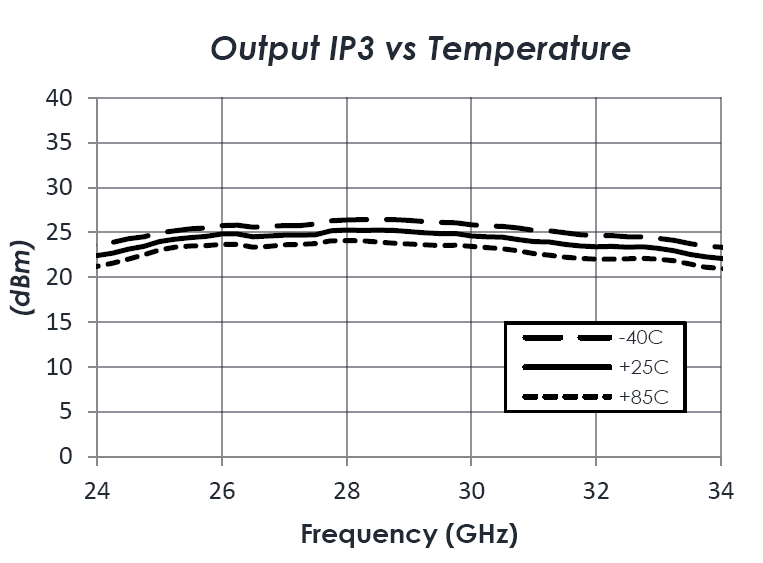

OIP3 (dBm)

25

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

14

Supply (mA)

60

Module

No

Bare Die

No



ECCN/USML: 3A001.b.2.d

Harmonized Code: 8542.33

AM1099

26 GHz to 32 GHz Gain Block


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM1099 is a high frequency, cascadable amplifier servicing the 26 to 32 GHz frequency range. The device exhibits moderate gain and noise figure which makes the AM1099 a useful component for applications such as 5G wireless and Ka-band satcom. Packaged in a 3mm QFN with internal 50Ω matching, the AM1099 represents a compact total PCB footprint.

Product Overview

AM1099 is a high frequency, cascadable amplifier servicing the 26 to 32 GHz frequency range. The device exhibits moderate gain and noise figure which makes the AM1099 a useful component for applications such as 5G wireless and Ka-band satcom. Packaged in a 3mm QFN with internal 50Ω matching, the AM1099 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1099.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

26 - 32

Gain (dB)

15

NF (dB)

3.5

OIP3 (dBm)

25

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

14

Supply (mA)

60

Module

No



ECCN: 3A001.b.2.d

Harmonized Code: 8542.33
