AM1100

2 GHz to 26.5 GHz Low Noise Amplifier


Recommended for New Designs


Product Options

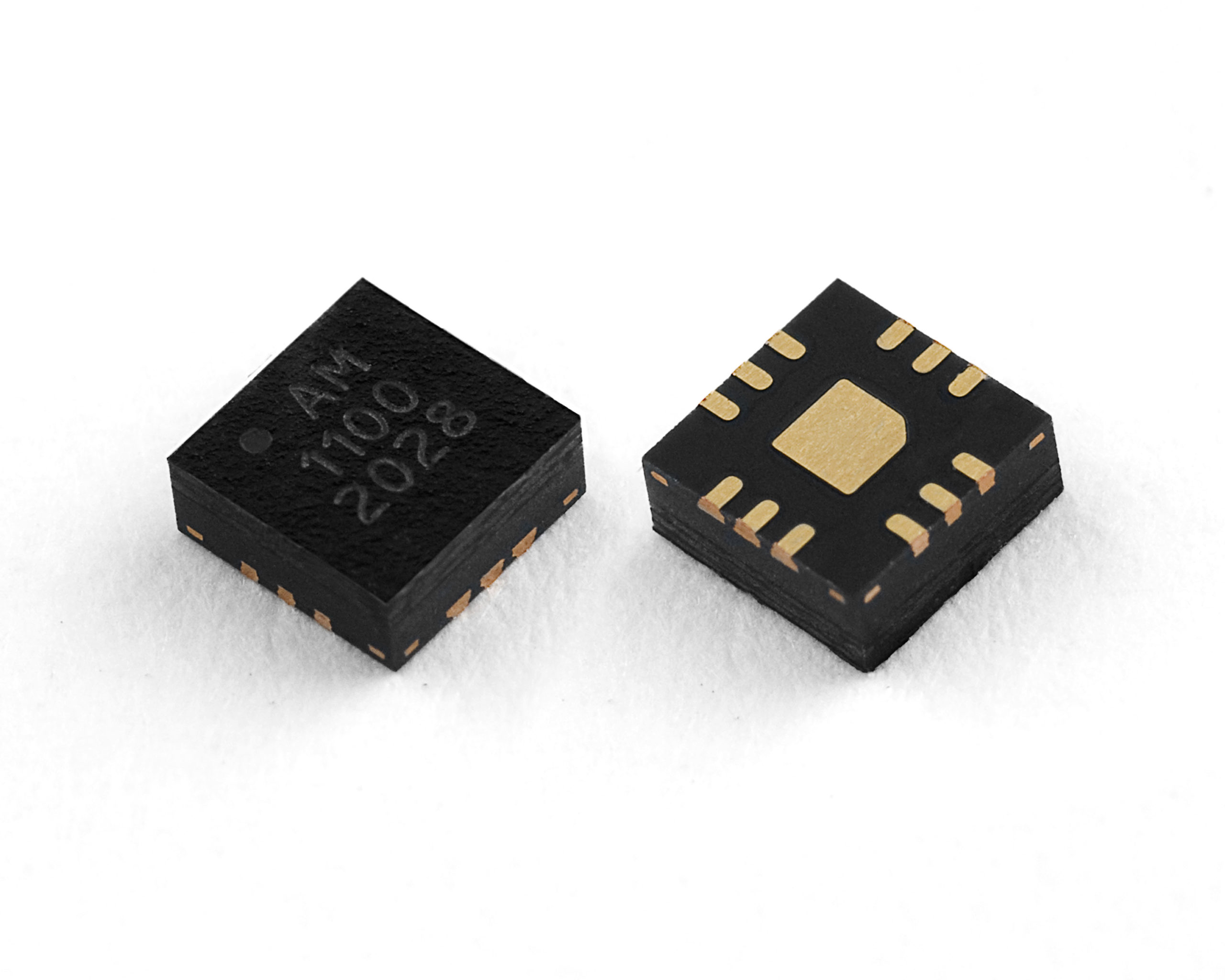

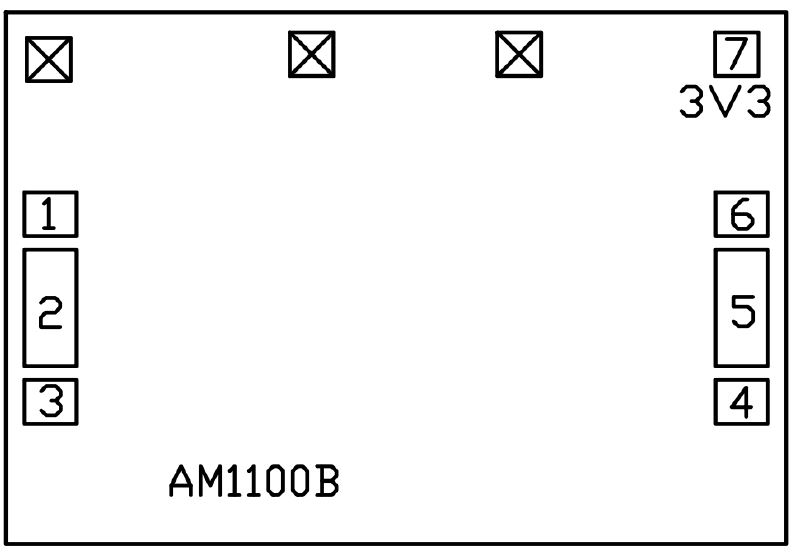

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM1100 is a wideband cascadable gain block covering the 2 GHz to 26.5 GHz frequency range. It is a low SWaP device drawing less than 100mW of power and packaged in a 3mm QFN with internal 50Ω matching. The device’s low noise figure and wideband operation makes it an excellent choice for many broadband receiver applications.

Product Overview

AM1100 is a wideband cascadable gain block covering the 2 GHz to 26.5 GHz frequency range. It is a low SWaP device drawing less than 100mW of power and packaged in a 3mm QFN with internal 50Ω matching. The device’s low noise figure and wideband operation makes it an excellent choice for many broadband receiver applications.

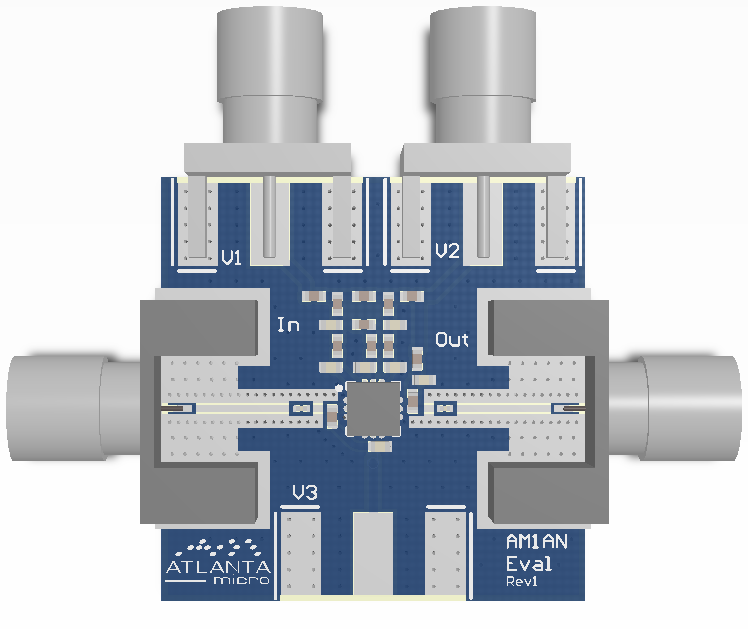

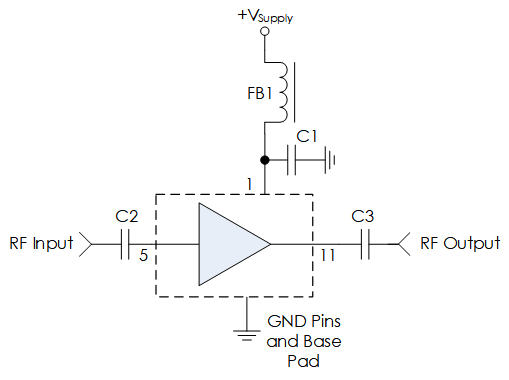

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1100.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

2 - 26.5

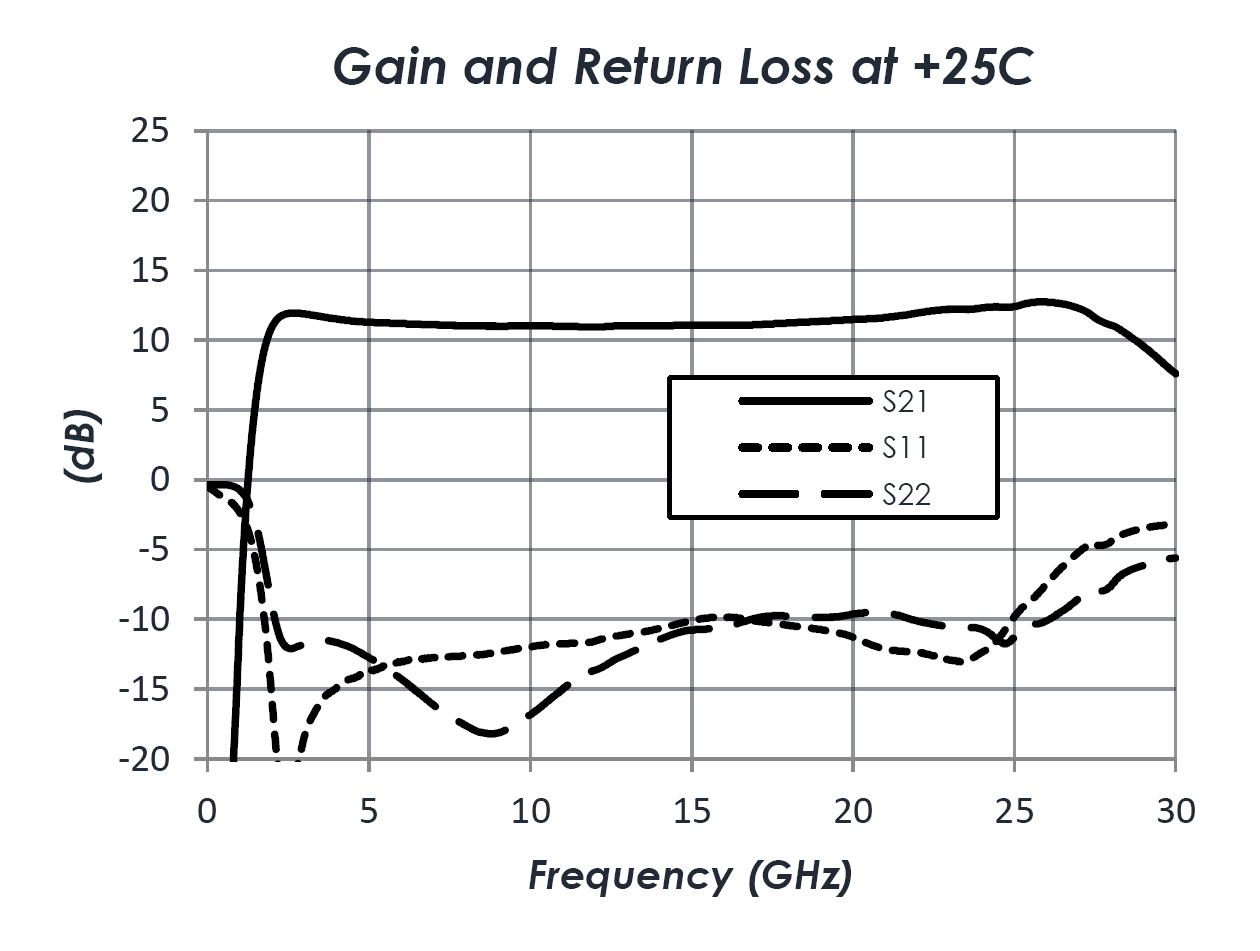

Gain (dB)

12

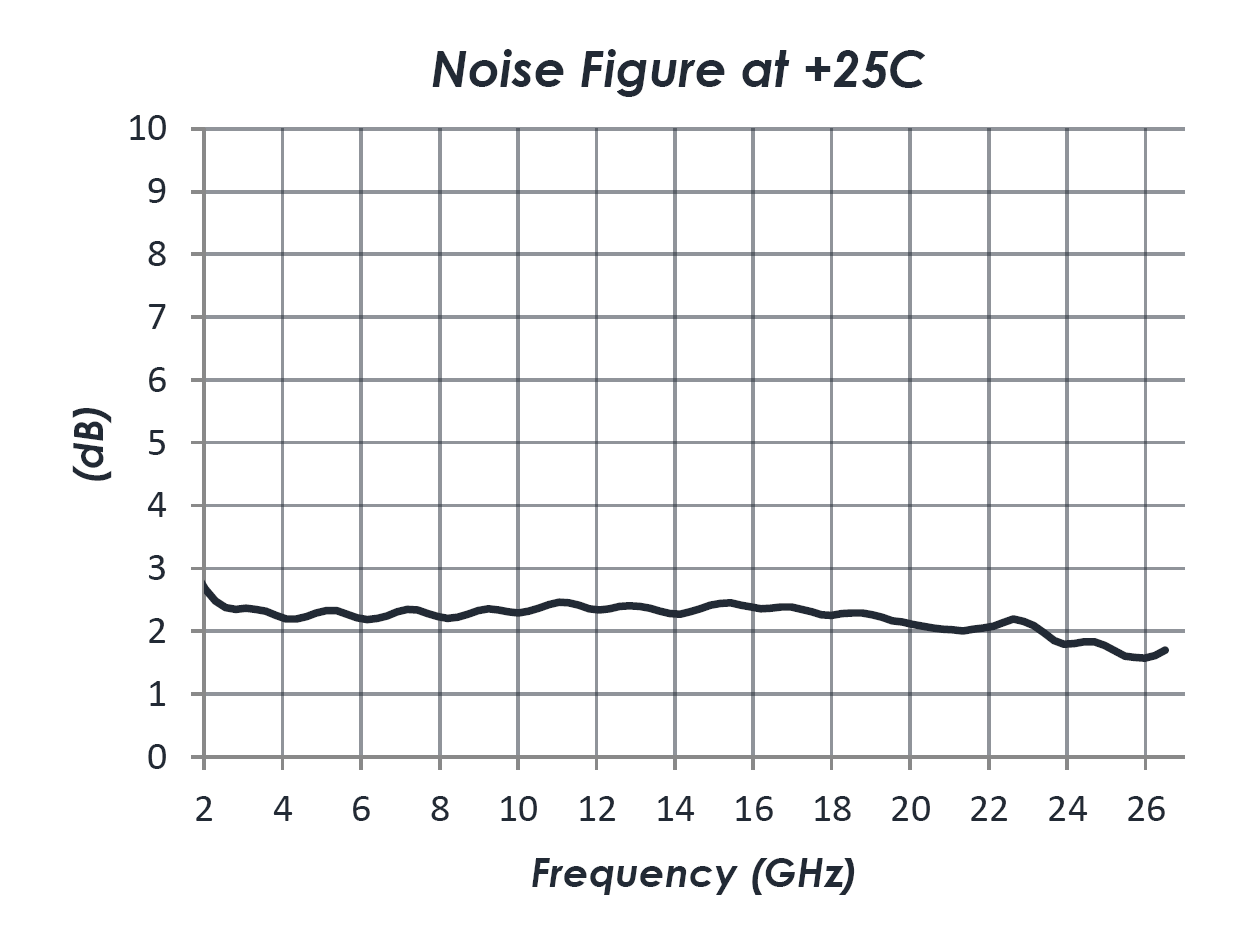

NF (dB)

2

OIP3 (dBm)

23

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

12

Supply (mA)

30

Module

No

Bare Die

No



ECCN/USML: In Process

Harmonized Code: In process

AM1100

2 GHz to 26.5 GHz Low Noise Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM1100 is a wideband cascadable gain block covering the 2 GHz to 26.5 GHz frequency range. It is a low SWaP device drawing less than 100mW of power and packaged in a 3mm QFN with internal 50Ω matching. The device’s low noise figure and wideband operation makes it an excellent choice for many broadband receiver applications.

Product Overview

AM1100 is a wideband cascadable gain block covering the 2 GHz to 26.5 GHz frequency range. It is a low SWaP device drawing less than 100mW of power and packaged in a 3mm QFN with internal 50Ω matching. The device’s low noise figure and wideband operation makes it an excellent choice for many broadband receiver applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1100.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

2 - 26.5

Gain (dB)

12

NF (dB)

2

OIP3 (dBm)

23

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

12

Supply (mA)

30

Module

No



ECCN: In Process

Harmonized Code: In process
