AM1102

DC to 22 GHz Low Noise Amplifier


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

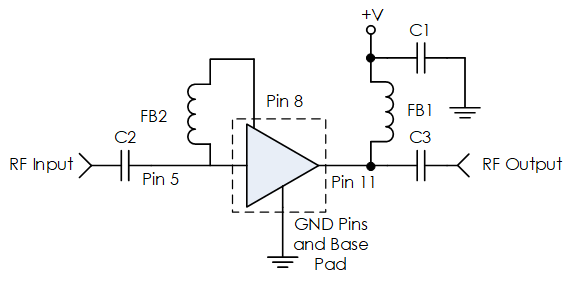

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The AM1102 performs well at frequencies near DC, and its low frequency performance is limited only by the frequency response of the input and  output bias tees present in the application circuit. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Product Overview

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The AM1102 performs well at frequencies near DC, and its low frequency performance is limited only by the frequency response of the input and  output bias tees present in the application circuit. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Product Overview

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Module includes field replaceable SMA Type K (2.9) input and output connectors in a rugged aluminum enclosure. Module also includes an input pin for DC module power through a feed-through capacitor and a corresponding ground pin connection. Module includes four mounting holes sized 4-40 that are threaded fully through from the bottom side of the module. AM1102-M has been configured for operation from 1 MHz to 22 GHz and is internally DC blocked.

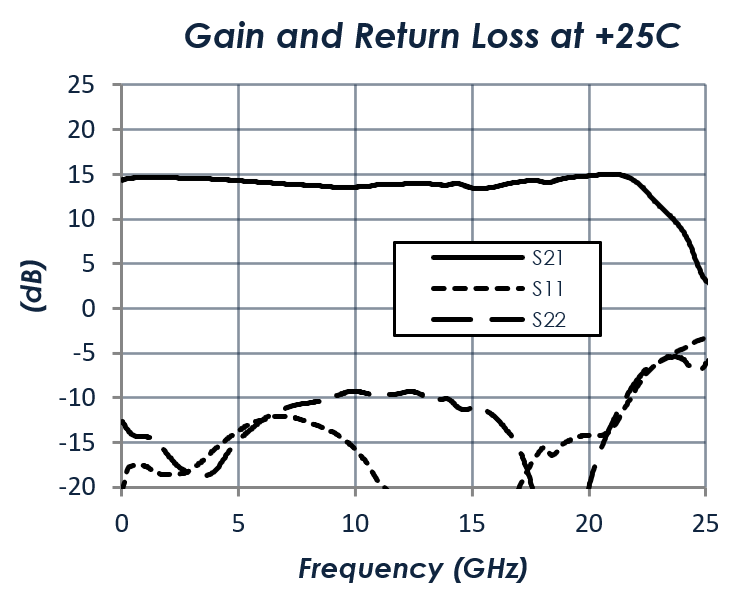

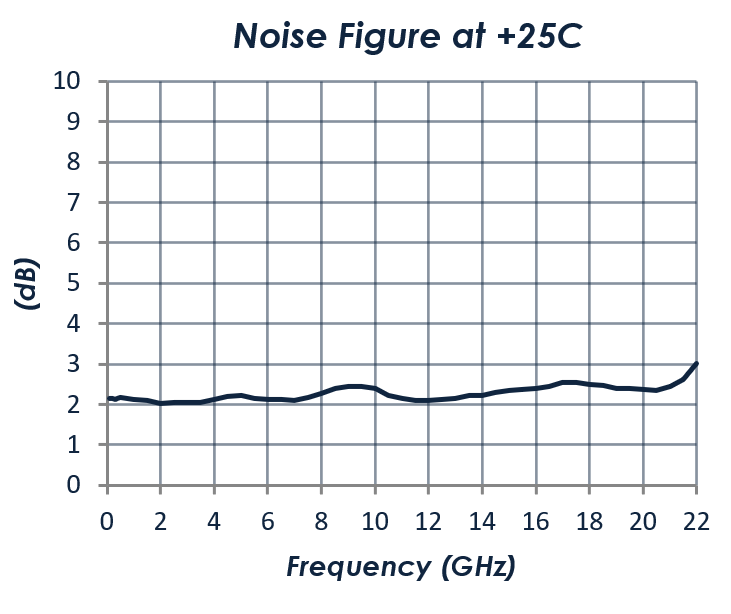

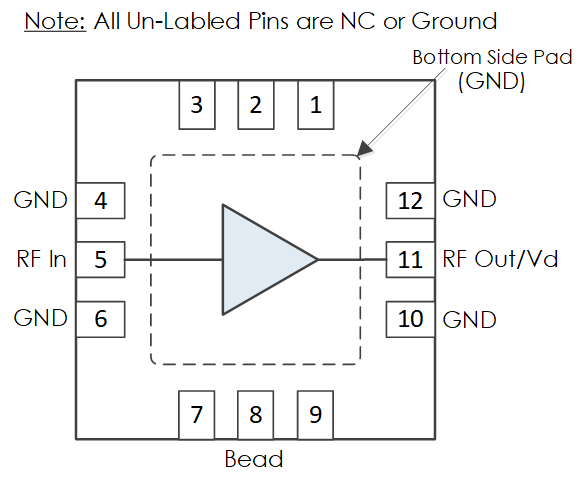

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

DC - 22

Gain (dB)

14

NF (dB)

2.0

OIP3 (dBm)

26

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

15

Supply (mA)

48

Module

Yes

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33

AM1102

DC to 22 GHz Low Noise Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The AM1102 performs well at frequencies near DC, and its low frequency performance is limited only by the frequency response of the input and  output bias tees present in the application circuit. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Product Overview

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The AM1102 performs well at frequencies near DC, and its low frequency performance is limited only by the frequency response of the input and  output bias tees present in the application circuit. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Product Overview

AM1102 is a broadband, cascadable amplifier operating from DC to 22 GHz. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1102 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, and drawing less than 160mW of power, the AM1102 is perfectly suited for low SWaP applications.

Module includes field replaceable SMA Type K (2.9) input and output connectors in a rugged aluminum enclosure. Module also includes an input pin for DC module power through a feed-through capacitor and a corresponding ground pin connection. Module includes four mounting holes sized 4-40 that are threaded fully through from the bottom side of the module. AM1102-M has been configured for operation from 1 MHz to 22 GHz and is internally DC blocked.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

DC - 22

Gain (dB)

14

NF (dB)

2.0

OIP3 (dBm)

26

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

15

Supply (mA)

48

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
