AM1127

20 MHz to 6 GHz High Linearity Gain Block


Recommended for New Designs


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1127 is a high dynamic range cascadable amplifier operating over the 20 MHz to 6.0 GHz frequency range. The device exhibits exceptional second and third order intercept performance as well as high P1dB and low noise figure. With only the need for one positive supply rail and packaged in a 4mm QFN, the AM1127 represents a compact total PCB footprint. Its high gain and linearity make the AM1127 an excellent choice for a receiver front end or transmitter backend.

Product Overview

The AM1127 is a high dynamic range cascadable amplifier operating over the 20 MHz to 6.0 GHz frequency range. The device exhibits exceptional second and third order intercept performance as well as high P1dB and low noise figure. With only the need for one positive supply rail and packaged in a 4mm QFN, the AM1127 represents a compact total PCB footprint. Its high gain and linearity make the AM1127 an excellent choice for a receiver front end or transmitter backend.

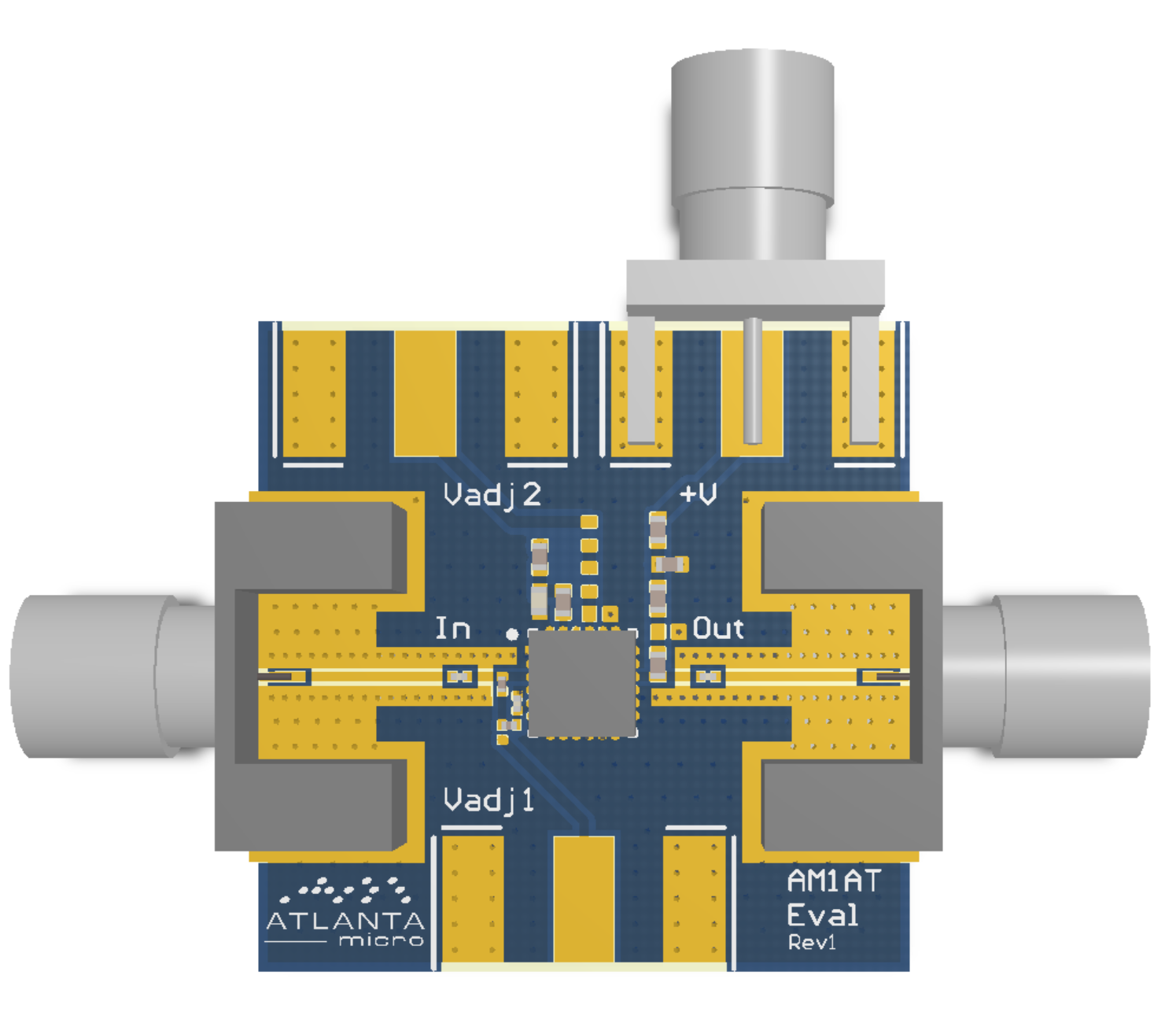

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1127.

Product Overview

The AM1127 is a high dynamic range cascadable amplifier operating over the 20 MHz to 6.0 GHz frequency range. The device exhibits exceptional second and third order intercept performance as well as high P1dB and low noise figure. With only the need for one positive supply rail and packaged in a 4mm QFN, the AM1127 represents a compact total PCB footprint. Its high gain and linearity make the AM1127 an excellent choice for a receiver front end or transmitter backend.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Driver Amplifier

Freq. (GHz)

0.02 - 6

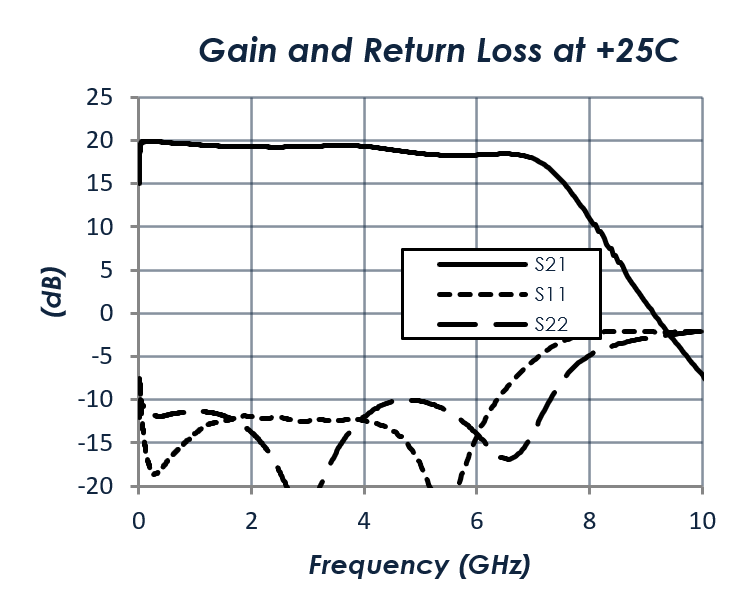

Gain (dB)

19

NF (dB)

3.5

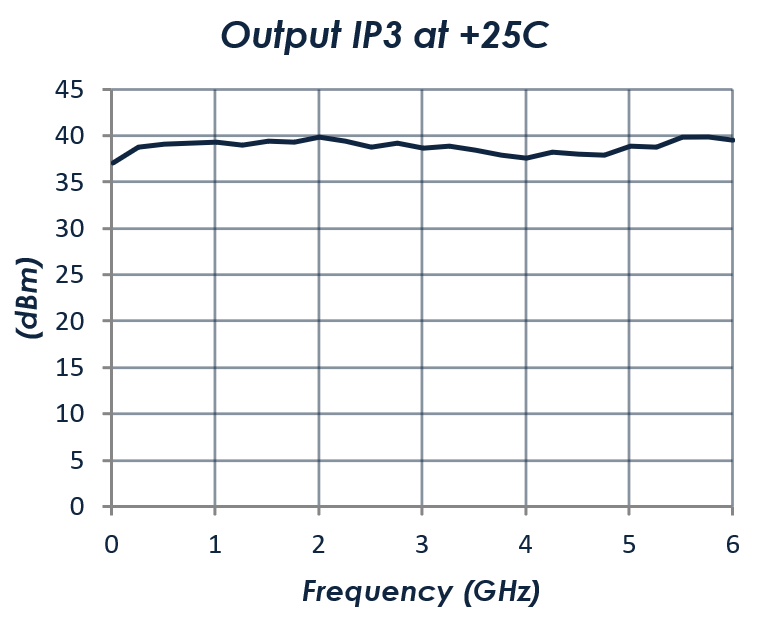

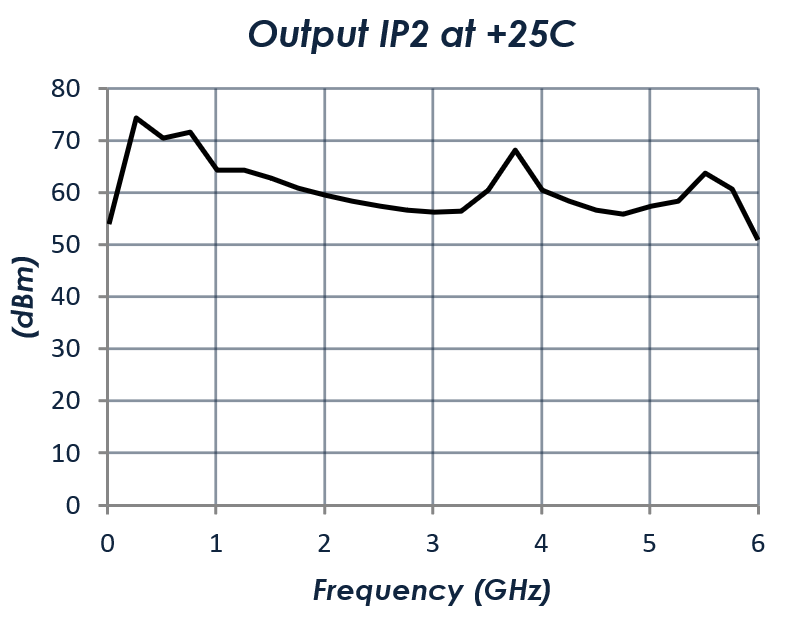

OIP3 (dBm)

39

Surface Mount

4mm

Supply (+V)

3.0 / 6.0

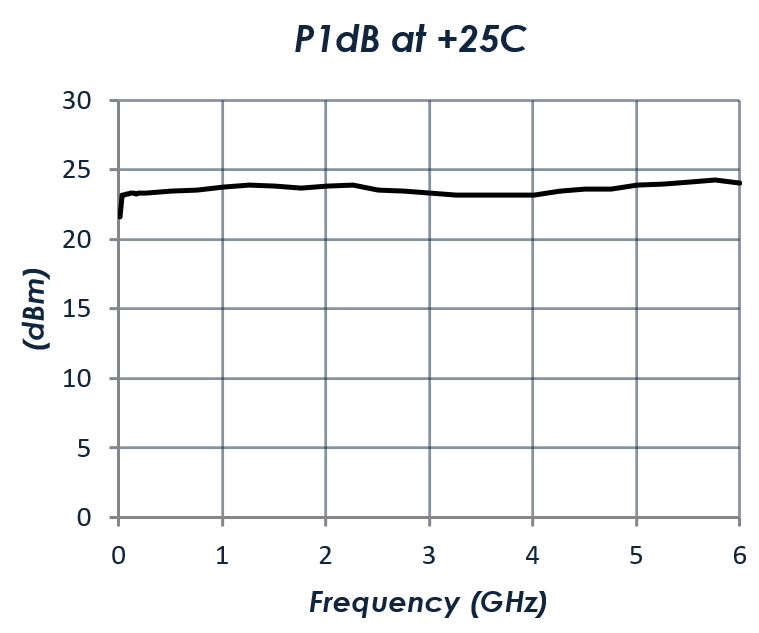

P1dB (dBm)

16 / 23

Supply (mA)

140 / 300

Module

Yes

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33
