AM1134

6 GHz to 26.5 GHz Low Noise Gain Block


Recommended for New Designs


Product Options

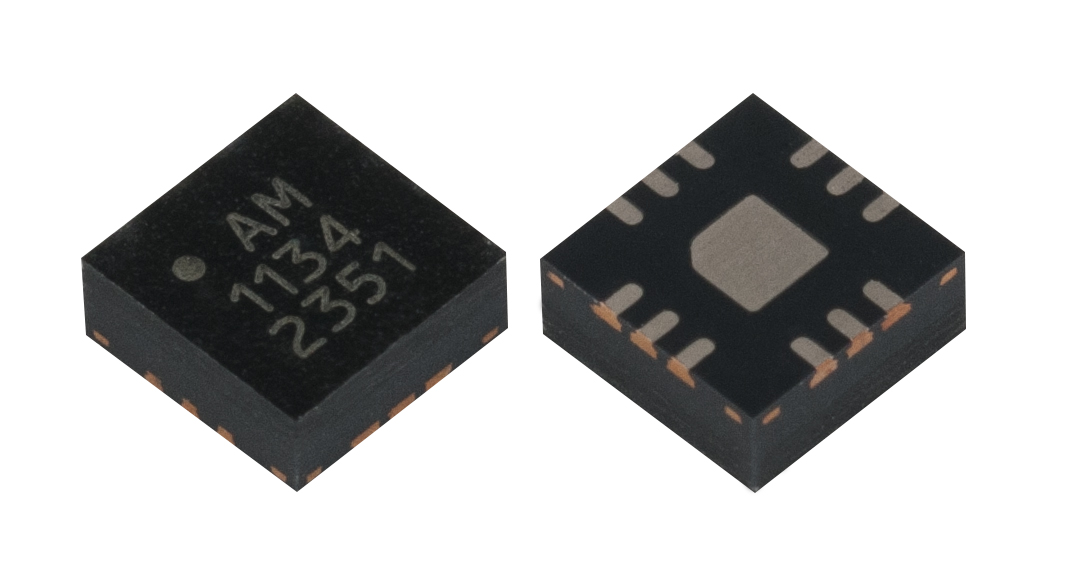

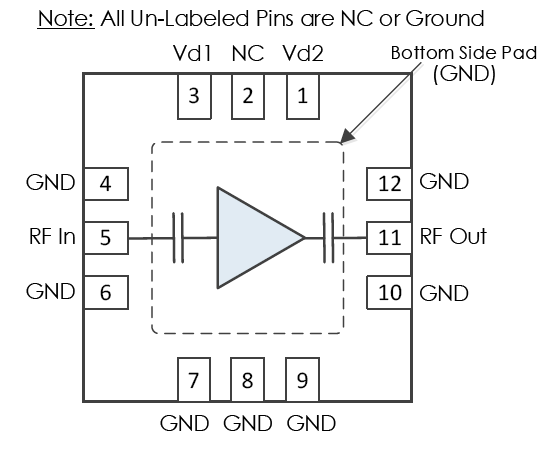

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1134 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1134 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, the AM1134 represents a compact total PCB footprint.



Product Overview

AM1134 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1134 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, the AM1134 represents a compact total PCB footprint.

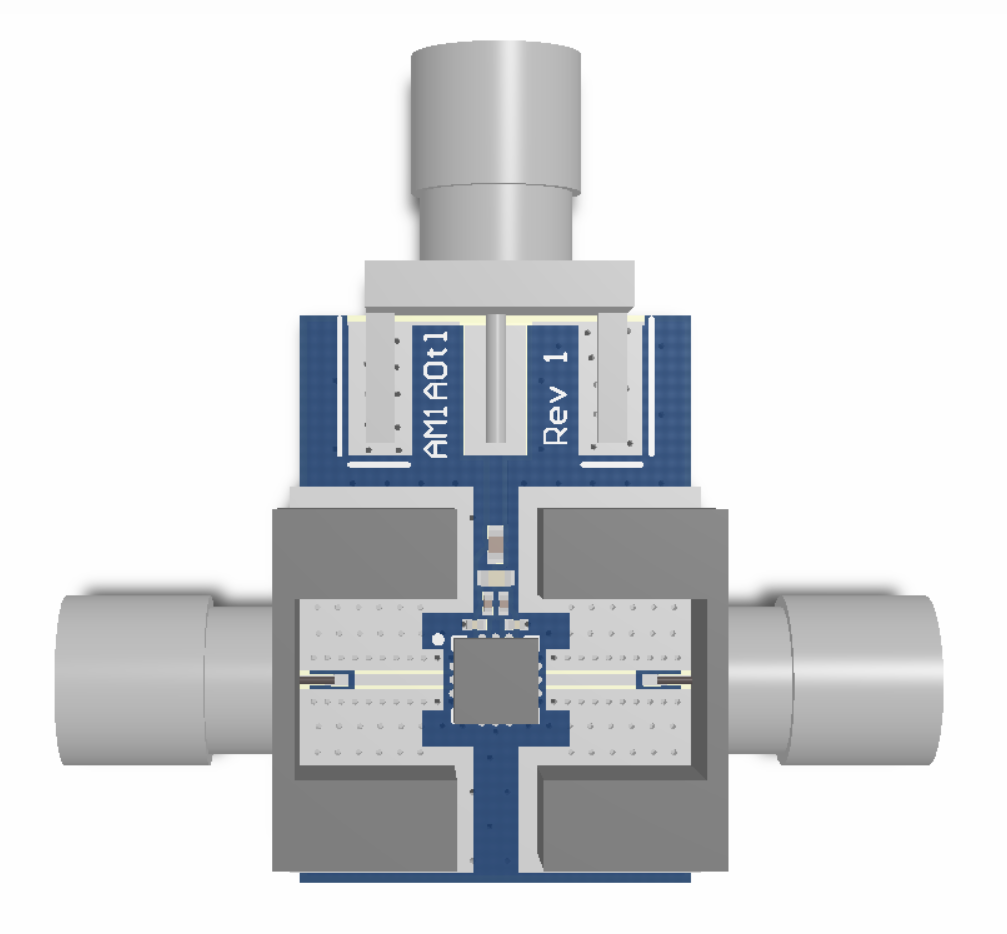

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1134.

Product Overview

AM1134 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits moderate gain and excellent noise figure over a wide frequency range which makes the AM1134 a useful component for many broadband applications. Packaged in a 3mm QFN with internal 50Ω matching, the AM1134 represents a compact total PCB footprint.

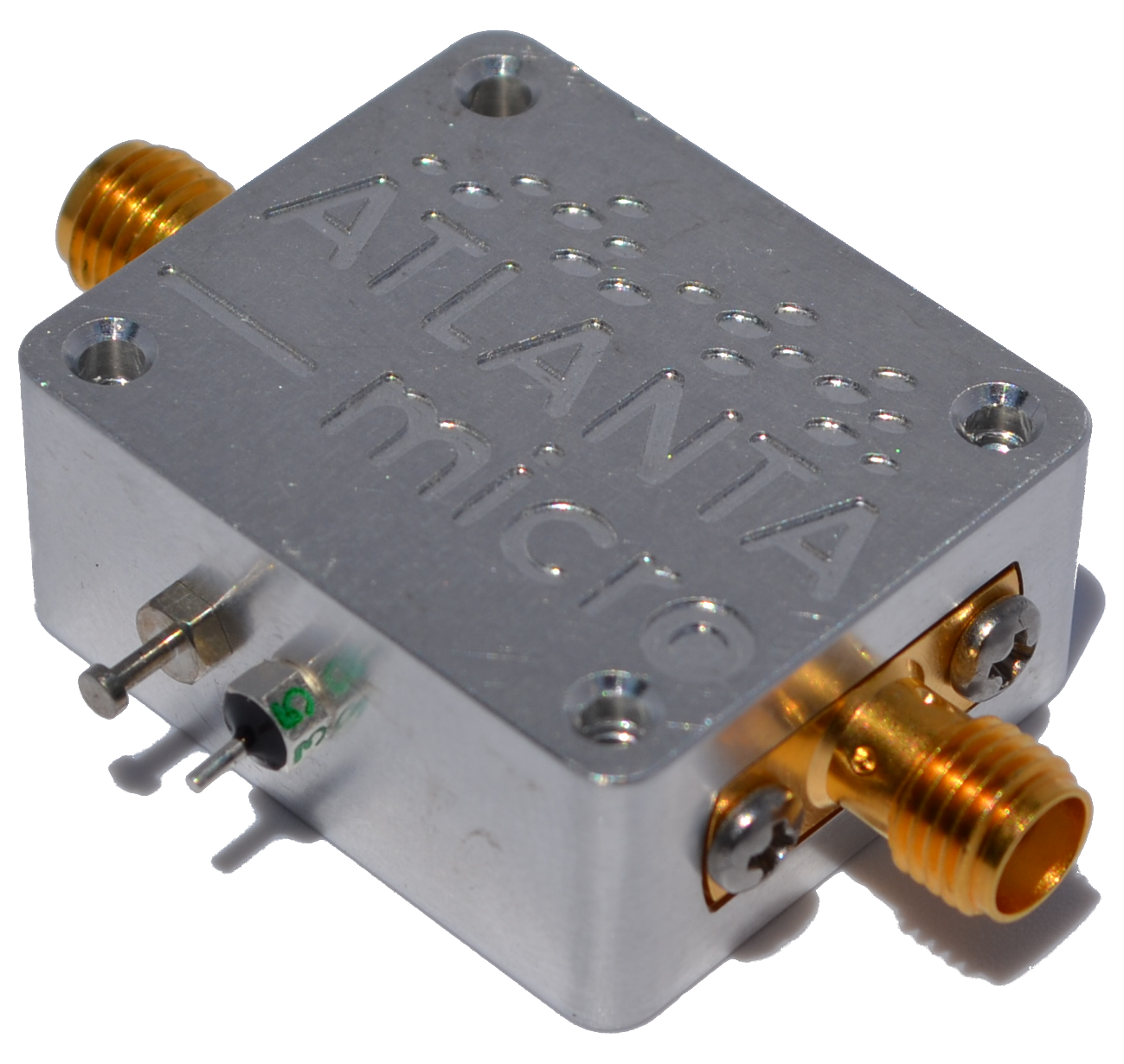

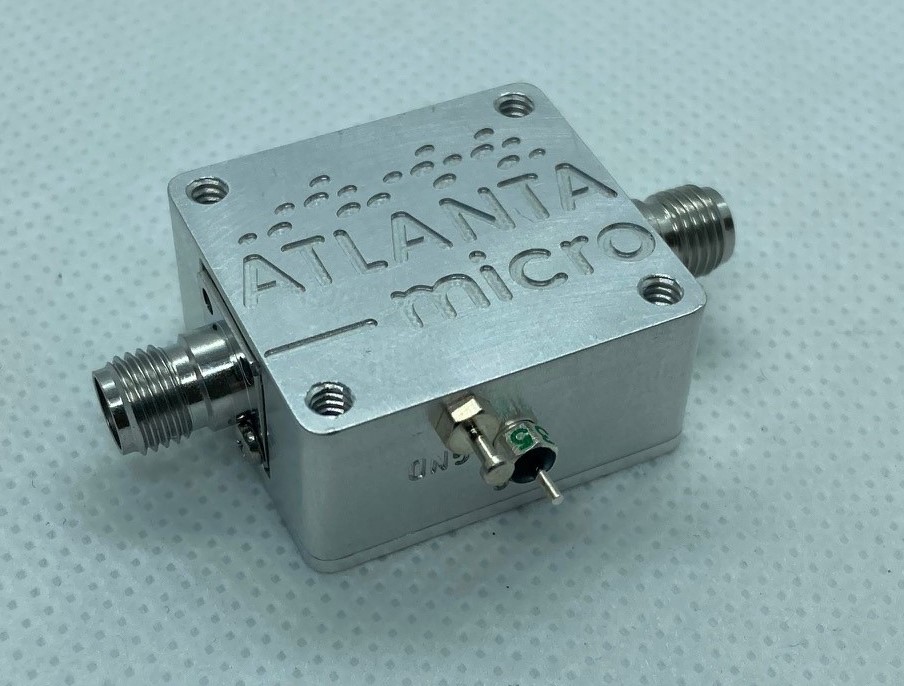

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Low Noise Gain Block

Freq. (GHz)

6 - 26.5

Gain (dB)

16

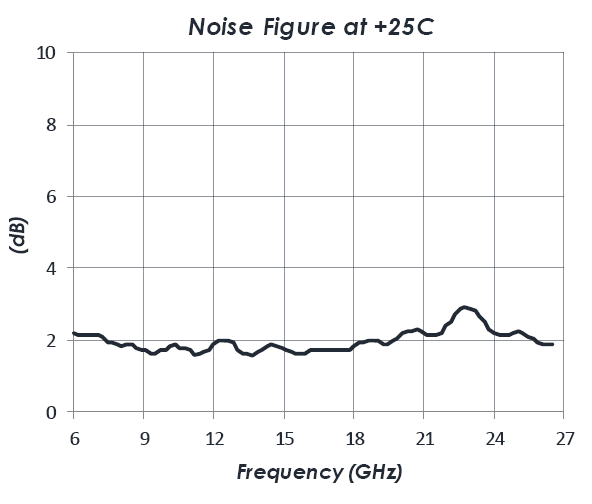

NF (dB)

2

OIP3 (dBm)

25

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

15

Supply (mA)

126

Module

Yes

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33
