Product Overview

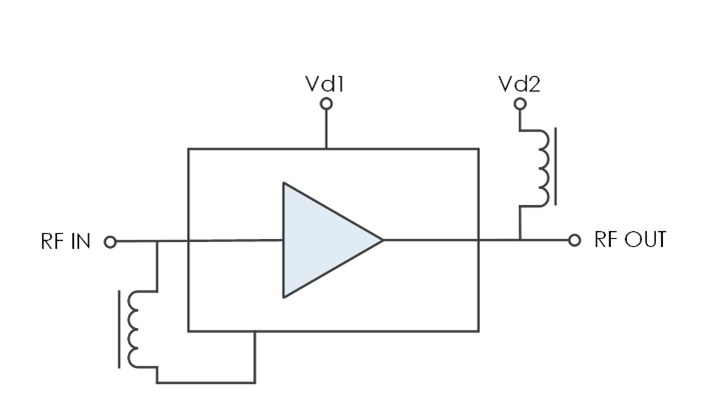

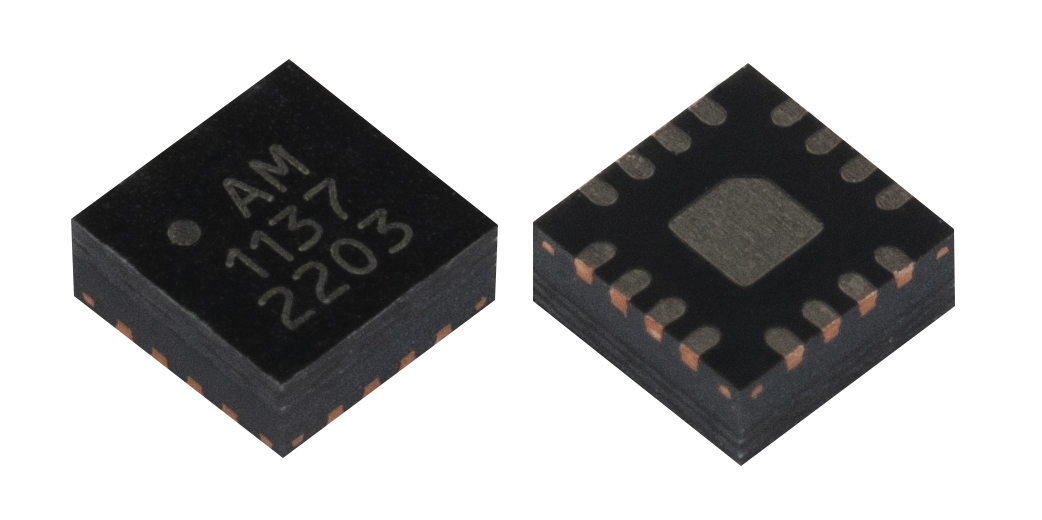

AM1137 is a wideband, cascadable amplifier that covers the 10 MHz to 18 GHz frequency range. The device exhibits strong linearity and output power handling along with high gain and moderate noise figure across its frequency range. The AM1137 performs well down to 10 MHz and its low frequency performance is limited only by the frequency response of the input and output bias tees present in the application circuit. With internal 50Ω matching and packaged in a 3mm QFN, the AM1137 represents a compact total PCB footprint.
Product Overview
AM1137 is a wideband, cascadable amplifier that covers the 10 MHz to 18 GHz frequency range. The device exhibits strong linearity and output power handling along with high gain and moderate noise figure across its frequency range. The AM1137 performs well down to 10 MHz and its low frequency performance is limited only by the frequency response of the input and output bias tees present in the application circuit. With internal 50Ω matching and packaged in a 3mm QFN, the AM1137 represents a compact total PCB footprint.

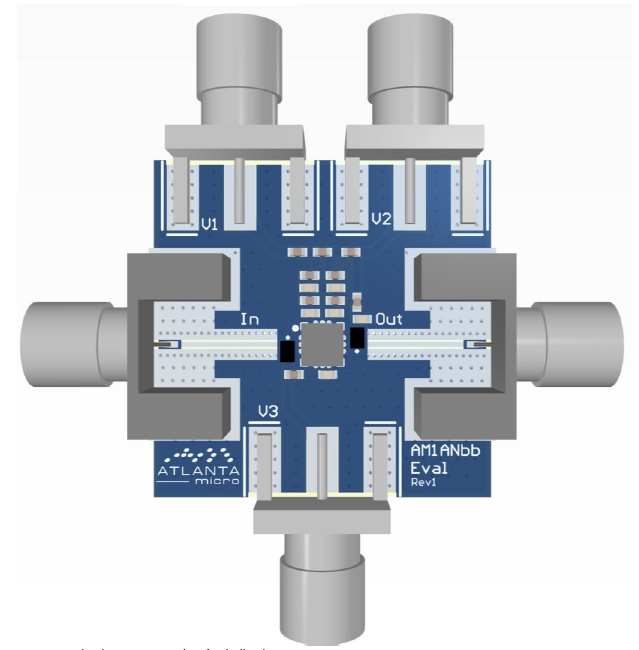

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1137.
