AM1141

1.7 GHz to 18 GHz Bypassable Gain Block


Recommended for New Designs


Product Options

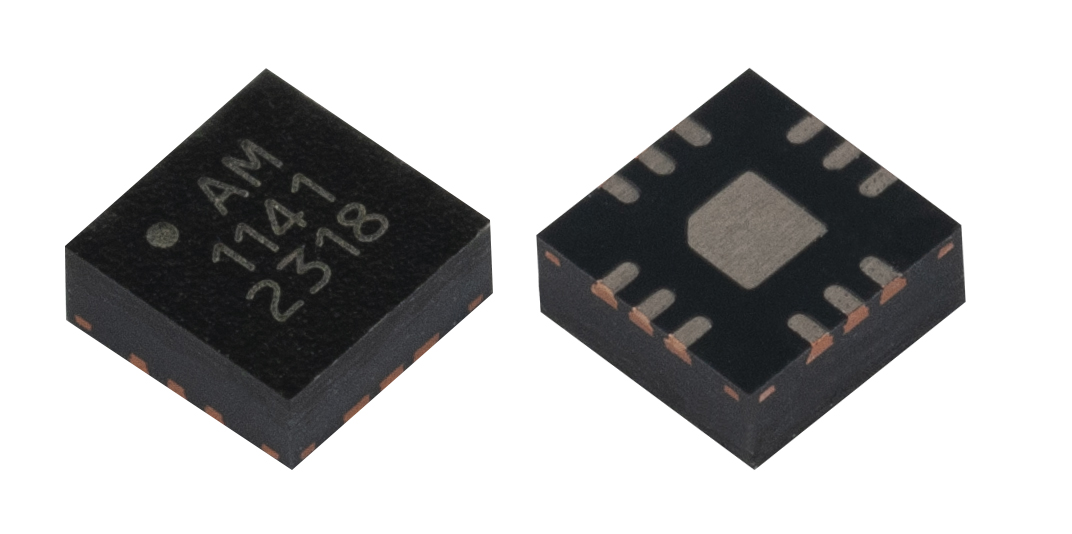

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

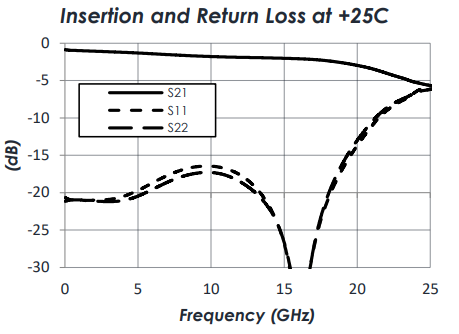

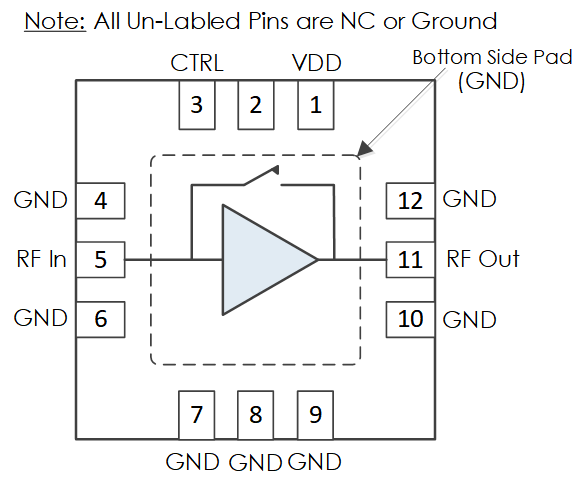

AM1141 is a wideband device consisting of a low noise amplifier integrated with a low-loss, low-power amplifier bypass path. The amplifier covers the 1.7 GHz to 18 GHz frequency band with moderate gain, low noise figure, and good intermodulation performance. The integrated bypass path ranges from DC to 20 GHz with low insertion loss and high linearity. Packaged in a 3mm QFN with internal 50Ω matching, the AM1141 is a dramatic size reduction over a discrete implementation of a bypassable amplifier and provides a compact solution for demanding low-SWaP applications.



Product Overview

AM1141 is a wideband device consisting of a low noise amplifier integrated with a low-loss, low-power amplifier bypass path. The amplifier covers the 1.7 GHz to 18 GHz frequency band with moderate gain, low noise figure, and good intermodulation performance. The integrated bypass path ranges from DC to 20 GHz with low insertion loss and high linearity. Packaged in a 3mm QFN with internal 50Ω matching, the AM1141 is a dramatic size reduction over a discrete implementation of a bypassable amplifier and provides a compact solution for demanding low-SWaP applications.

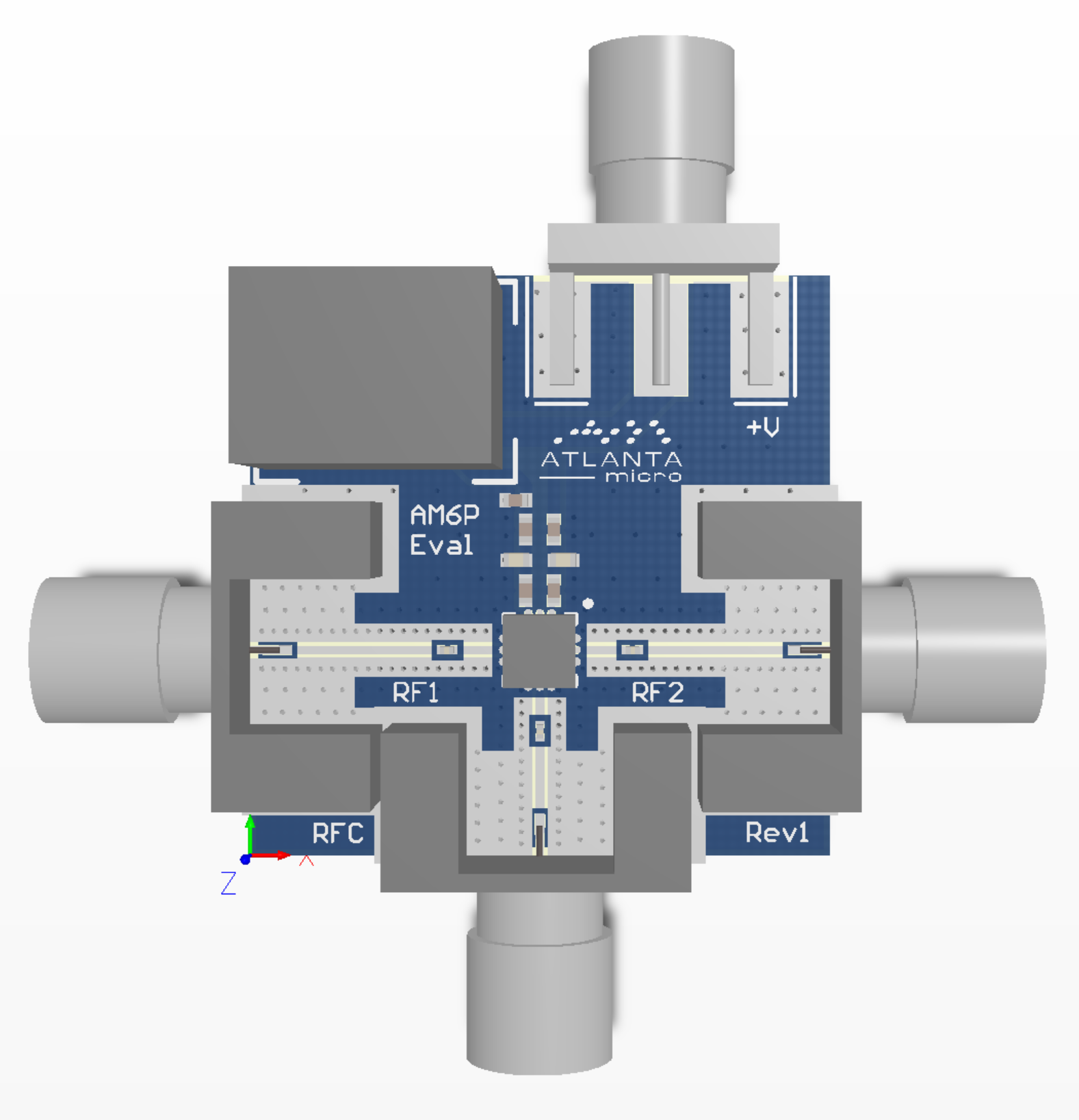

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM1141 evaluation board also includes DIP switch for control of bypass function. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM1141.
Note: Connector on bottom side of eval named “RFC” will not be installed on AM1141 evaluation board.

Specifications

Function

Bypassable Amplifier

Freq. (GHz)

1.7 - 18

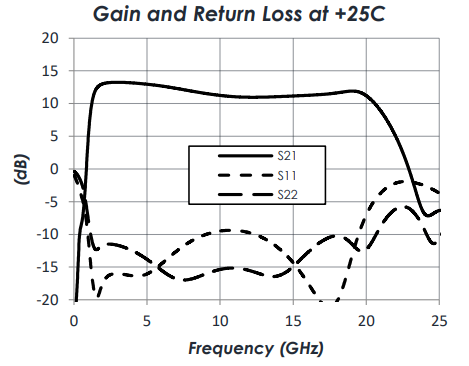

Gain (dB)

12

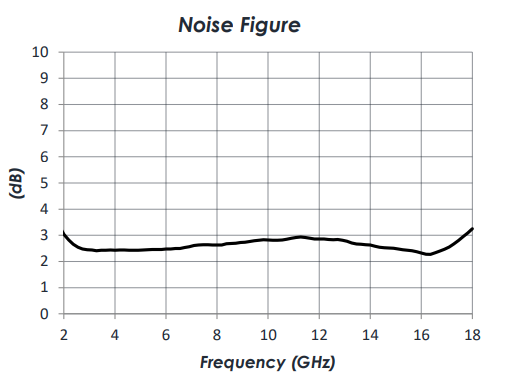

NF (dB)

2.5

OIP3 (dBm)

26

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

14

Supply (mA)

2 / 48

Module

No

Bare Die

No



ECCN/USML: EAR99

Harmonized Code: 8542.33
