AtlantaMicro

AM1149

Broadband Gain Equalizing Amplifier


Recommended for New Designs


Product Options

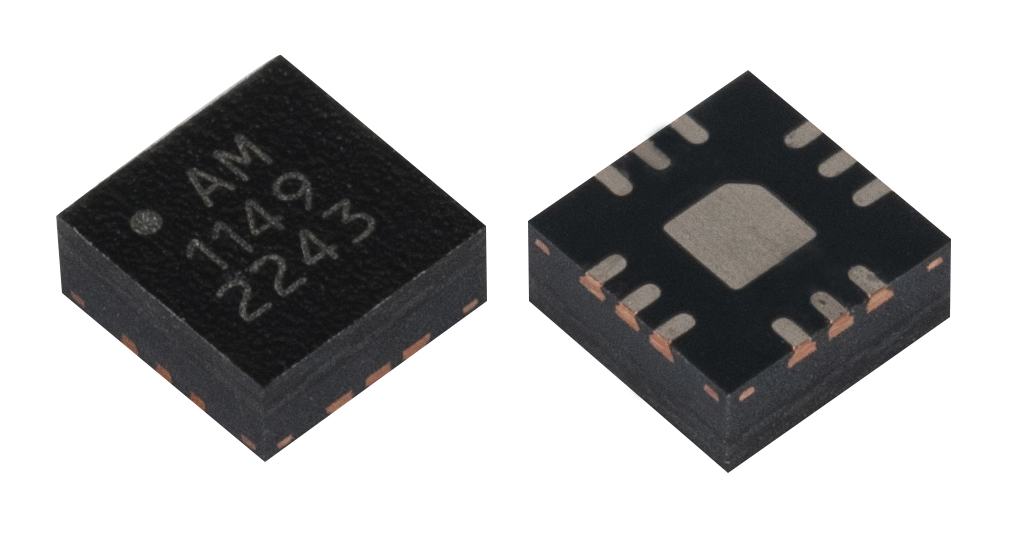

Surface Mount 3mm x 3mm QFN

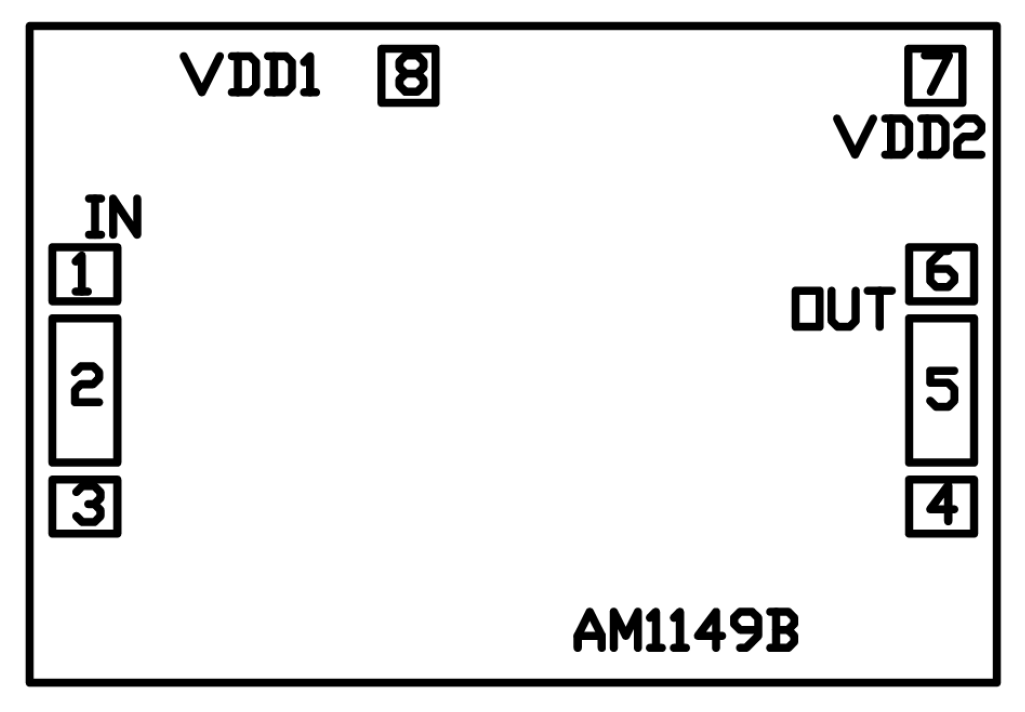

Bare Die 1.34mm x 0.91mm
Connectorized Evaluation Board

Product Overview

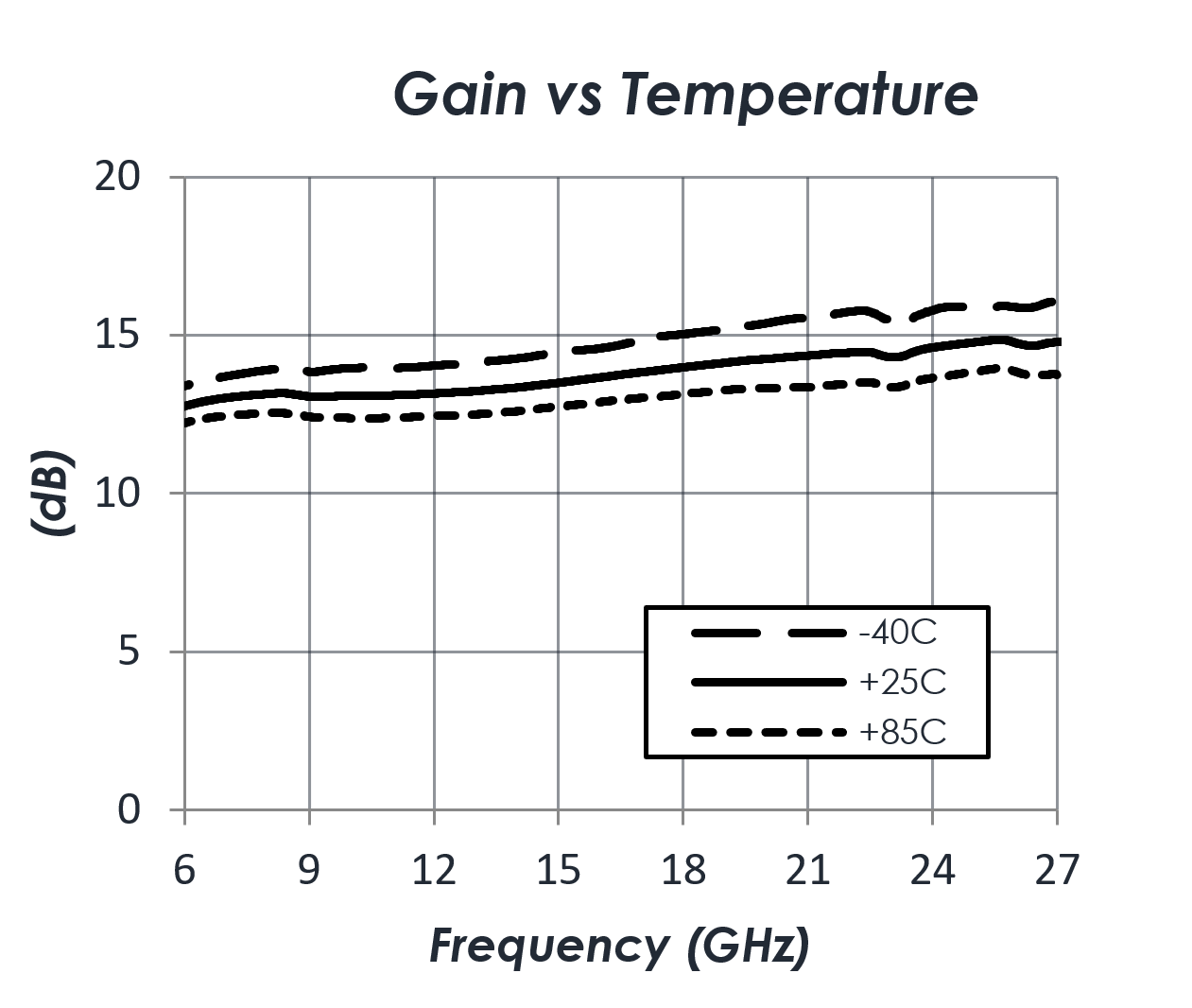

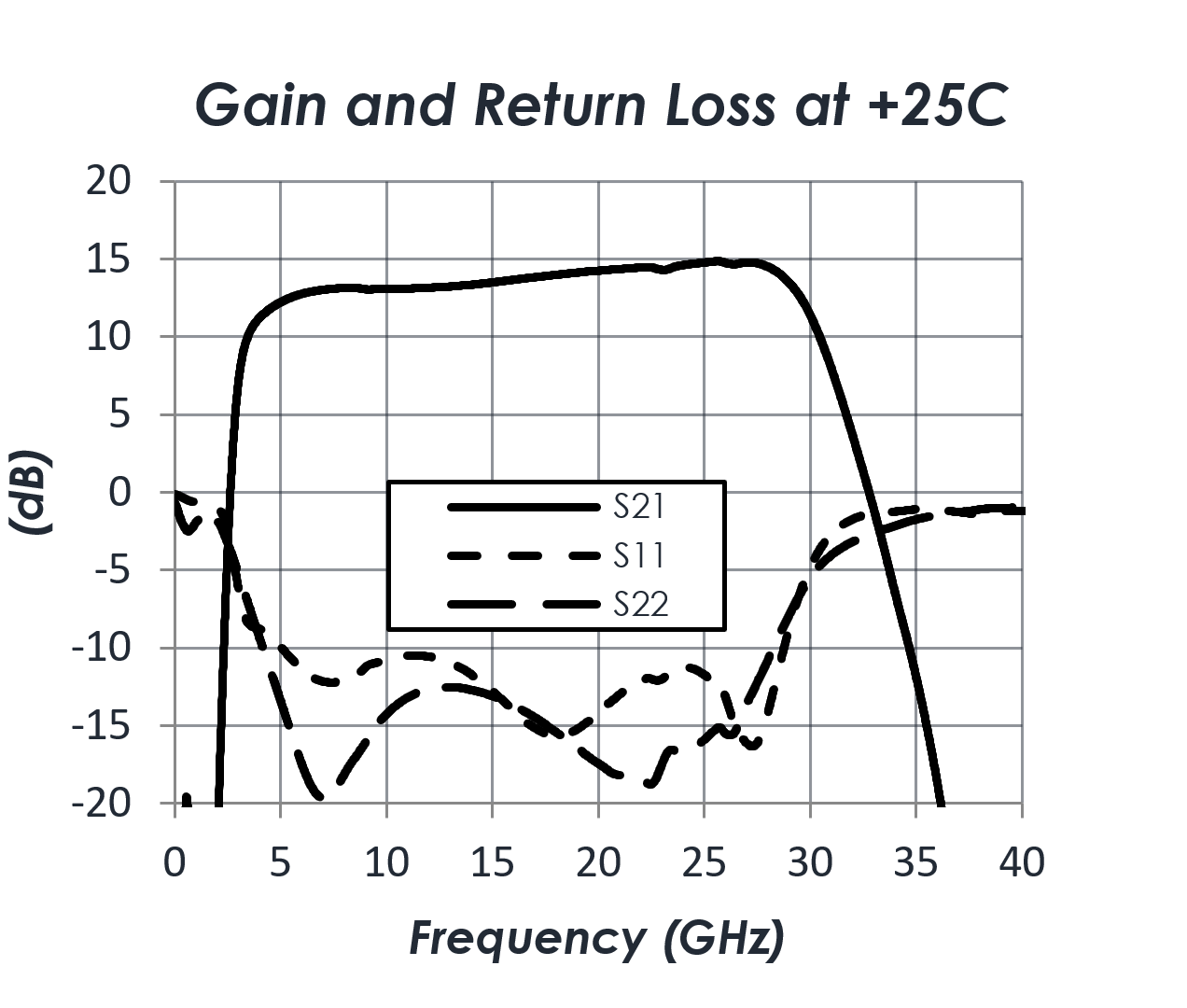

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

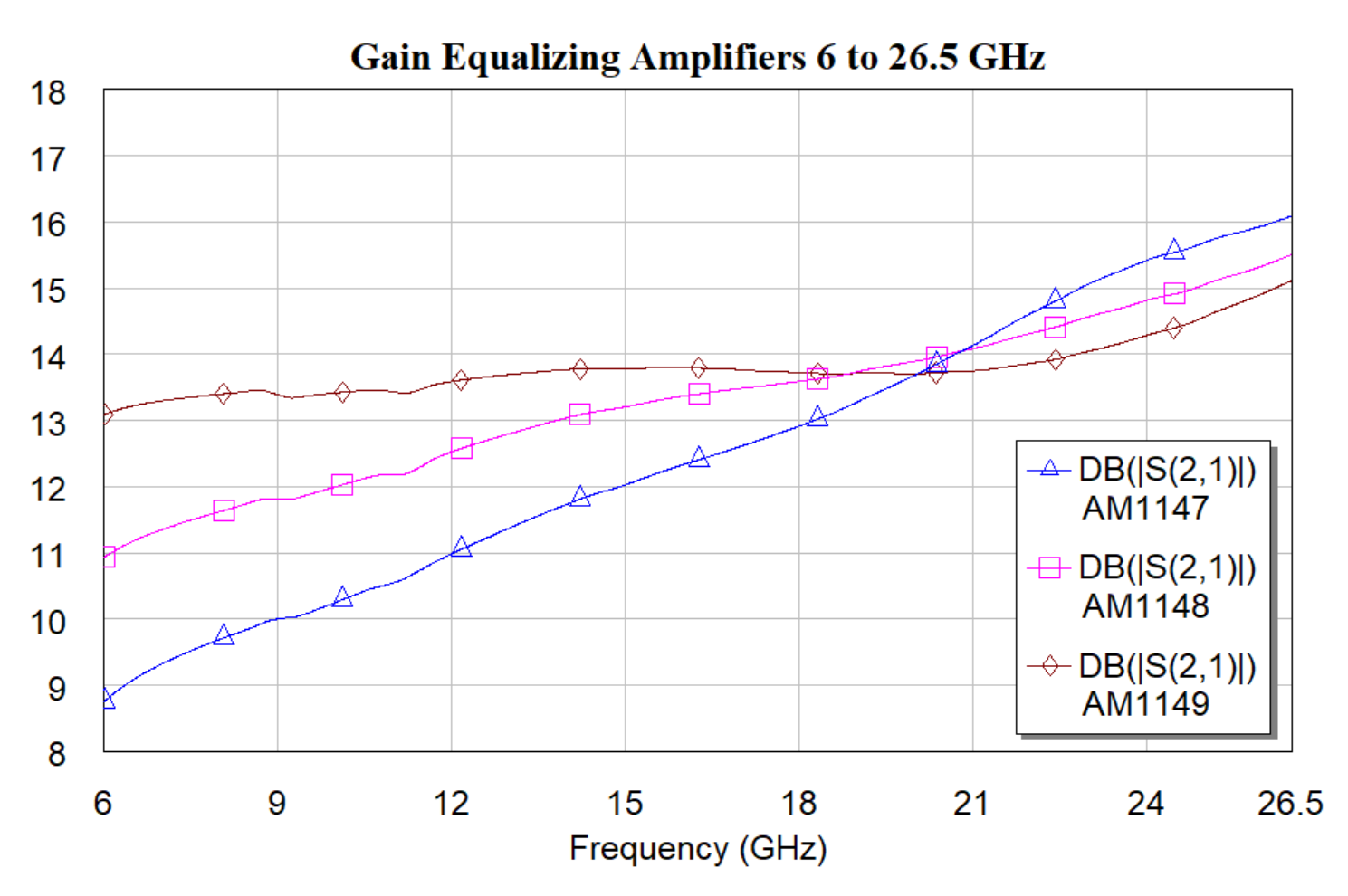

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.



Product Overview

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

AM1149-D is available only in Gel-Paks of QTY 25.

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.



Product Overview

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1149.

Specifications

Function

Gain Equalizing Amplifier

Freq. (GHz)

6 - 26.5

Gain (dB)

14.5

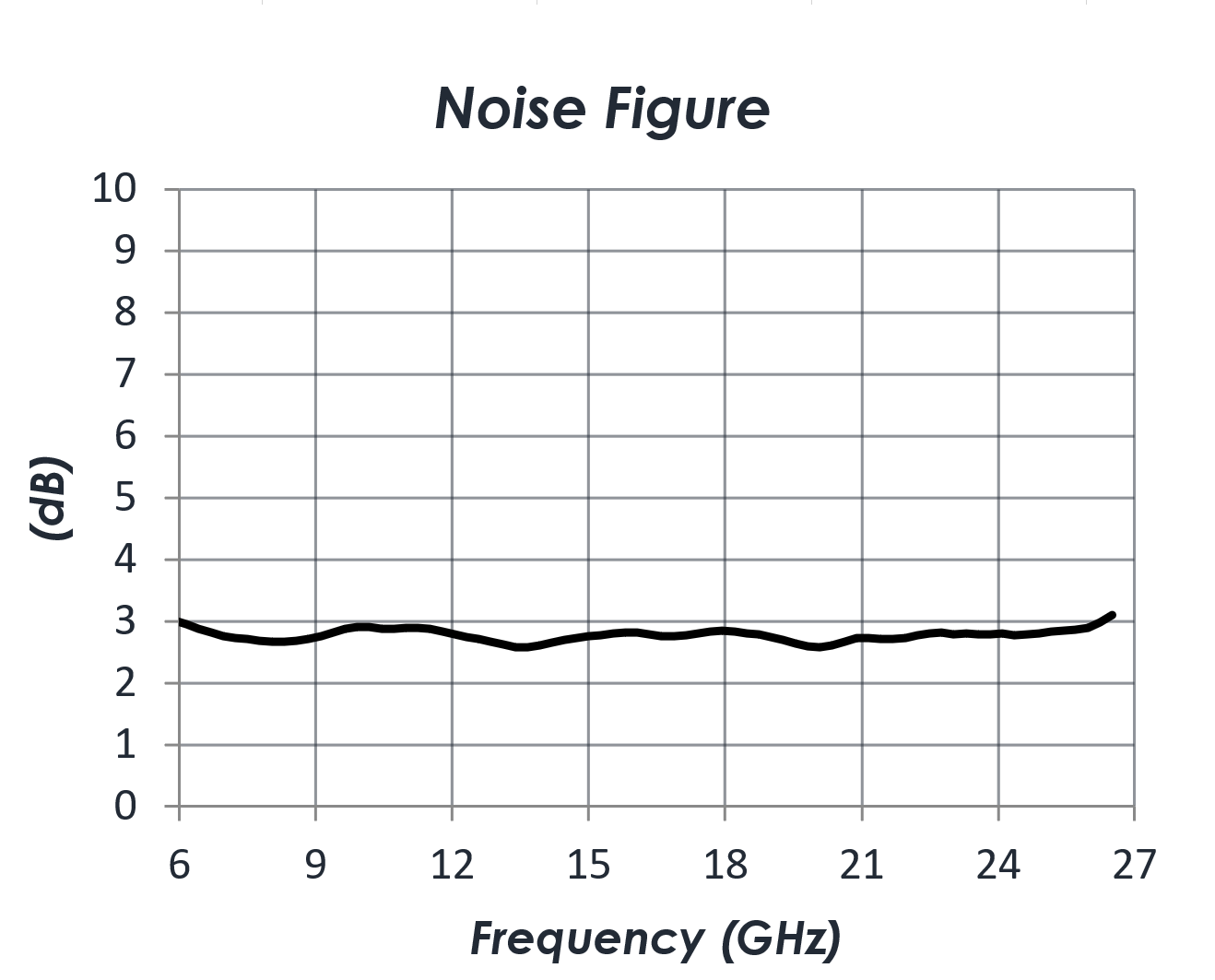

NF (dB)

2.8

OIP3 (dBm)

25

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

12

Supply (mA)

91

Module

No

Bare Die

Yes



ECCN/USML: EAR99

Harmonized Code: 8542.33

AM1149

Broadband Gain Equalizing Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Bare Die 1.34mm x 0.91mm
Connectorized Evaluation Board

Product Overview

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.



Product Overview

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

AM1149-D is available only in Gel-Paks of QTY 25.

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.



Product Overview

AM1149 is a wideband, cascadable amplifier servicing the 6 to 26.5 GHz frequency range. The device exhibits low gain at the lower frequencies ascending to moderate gain at the higher frequencies. The increasing gain across frequency makes the AM1149 an ideal solution to equalize gain/insertion loss across an RF system. Combining both gain and equalization while packaged in a 3mm QFN with internal 50Ω matching, the AM1149 is a small form-factor solution that can enable low SWaP applications.

The AM1149 is one in a family of gain equalizing amplifiers offered from Atlanta Micro covering the 6 GHz to 26 GHz frequency range with variable slope and gain parameters. This family of parts is pin compatible with each other allowing swapping of the amplifiers to optimize system performance when needing more or less gain versus frequency. This family of gain equalizing amplifiers includes the AM1148 and AM1148.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1149.

Specifications

Function

Gain Equalizing Amplifier

Freq. (GHz)

6 - 26.5

Gain (dB)

14.5

NF (dB)

2.8

OIP3 (dBm)

25

Surface Mount

3mm

Supply (+V)

3.3

P1dB (dBm)

12

Supply (mA)

91

Module

No



ECCN: EAR99

Harmonized Code: 8542.33
