Product Overview

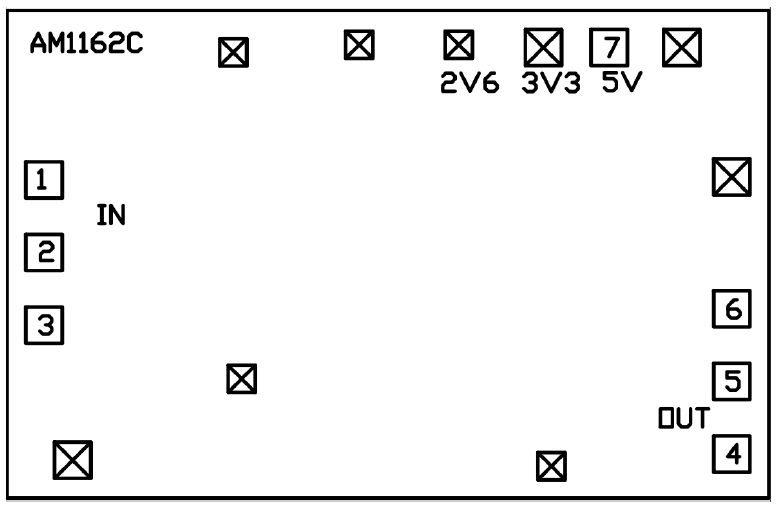

AM1162-D is a wideband, cascadable amplifier servicing the 24 to 40 GHz frequency range. The device exhibits high gain and excellent noise figure using a single supply at 5V and 71mA. The low noise figure and high gain in conjunction with its excellent gain flatness makes the AM1162-D a useful component for many Ka band satcom applications. Available as bare die in a 2.10mm x 1.34mm footprint with internal 50Ω matching and DC blocking capacitors, the AM1162-D is a small form-factor solution that can enable low SWaP applications.
AM1162-D is available only in Gel-Paks of QTY 25.
