| Quantity | AM1175 | AM1175-Eval |
|---|---|---|
| 1 | RFQ | RFQ |
| 10 | RFQ | RFQ |
| 50 | RFQ | RFQ |
| 100 | RFQ | RFQ |
| 200 | RFQ | RFQ |
| 500 | RFQ | RFQ |
| 1000+ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.

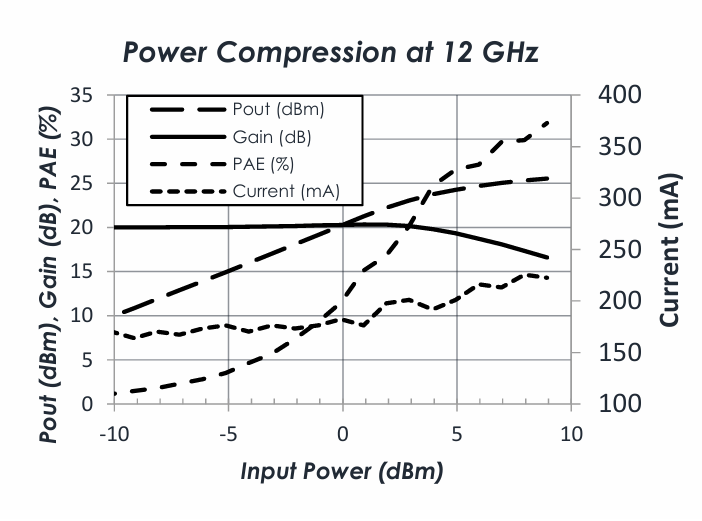

AM1175 is a wideband driver amplifier covering the 6 to 18 GHz frequency range. The device exhibits high gain and high P1dB with excellent power added efficiency above 32% at saturation using a 5V supply rail. The AM1175 is packaged in a 4mm QFN with internal matching and DC blocking capacitors.
AM1175 is a wideband driver amplifier covering the 6 to 18 GHz frequency range. The device exhibits high gain and high P1dB with excellent power added efficiency above 32% at saturation using a 5V supply rail. The AM1175 is packaged in a 4mm QFN with internal matching and DC blocking capacitors.
Function
Driver Amplifier
Freq. (GHz)
6 GHz - 18
Gain (dB)
21
NF (dB)
3.7
OIP3 (dBm)
35
Surface Mount
4mm QFN
Supply (+V)
5

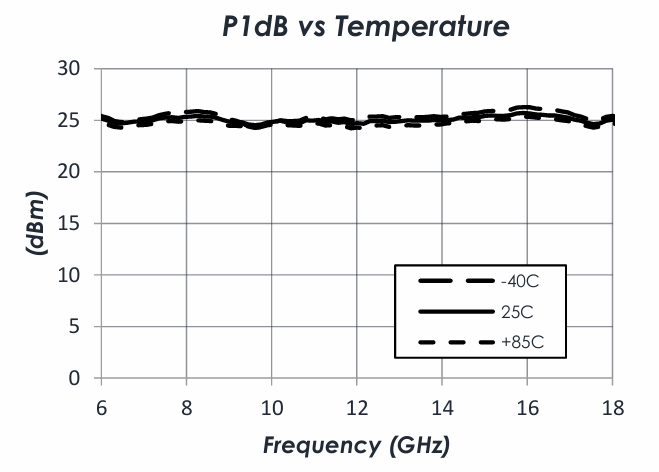

P1dB (dBm)
23
Supply (mA)
5
Module
No
ECCN: EAR99
