| Quantity | AM1302 |
|---|---|
| 1 | RFQ |
| 10 | RFQ |
| 50 | RFQ |
| 100 | RFQ |
| 200 | RFQ |
| 500 | RFQ |
| 1000+ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.

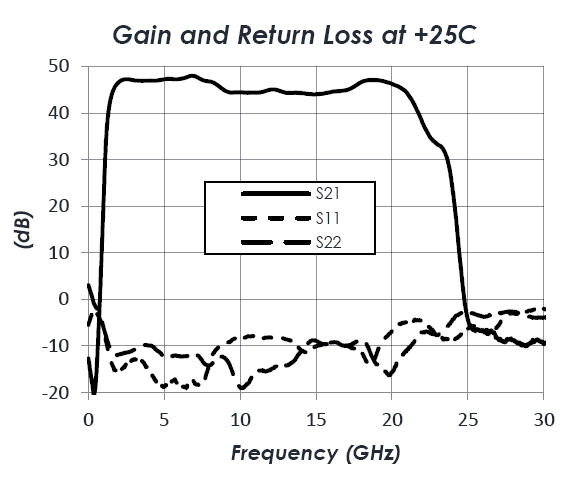

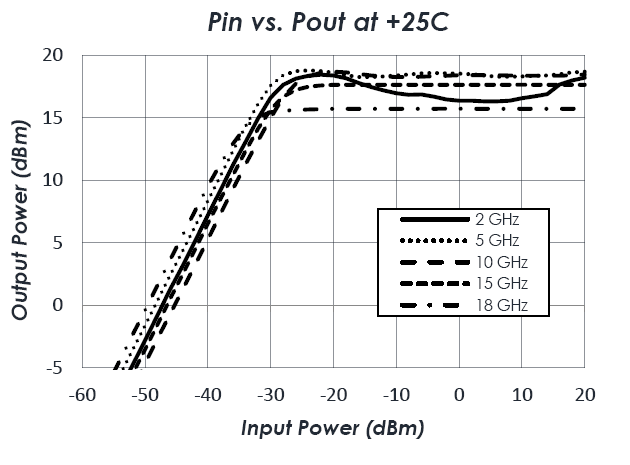

AM1302 is a wideband, power limiting amplifier servicing the 2 to 18 GHz frequency range. The device exhibits high small signal gain across a large frequency band and high output power over a wide input power range which makes the AM1302 a useful component for many broadband applications.
Function
Driver Amplifier
Freq. (GHz)
2 - 18
Gain (dB)
45
NF (dB)
3
OIP3 (dBm)
25
Surface Mount
No
Supply (+V)
3.5
P1dB (dBm)
15
Supply (mA)
226

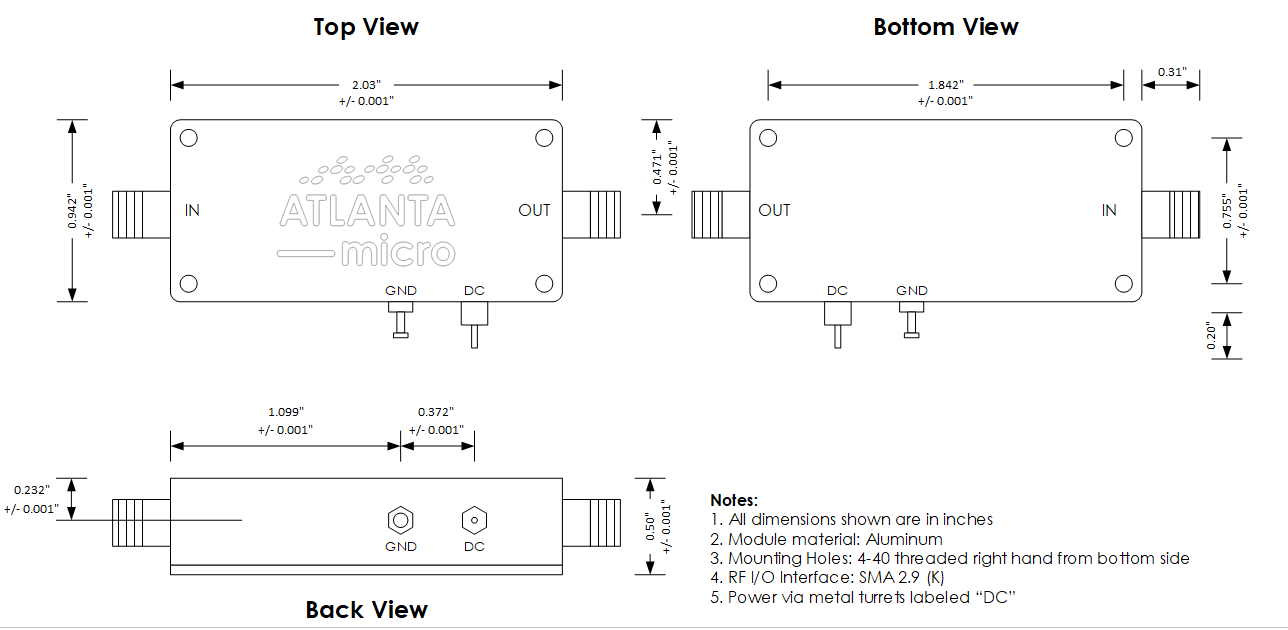

Module
Yes
ECCN: EAR99
Harmonized Code: 8542.33
