AtlantaMicro

AM3029

Digitally Tunable 1.5 GHz to 3.0 GHz Low Pass Filter


Recommended for New Designs


Product Options

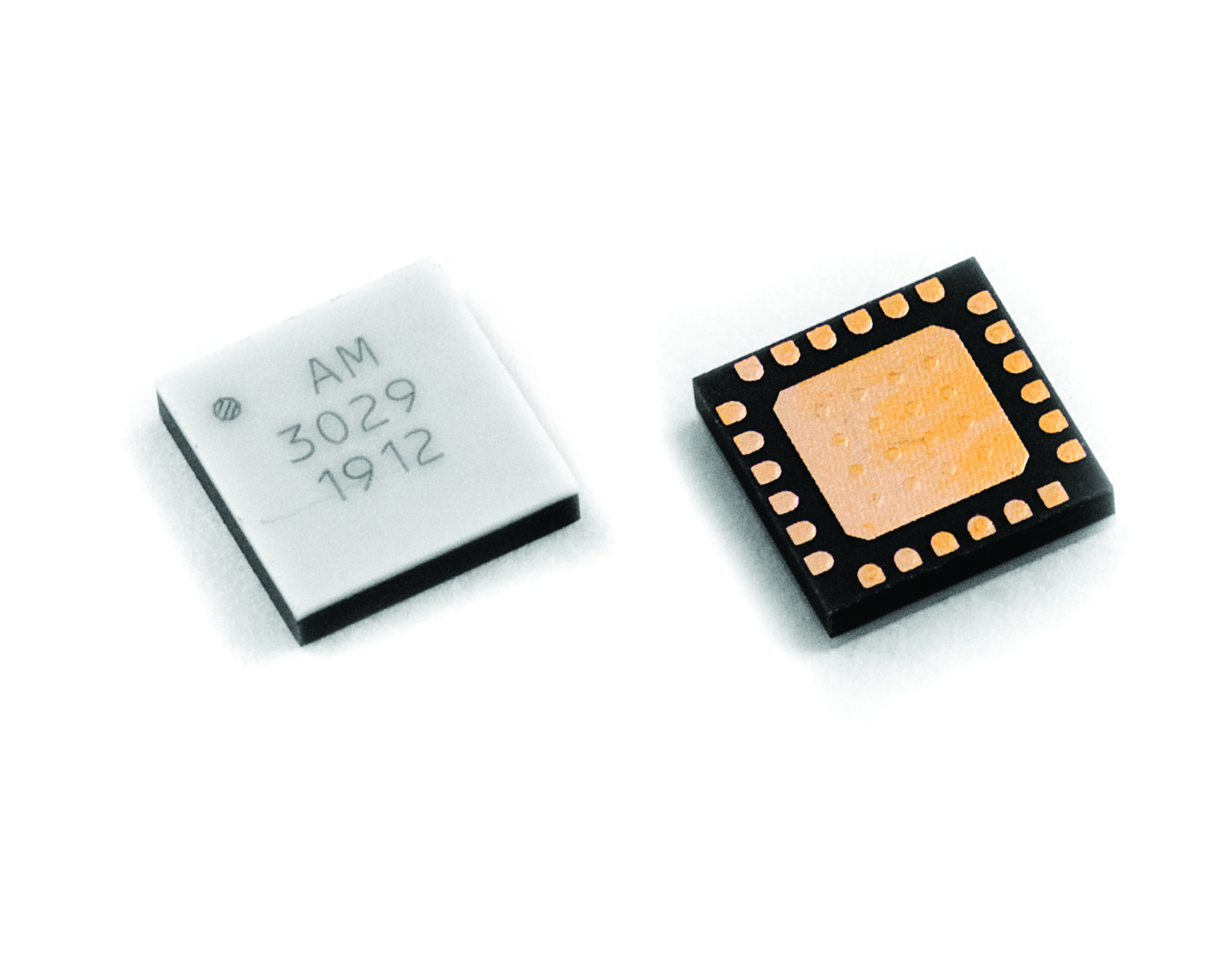

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3029 is a miniature digitally tunable lowpass filter covering the 1.5 to 3.0 GHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3029 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

Product Overview

AM3029 is a miniature digitally tunable lowpass filter covering the 1.5 to 3.0 GHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3029 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3029 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3029.

Specifications

Function

Digitally Tunable Lowpass

Cutoff Freq Low (MHz)

1500

Cutoff Freq High (MHz)

3000

Insertion Loss (dB)

1

Typical Rejection (dB)

50

Package

4mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39
