AM3035

Digitally Tunable 500 MHz to 1.2 GHz Low Pass Filter


Recommended for New Designs


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3035 is a miniature digitally tunable lowpass filter covering the 500 to 1200 MHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3035 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

Product Overview

AM3035 is a miniature digitally tunable lowpass filter covering the 500 to 1200 MHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3035 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

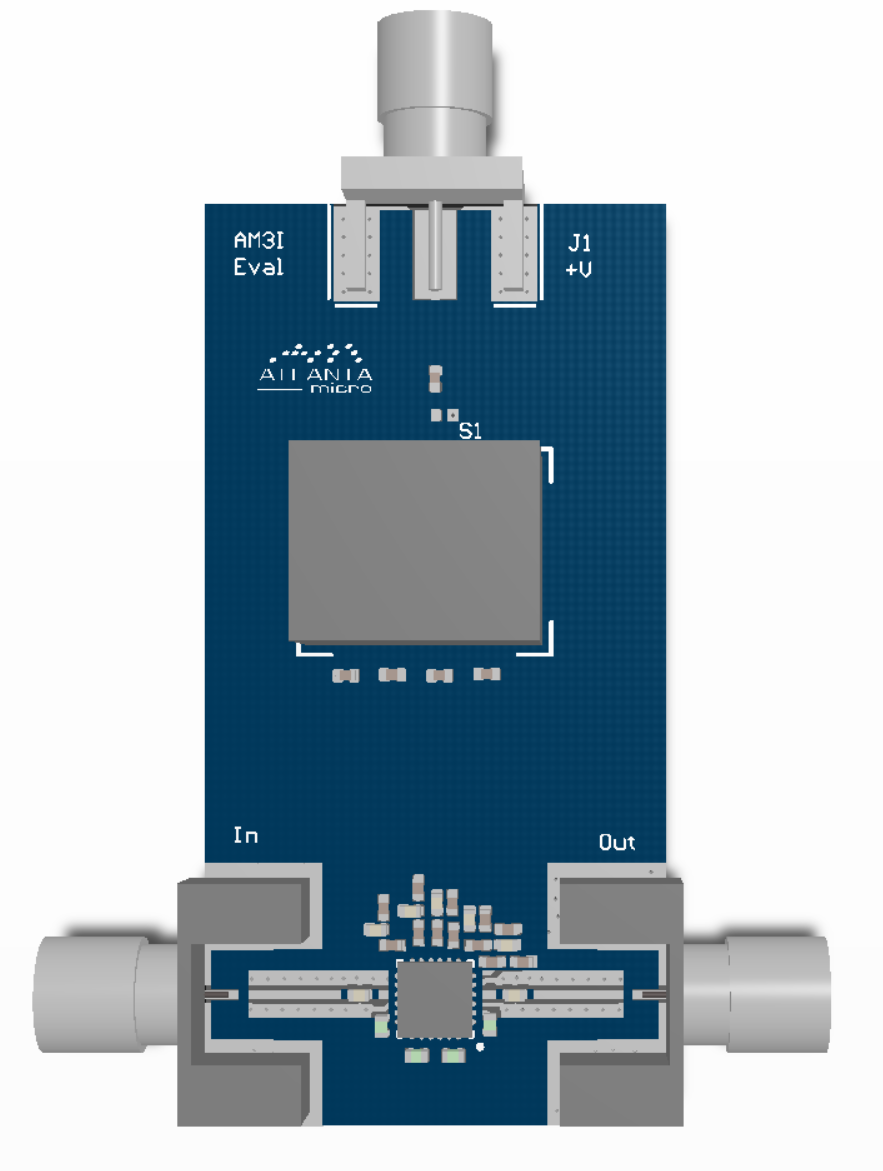

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3035 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3035.

Specifications

Function

Digitally Tunable Lowpass

Cutoff Freq Low (MHz)

500

Cutoff Freq High (MHz)

1200

Insertion Loss (dB)

1

Typical Rejection (dB)

40

Package

4mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM3035

Digitally Tunable 500 MHz to 1.2 GHz Low Pass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3035 is a miniature digitally tunable lowpass filter covering the 500 to 1200 MHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3035 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

Product Overview

AM3035 is a miniature digitally tunable lowpass filter covering the 500 to 1200 MHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3035 is packaged in a 4mm QFN package and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3035 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3035.

Specifications

Function

Digitally Tunable Lowpass

Cutoff Freq Low (MHz)

500

Cutoff Freq High (MHz)

1200

Insertion Loss (dB)

1

Typical Rejection (dB)

40

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8542.39
