AtlantaMicro

AM3056

1 GHz IF Bandpass Filter


Recommended for New Designs


Product Options

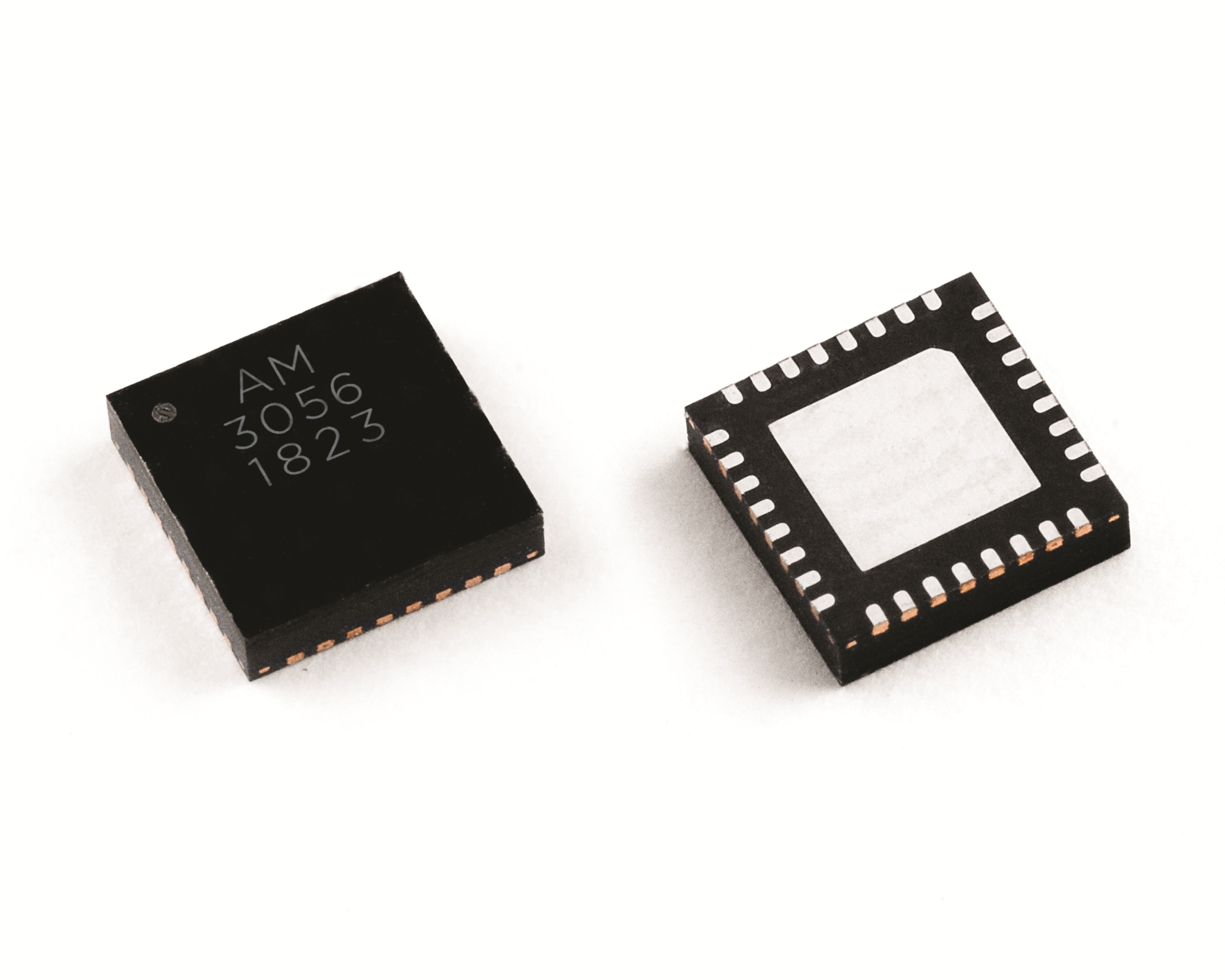

Surface Mount 5mm x 5mm QFN
Connectorized Evaluation Board

Product Overview

AM3056 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 5mm package. With a center frequency of 1 GHz and a bandwidth of 500 MHz, AM3056 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3056 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.

For a smaller form factor view our latest IF filter AM3232!

Product Overview

AM3056 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 5mm package. With a center frequency of 1 GHz and a bandwidth of 500 MHz, AM3056 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3056 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.

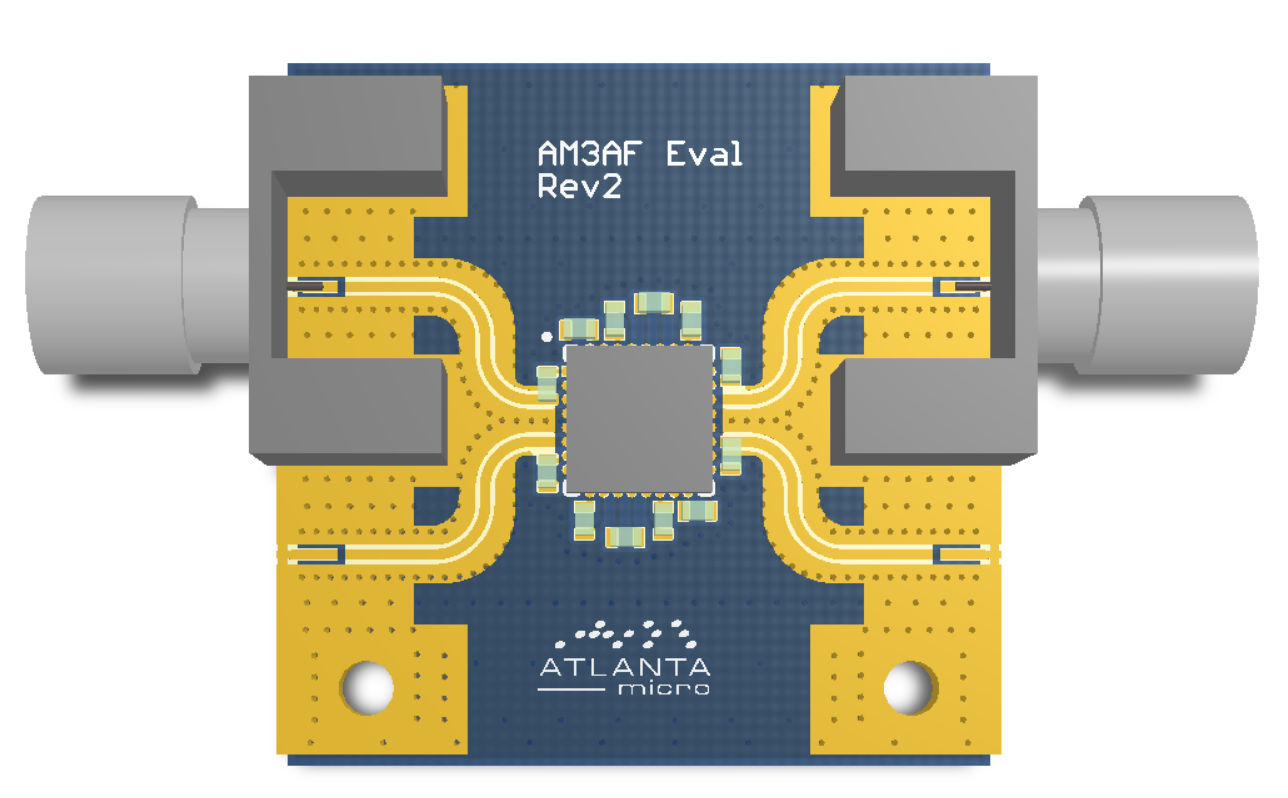

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3056.



For a smaller form factor view our latest IF filter AM3232!

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

750

Cutoff Freq High (MHz)

1250

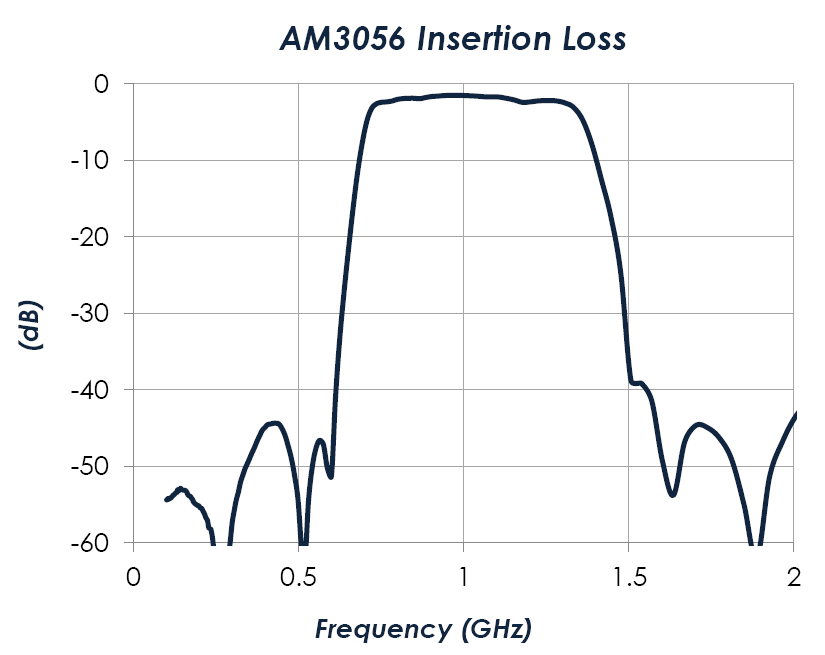

Insertion Loss (dB)

2

Typical Rejection (dB)

50

Package

5mm QFN

Bandwidth Low (MHz)

500

Center Frequency

1000

# in Pack

1



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM3056

1 GHz IF Bandpass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 5mm x 5mm QFN
Connectorized Evaluation Board

Product Overview

AM3056 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 5mm package. With a center frequency of 1 GHz and a bandwidth of 500 MHz, AM3056 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3056 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.

For a smaller form factor view our latest IF filter AM3232!

Product Overview

AM3056 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 5mm package. With a center frequency of 1 GHz and a bandwidth of 500 MHz, AM3056 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3056 is AC coupled and matched to 50 oms and operates over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3056.



For a smaller form factor view our latest IF filter AM3232!

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

750

Cutoff Freq High (MHz)

1250

Insertion Loss (dB)

2

Typical Rejection (dB)

50

Package

5mm QFN

Bandwidth Low (MHz)

500

Center Frequency

1000

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39
