| Quantity | AM3107 | AM3107 Eval |
|---|---|---|
| 1 | RFQ | RFQ |
| 10 | RFQ | RFQ |
| 50 | RFQ | RFQ |
| 100 | RFQ | RFQ |
| 200 | RFQ | RFQ |
| 500 | RFQ | RFQ |
| 1000+ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.

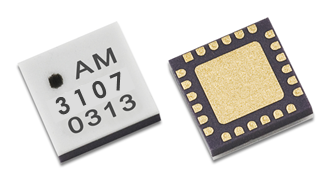

AM3107 is a miniature digitally tunable lowpass filter covering the 6.0 to 12.0 GHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3107 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.
AM3107 is a miniature digitally tunable lowpass filter covering the 6.0 to 12.0 GHz frequency range. The filter provides 16 selectable lowpass cutoff states with 4 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution. AM3107 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3107 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3107.
Function
Digitally Tunable Lowpass
Cutoff Freq Low (MHz)
6000
Cutoff Freq High (MHz)
12000
Insertion Loss (dB)
2
Typical Rejection (dB)
45
Package
4mm QFN
ECCN: EAR99
Harmonized Code: 8542.39
