Digitally Tunable 12.0 GHz to 18.0 GHz High Pass Filter


Recommended for New Designs


Product Options

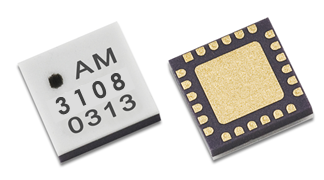

Surface Mount 4mm x 4mm
Connectorized Evaluation Board

Product Overview

AM3108 is a miniature digitally tunable highpass filter covering the 12.0 to 18.0 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3108 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Product Overview

AM3108 is a miniature digitally tunable highpass filter covering the 12.0 to 18.0 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3108 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3108 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3108.

Specifications

Function

Digitally Tunable Highpass

Cutoff Freq Low (MHz)

12000

Cutoff Freq High (MHz)

18000

Insertion Loss (dB)

5

Typical Rejection (dB)

50

Package

4mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39
