AM3109

Digitally Tunable 18.0 GHz to 26.5 GHz High Pass Filter


Recommended for New Designs


Product Options

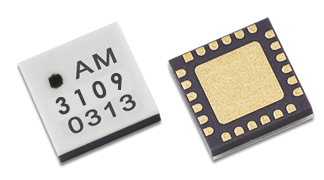

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3109 is a miniature digitally tunable highpass filter covering the 18.0 to 26.5 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3109 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Product Overview

AM3109 is a miniature digitally tunable highpass filter covering the 18.0 to 26.5 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3109 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3109 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3109.

Specifications

Function

Digitally Tunable Highpass

Cutoff Freq Low (MHz)

18000

Cutoff Freq High (MHz)

26500

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

4mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM3109

Digitally Tunable 18.0 GHz to 26.5 GHz High Pass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3109 is a miniature digitally tunable highpass filter covering the 18.0 to 26.5 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3109 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Product Overview

AM3109 is a miniature digitally tunable highpass filter covering the 18.0 to 26.5 GHz frequency range.  The filter provides 32 selectable highpass cutoff states with 5 digital control bits.  The tunable highpass filter can be combined with one of Atlanta Micro’s tunable lowpass filters to provide a flexible tunable bandpass filter solution.  AM3109 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3109 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3109.

Specifications

Function

Digitally Tunable Highpass

Cutoff Freq Low (MHz)

18000

Cutoff Freq High (MHz)

26500

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8542.39
