AtlantaMicro

AM3150

Digitally Tunable 30 MHz to 550 MHz Low Pass Filter


Recommended for New Designs


Product Options

Surface Mount 5mm x 5mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module
Connectorized Evaluation Board

Product Overview

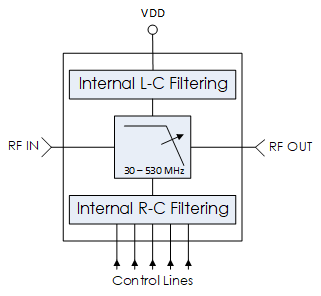

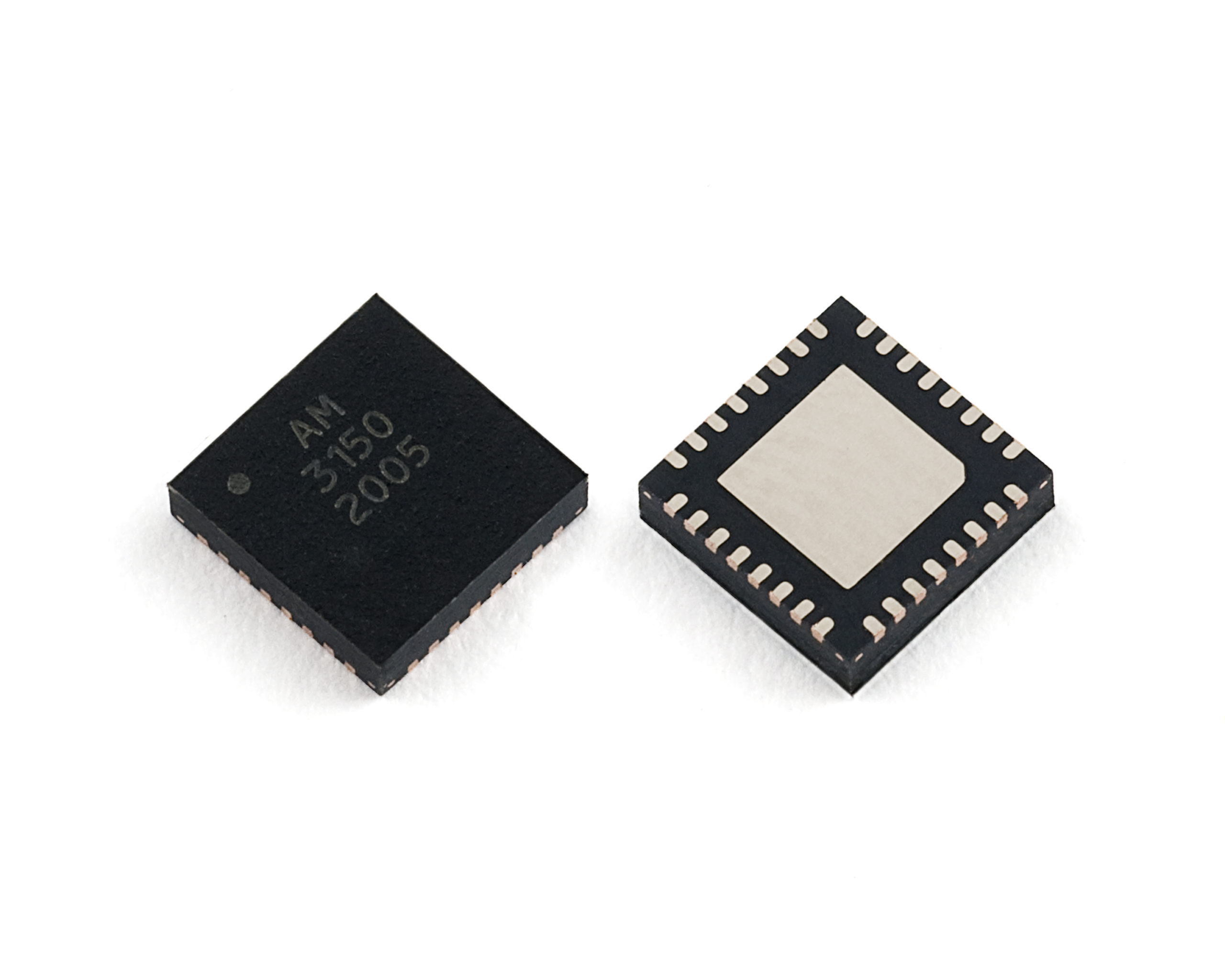

AM3150 is a digitally tunable lowpass filter covering the 30 MHz to 550 MHz frequency range. The filter provides 32 selectable lowpass cutoff states with 5 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible bandpass filter solution. AM3150 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

The AM3150 pairs well with it’s sister part the AM3151 to create a flexible band pass filter bank solution from 20 MHz to 550 MHz.

Product Overview

AM3150 is a digitally tunable lowpass filter covering the 30 MHz to 550 MHz frequency range. The filter provides 32 selectable lowpass cutoff states with 5 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible bandpass filter solution. AM3150 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

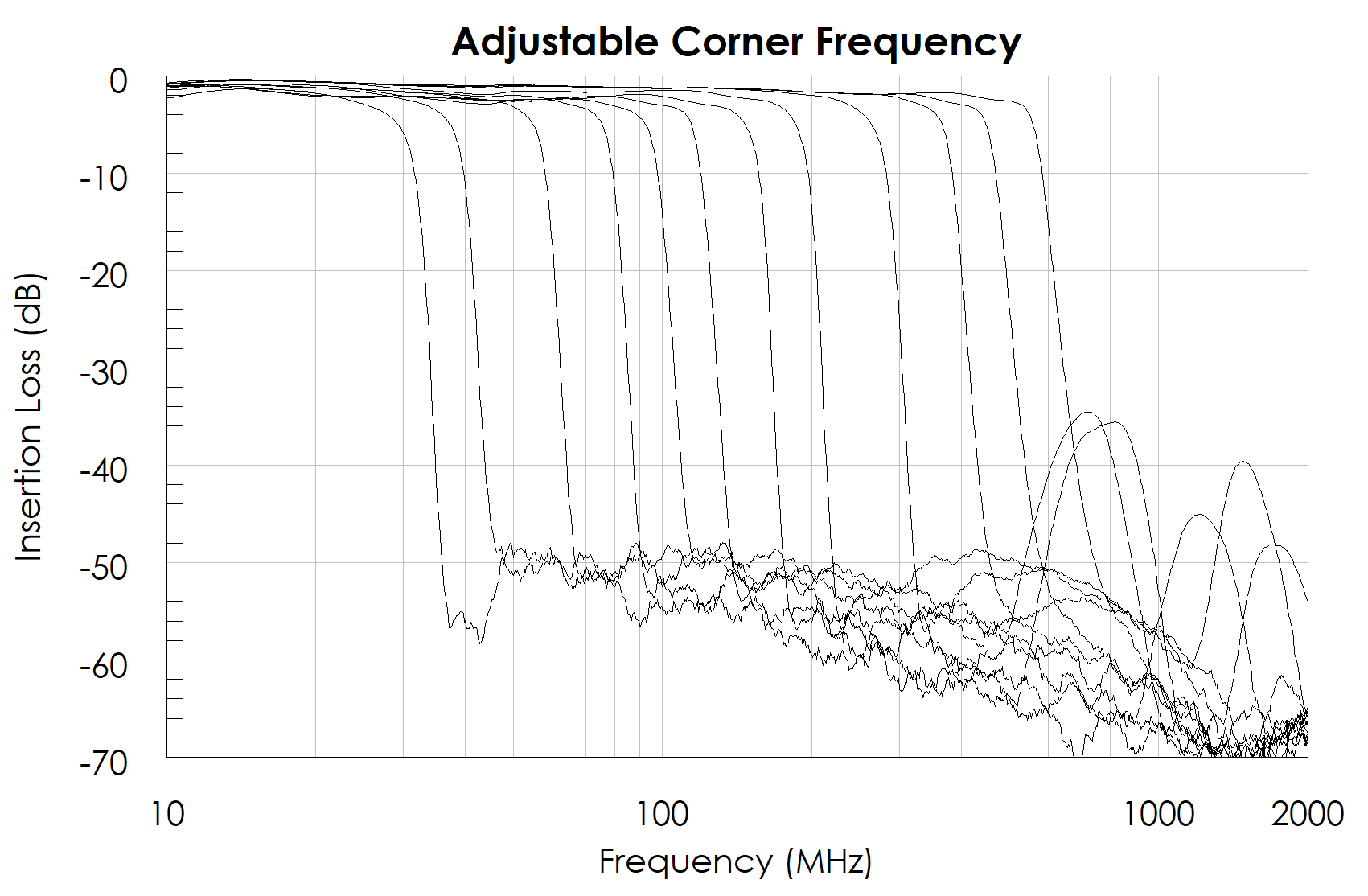

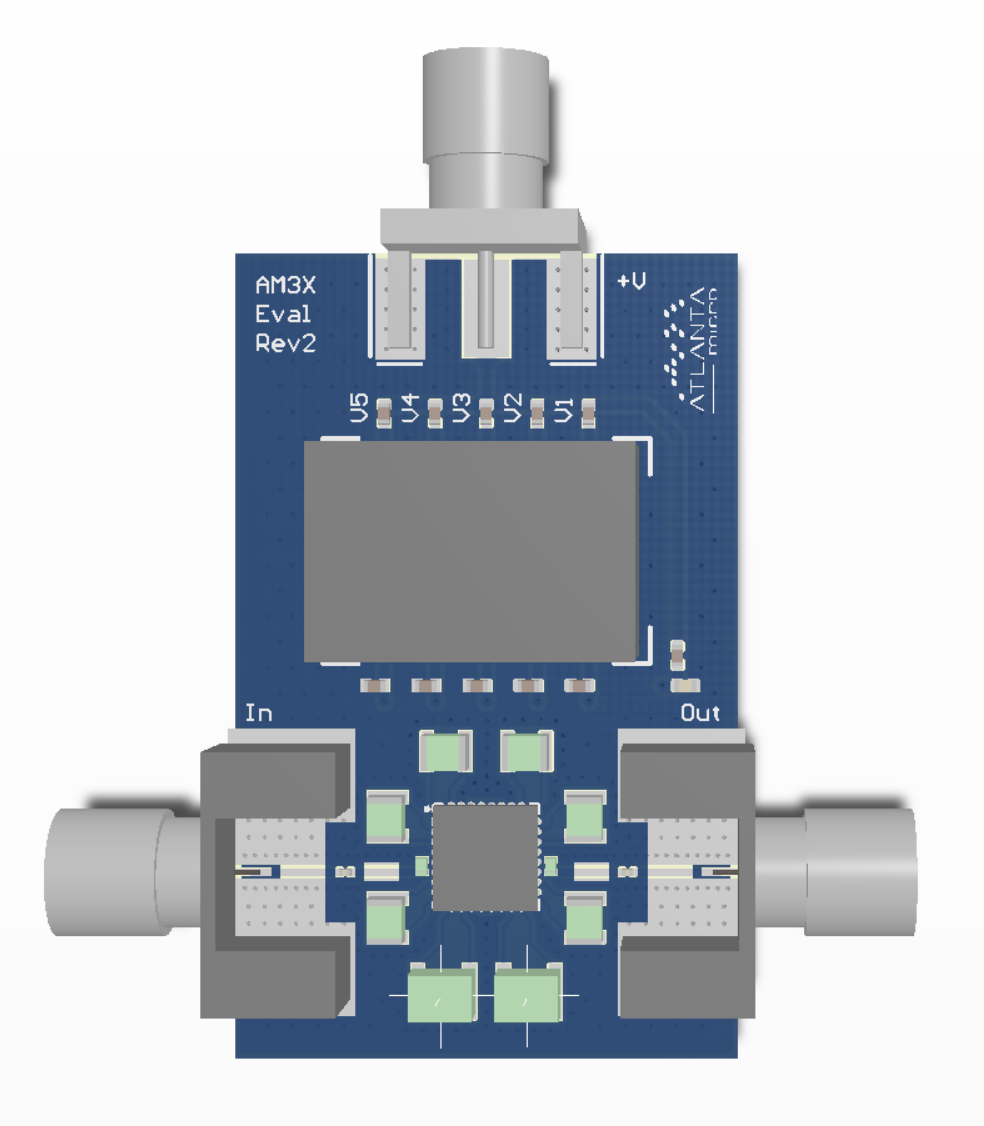

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3150 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. This evaluation board offers the AM3150 in Configuration A as noted on the datasheet. Evaluation board includes AM3150.



The AM3150 pairs well with it’s sister part the AM3151 to create a flexible band pass filter bank solution from 20 MHz to 550 MHz.

Product Overview

AM3150 is a digitally tunable lowpass filter covering the 30 MHz to 550 MHz frequency range. The filter provides 32 selectable lowpass cutoff states with 5 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible bandpass filter solution. AM3150 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

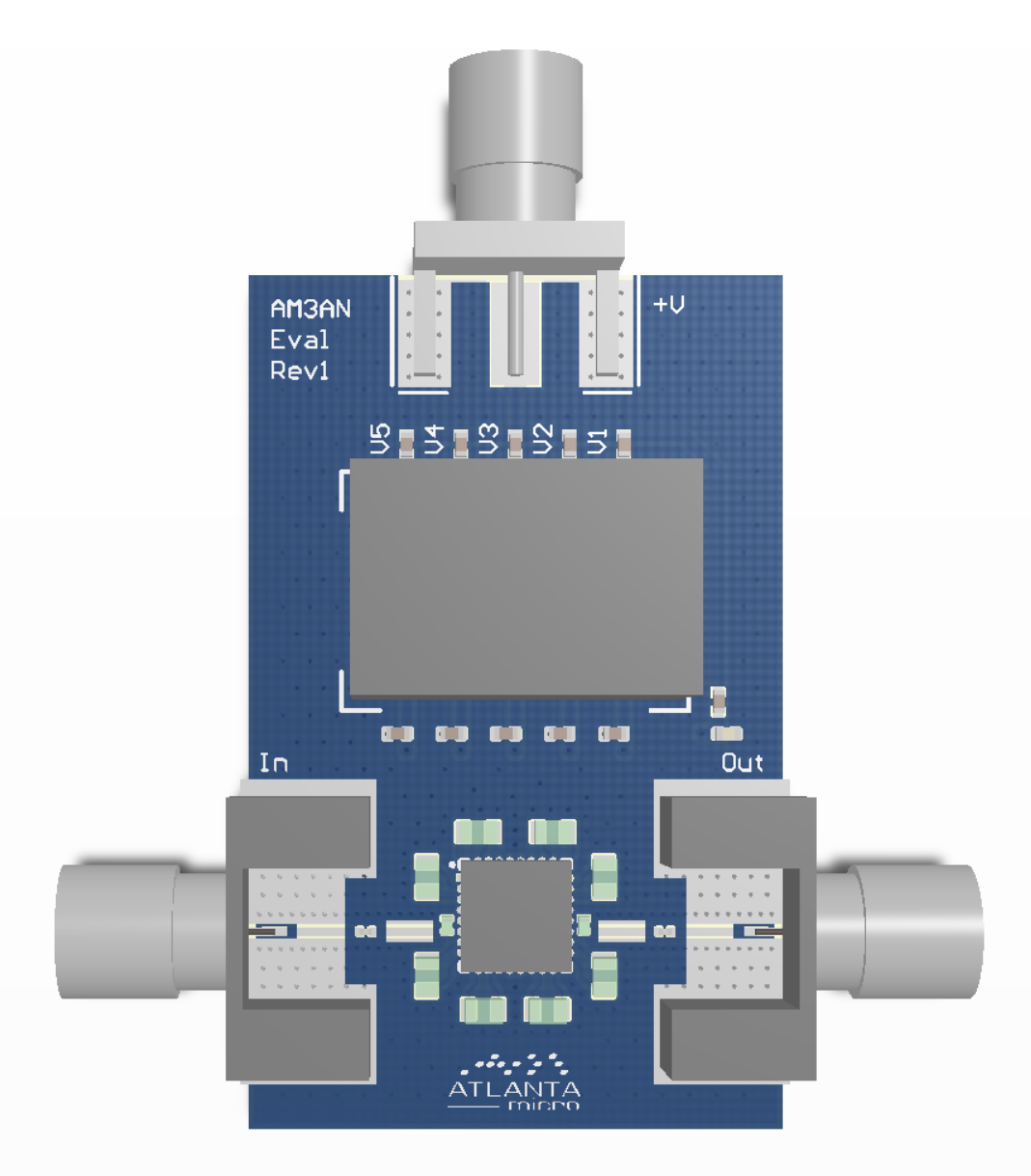

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3150 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. This evaluation board offers the AM3150 in Configuration B as noted on the datasheet. Evaluation board includes AM3150.



The AM3150 pairs well with it’s sister part the AM3151 to create a flexible band pass filter bank solution from 20 MHz to 550 MHz.

Product Overview

AM3150 is a digitally tunable lowpass filter covering the 30 MHz to 550 MHz frequency range. The filter provides 32 selectable lowpass cutoff states with 5 digital control bits. The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible bandpass filter solution. AM3150 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

The AM3150 is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3150-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. AM3150-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3150. The AM3150 module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3150-M without the GUI via sending commands over USB available upon request.

Product Overview

AM3150 paired with AM3151 creates a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. The filter pair provides 32 selectable lowpass cutoff states and 32 selectable high pass cutoff states for a total of 1024 unique filter combinations. The filter pair exhibits high Q, low passband insertion loss, and high stopband rejection to make an incredibly flexible bandpass solution for your sub-GHz filtering and perfect for use as a pre-selector filter bank.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. The AM3150 + AM3151 evaluation board also includes two DIP switches for control of the filter high pass and low pass settings which are independently tunable. These switches are included with the evaluation board unless otherwise requested (header pins may be substituted if requested). This evaluation board offers the AM3150 in Configuration A as noted on the AM3150 datasheet and a standard configuration AM3151. Evaluation board includes AM3150, AM3151, and all necessary external components.

Specifications

Function

Digitally Tunable Lowpass

Cutoff Freq Low (MHz)

30

Cutoff Freq High (MHz)

550

Insertion Loss (dB)

1.5

Typical Rejection (dB)

50

Package

5mm QFN

# in Pack

1



ECCN/USML: EAR99

Harmonized Code: 8542.39
