AM3155

Digitally Tunable 20 MHz to 550 MHz Bandpass


Recommended for New Designs


Product Options

Surface Mount 13.5mm x 24mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

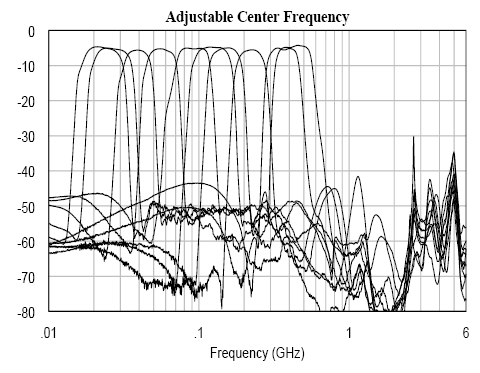

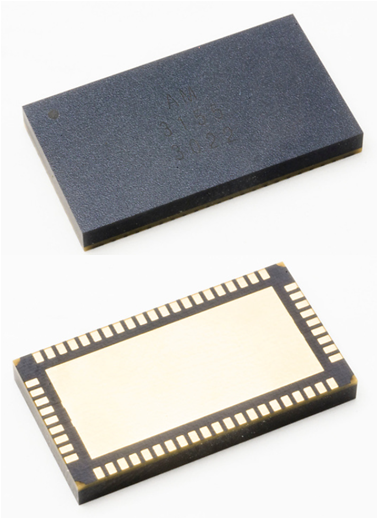

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Product Overview

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.

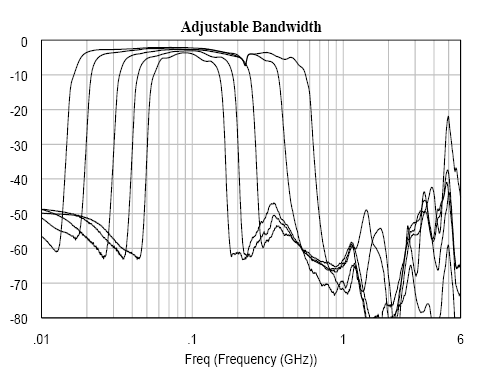

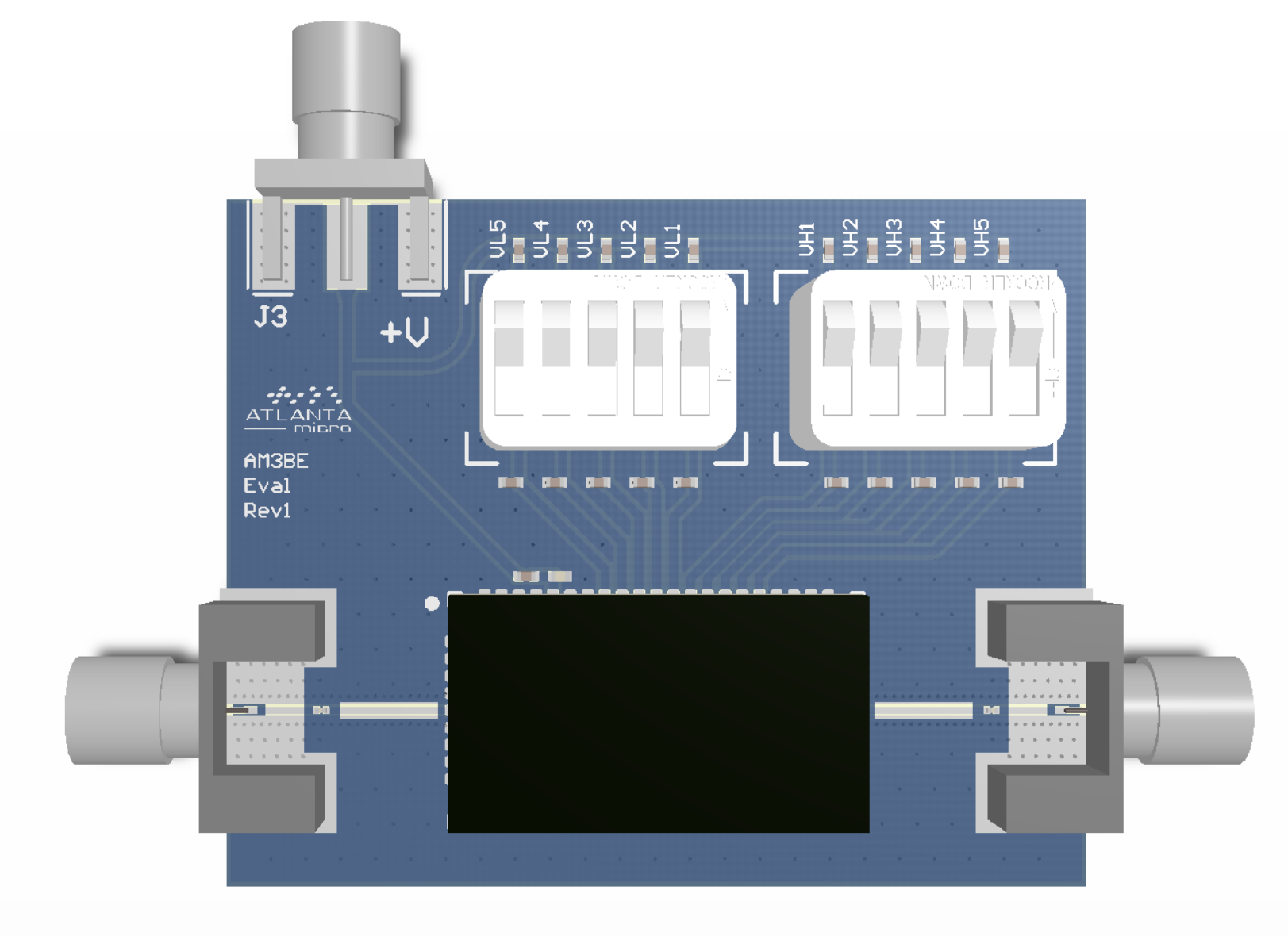

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3155 evaluation board also includes DIP switches for control of the filter settings. This switch is included with the evaluation board unless otherwise requested (100mil pitch header compatible). Evaluation board includes AM3155.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Product Overview

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.

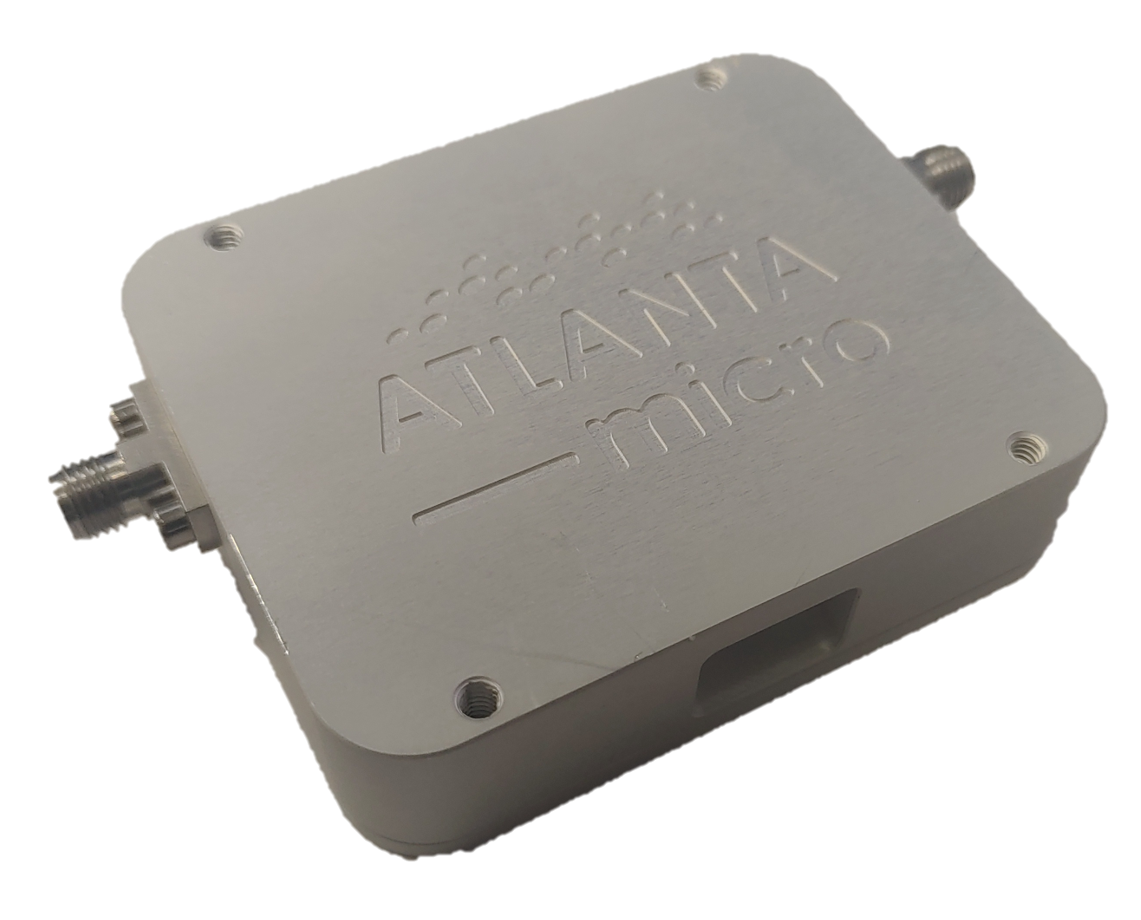

The AM3155 is also available as a RF-shielded module with dimensions 2.0″ x 2.5″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3155-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. AM3155-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3155. The AM3155 module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3155-M without the GUI via sending commands over USB available upon request.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

20

Cutoff Freq High (MHz)

550

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

13.5mmX24mm

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Tunable

# in Pack

1



ECCN/USML: 3A001.b.5

Harmonized Code: 8542.39

AM3155

Digitally Tunable 20 MHz to 550 MHz Bandpass


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 13.5mm x 24mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Product Overview

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3155 evaluation board also includes DIP switches for control of the filter settings. This switch is included with the evaluation board unless otherwise requested (100mil pitch header compatible). Evaluation board includes AM3155.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Product Overview

AM3155 is a digitally tunable bandpass filter covering the 20 MHz to 550 MHz frequency range. It is packaged in a 13.5mm x 24mm QFN package or in an RF shielded module. The filter provides 32 selectable lowpass cutoff states and 32 selectable highpass cutoff states with 5 digital control bits each for a total of 1024 unique states. The AM3155 also offers on chip power and control line filtering to help reduce component count for maximum space savings.

AM3155 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive solution for demanding low SWaP applications.

The AM3155 is also available as a RF-shielded module with dimensions 2.0″ x 2.5″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3155-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. AM3155-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3155. The AM3155 module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3155-M without the GUI via sending commands over USB available upon request.



You may purchase the individual HPF or LPF from the AM3155 by viewing the AM3150 or the AM3151 product pages for more information.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

20

Cutoff Freq High (MHz)

550

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

13.5mmX24mm

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Tunable

# in Pack

1



ECCN: 3A001.b.5

Harmonized Code: 8542.39
