Digitally Tunable 2 GHz to 18 GHz Bandpass


Recommended for New Designs


Product Options

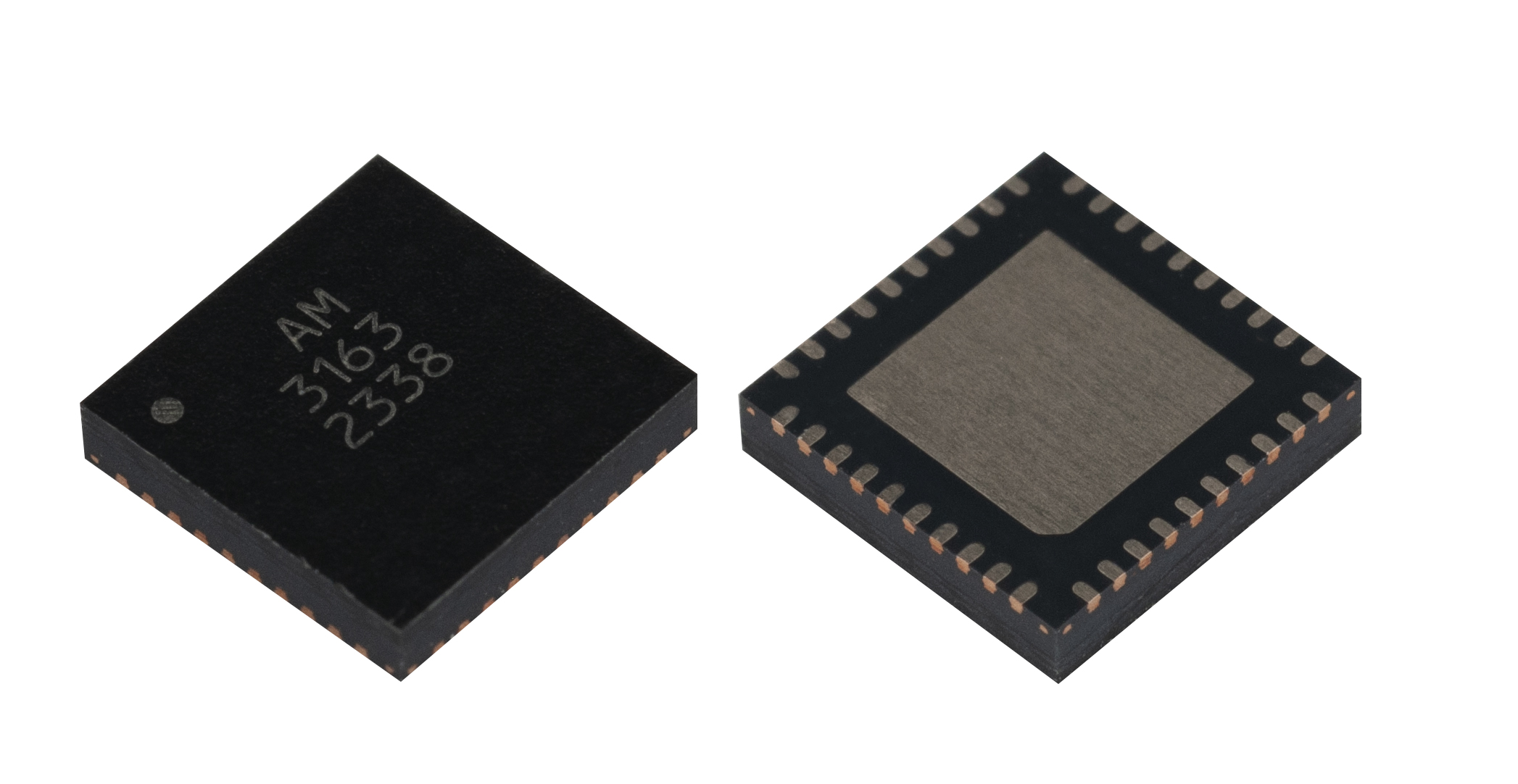

Surface Mount 6mm x 6mm QFN
Connectorized Evaluation Board

Product Overview

AM3163 is a miniature digitally tunable bandpass filter bank covering the 2.0 to 18 GHz frequency range. The device provides 3 separate filter bands each with 16 low-pass and 16 high-pass tuning states for independent control of both the center frequency and bandwidth as well as a low-loss filter bypass path all contained in a 6mm plastic QFN package. The AM3163 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3163 is an excellent front-end for a receiver providing valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.



Product Overview

AM3163 is a miniature digitally tunable bandpass filter bank covering the 2.0 to 18 GHz frequency range. The device provides 3 separate filter bands each with 16 low-pass and 16 high-pass tuning states for independent control of both the center frequency and bandwidth as well as a low-loss filter bypass path all contained in a 6mm plastic QFN package. The AM3163 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3163 is an excellent front-end for a receiver providing valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

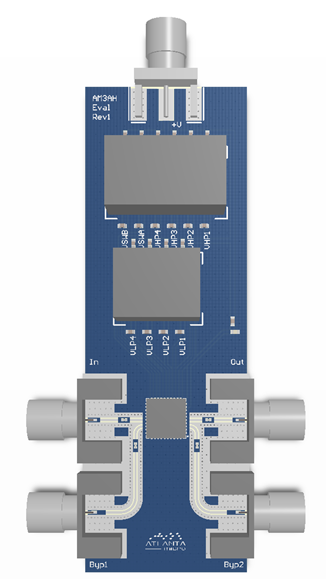

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3163 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3163.

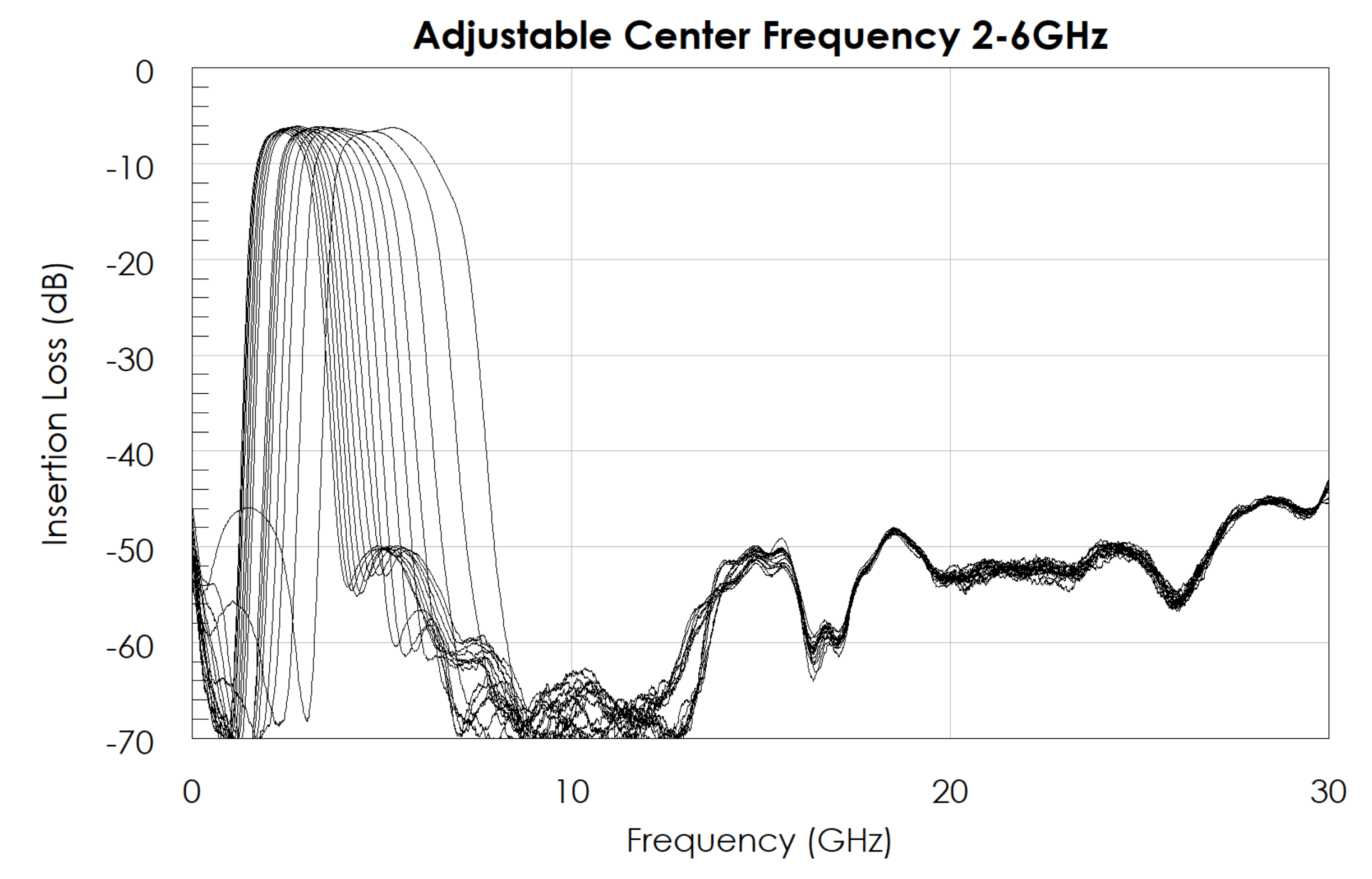

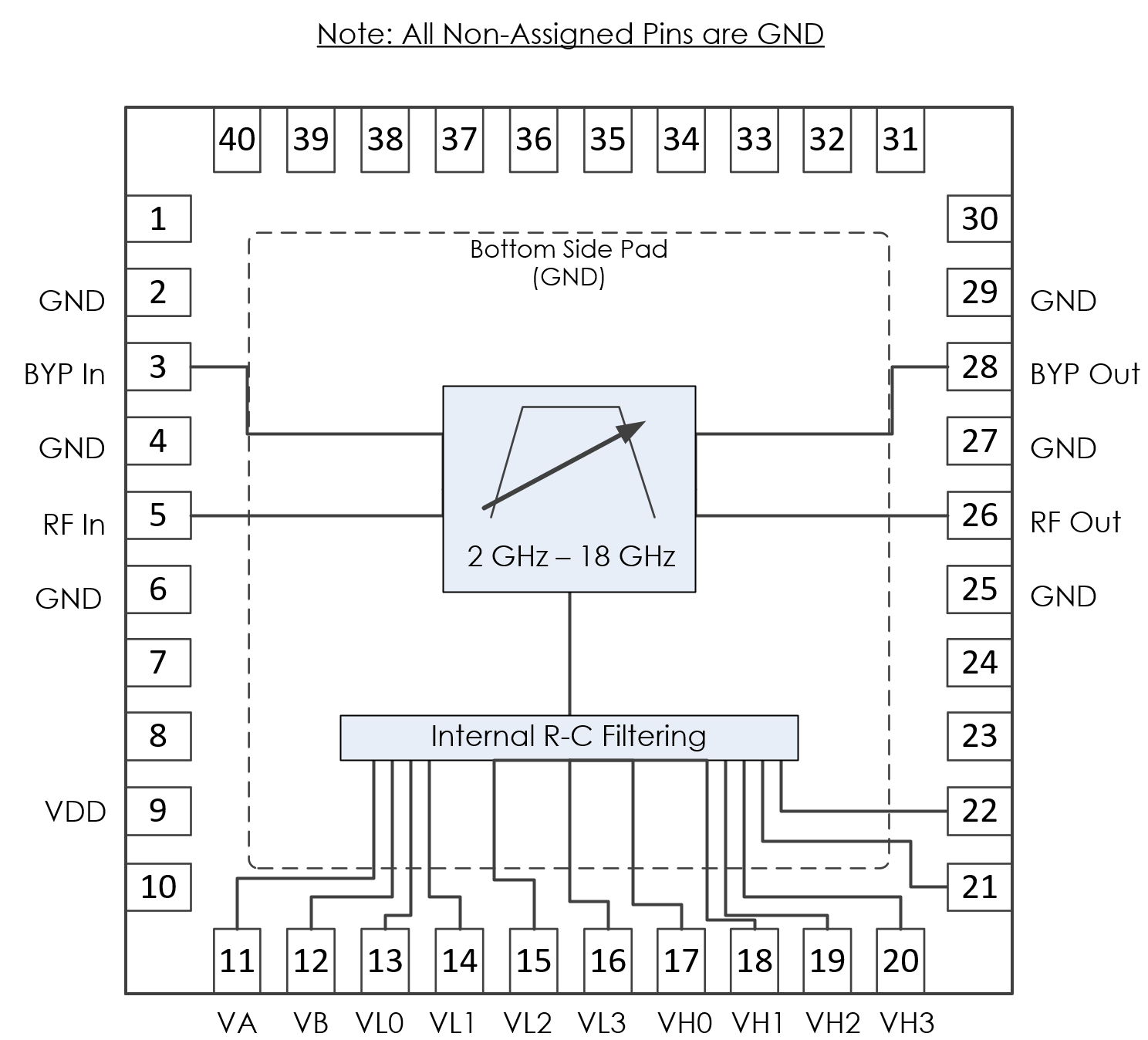

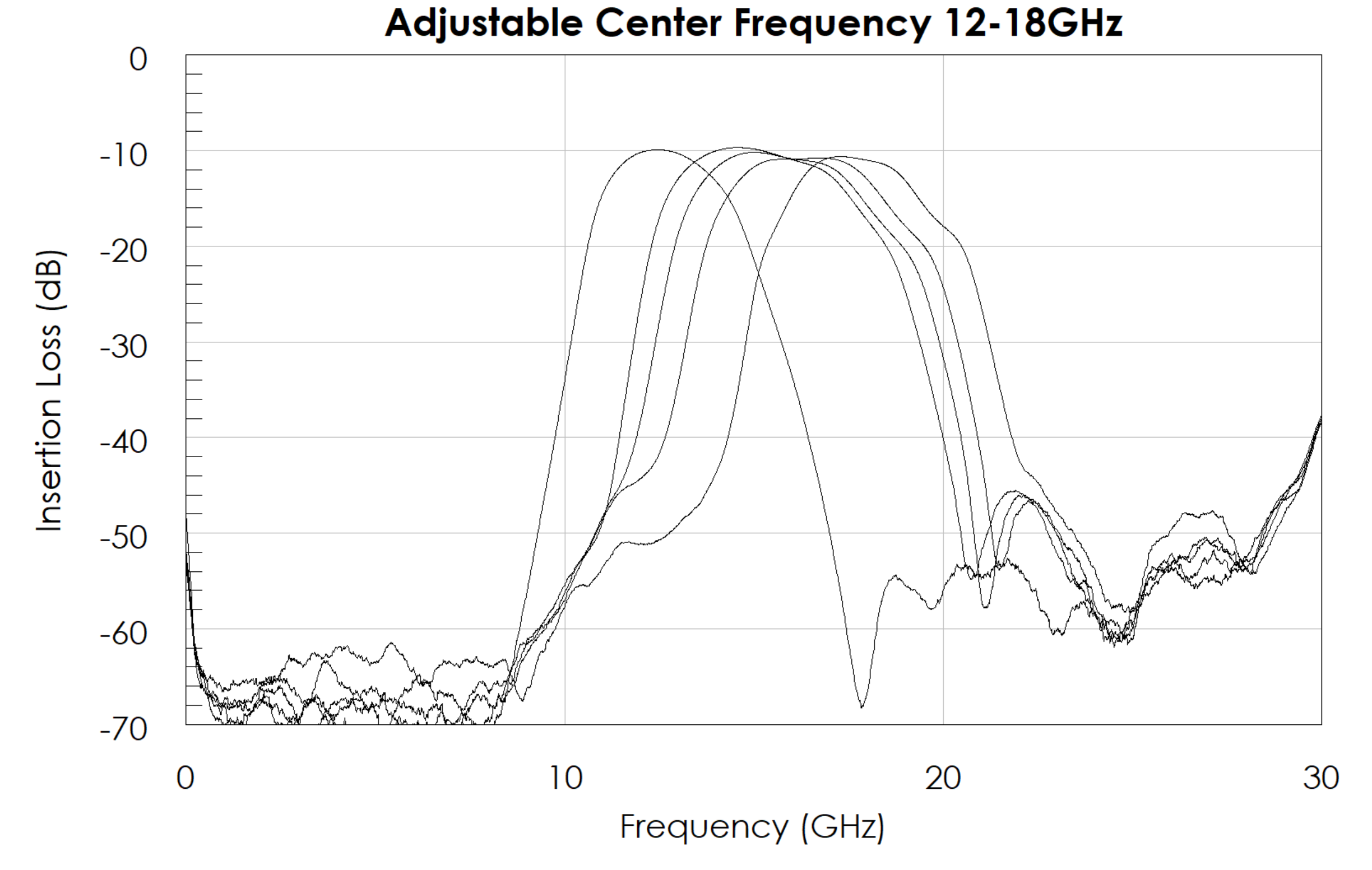

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

2000

Cutoff Freq High (MHz)

18000

Insertion Loss (dB)

8.0

Typical Rejection (dB)

50

Package

6mm QFN

Bandwidth Low (MHz)

Adjustable

Center Frequency

Tunable

# in Pack

3 + Bypass



ECCN/USML: 3A001.b.5

Harmonized Code: 8542.39
