AM3172-M

20 MHz to 8 GHz Digitally Tunable Bandpass


Recommended for New Designs


Product Overview

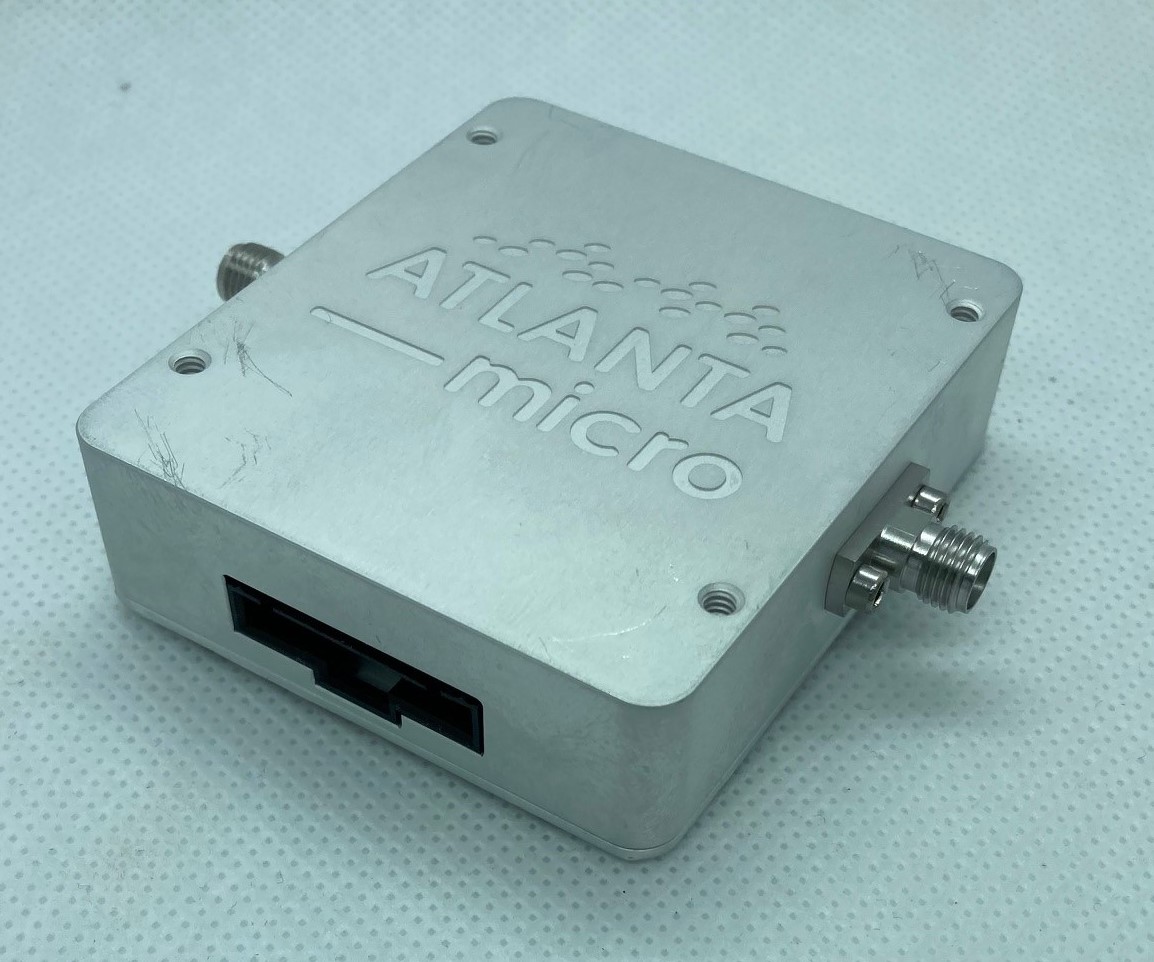

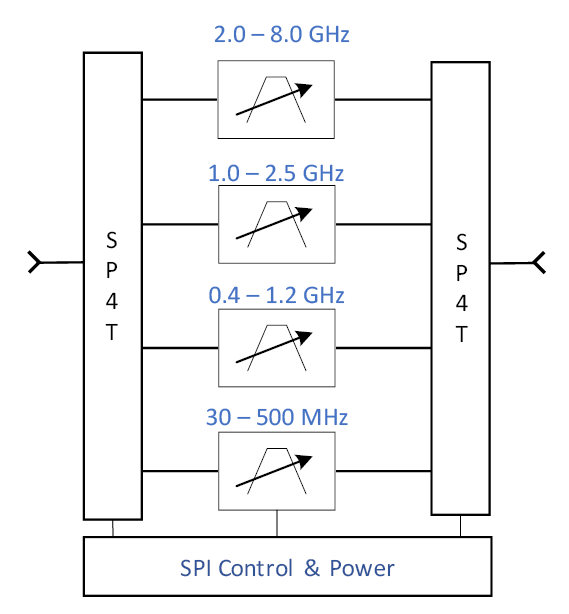

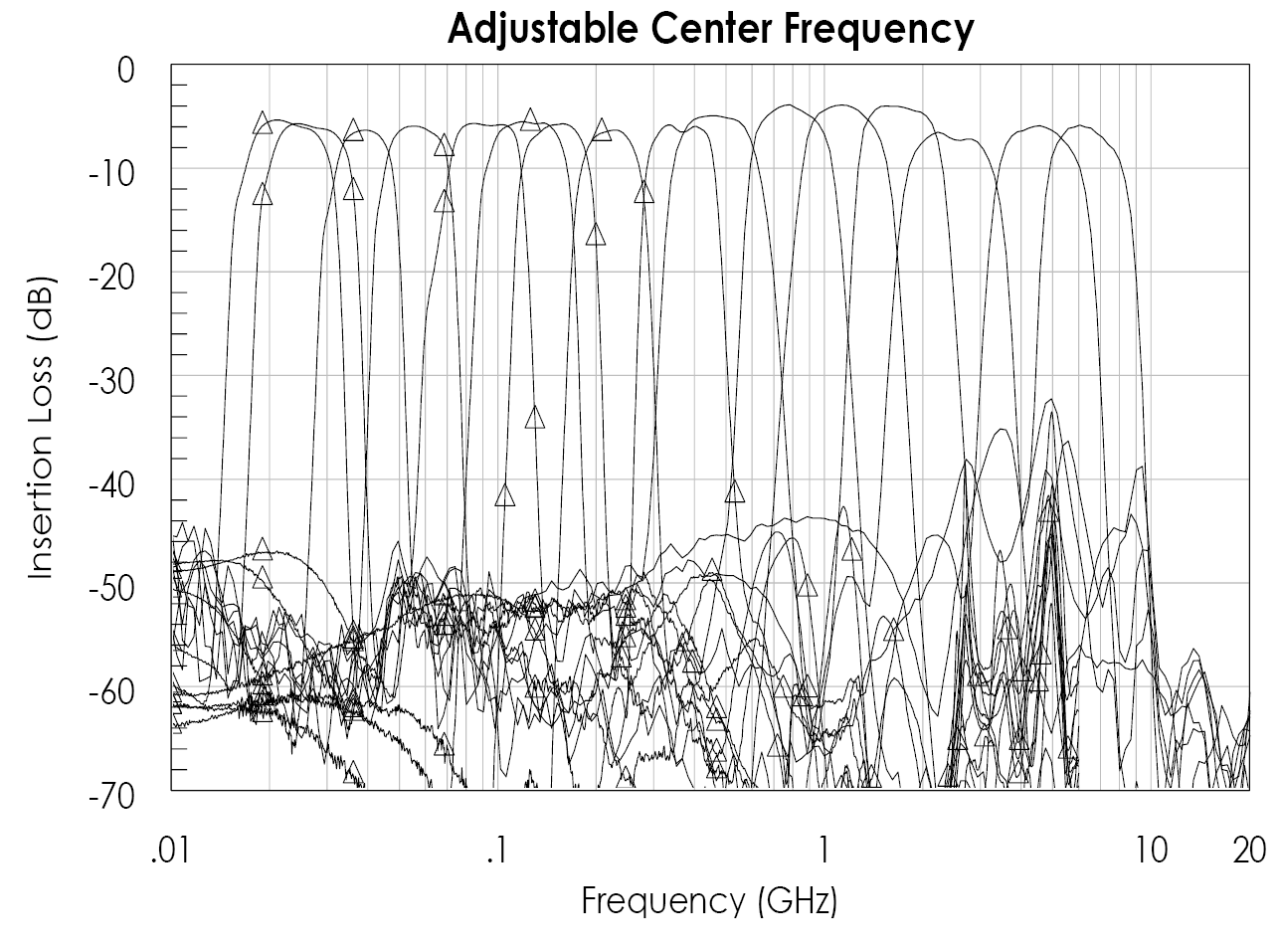

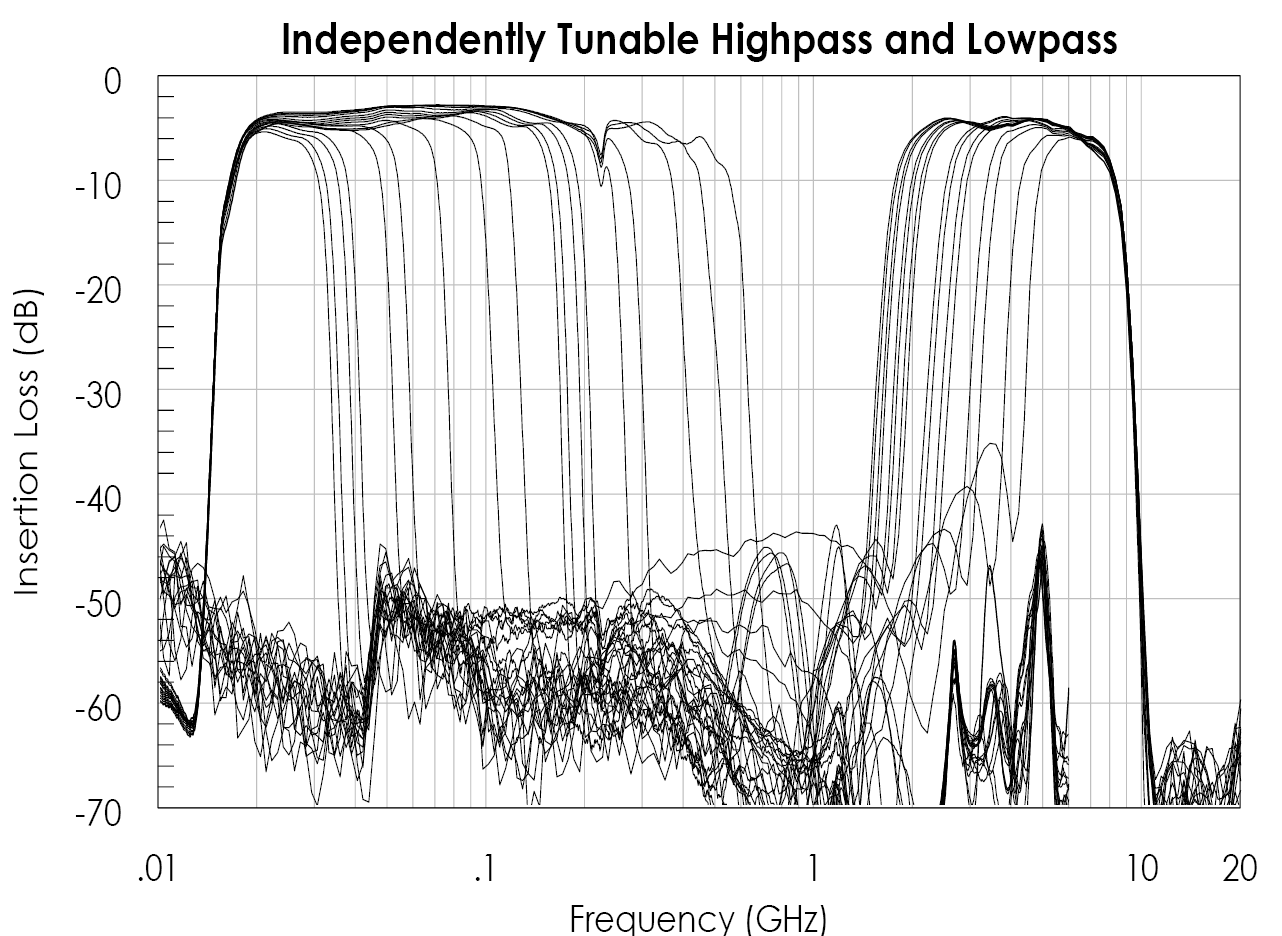

AM3172 is a tunable bandpass filter module covering 20 MHz to 8 GHz. The device contains the AM3150, AM3151, and AM3156 digitally tunable filter components in a connectorized, shielded module.  Control interface is a 3-wire SPI (serial peripheral interface).  The AM3172 is an excellent front-end preselector for a receiver, providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

20

Cutoff Freq High (MHz)

8000

Insertion Loss (dB)

5

Typical Rejection (dB)

60

Package

2.4" x 2.1" Module

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

# in Pack

4



ECCN/USML: 3A001.b.5

Harmonized Code: 8542.39
