AtlantaMicro

AM3187

3.75 GHz IF Bandpass Filter


Recommended for New Designs


Product Options

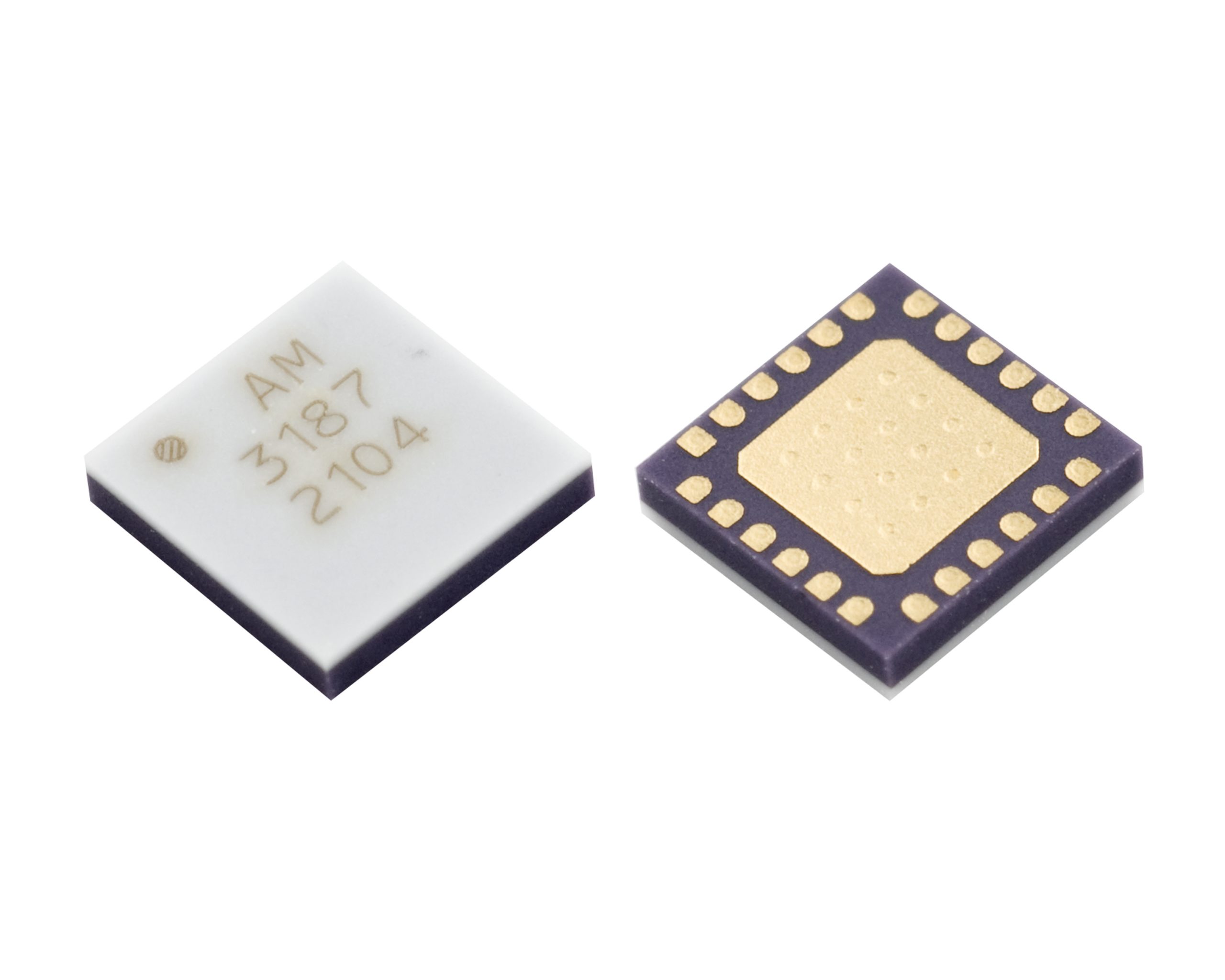

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3187 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package. With a center frequency of 3.75 GHz and a bandwidth of 1 GHz, AM3187 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3187 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

Product Overview

AM3187 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package. With a center frequency of 3.75 GHz and a bandwidth of 1 GHz, AM3187 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3187 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3187.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

3250

Cutoff Freq High (MHz)

4250

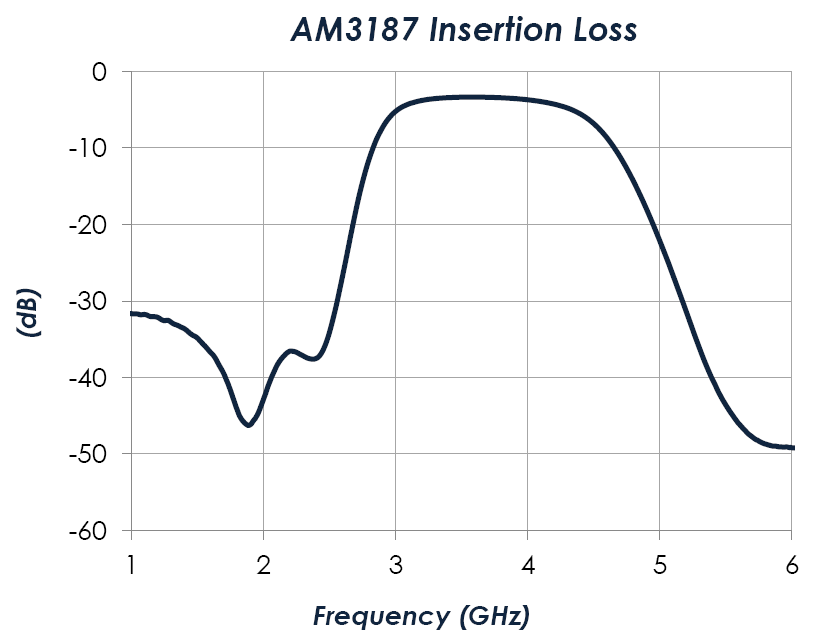

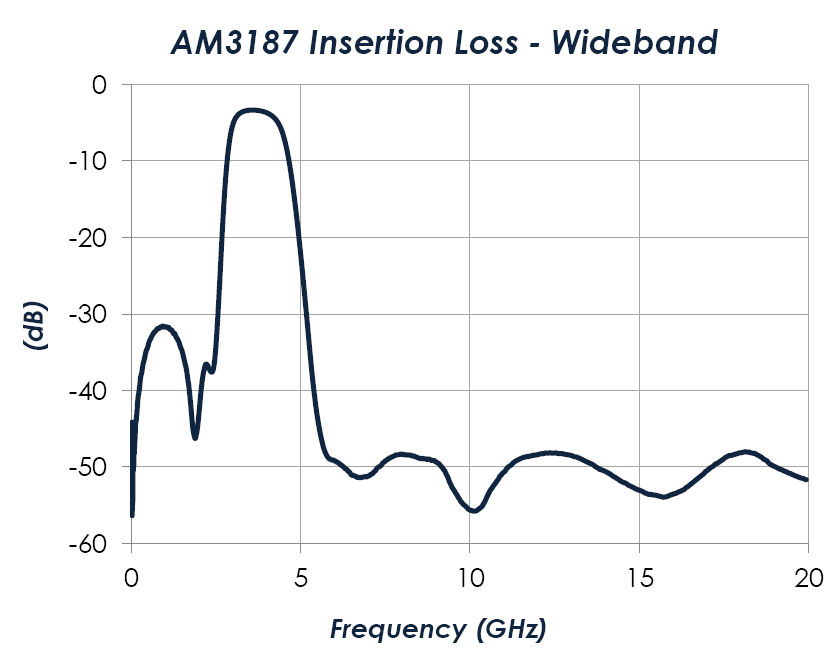

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

4mm QFN

Bandwidth Low (MHz)

1000

Center Frequency

3750

# in Pack

1



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM3187

3.75 GHz IF Bandpass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3187 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package. With a center frequency of 3.75 GHz and a bandwidth of 1 GHz, AM3187 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3187 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

Product Overview

AM3187 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 4mm package. With a center frequency of 3.75 GHz and a bandwidth of 1 GHz, AM3187 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3187 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3187.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

3250

Cutoff Freq High (MHz)

4250

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

4mm QFN

Bandwidth Low (MHz)

1000

Center Frequency

3750

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39
