AtlantaMicro

AM3215

2 GHz to 18 GHz Bandpass Preselector Filter Bank


Recommended for New Designs


Product Options

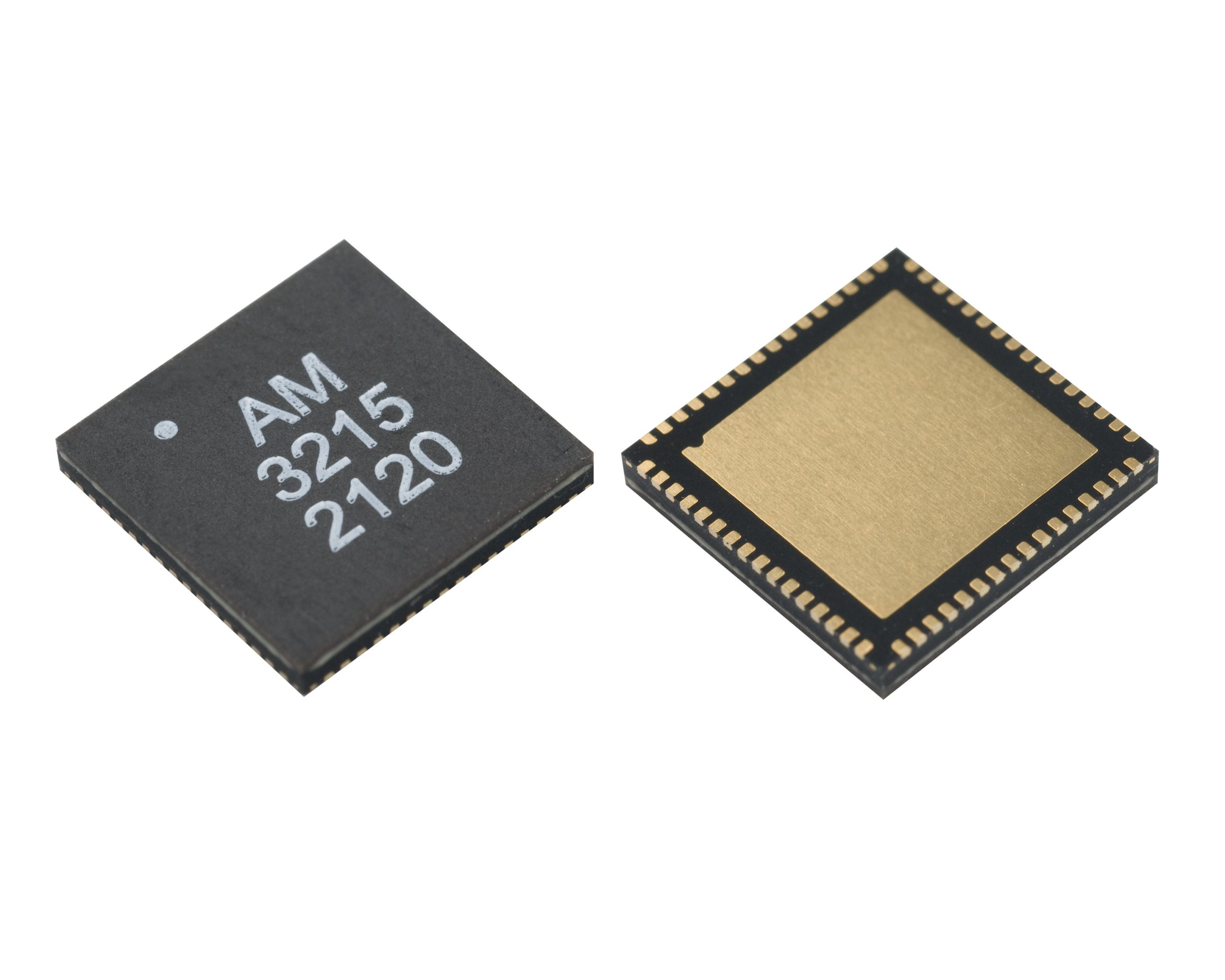

Surface Mount 9mm x 9mm QFN
Connectorized Evaluation Board

Product Overview

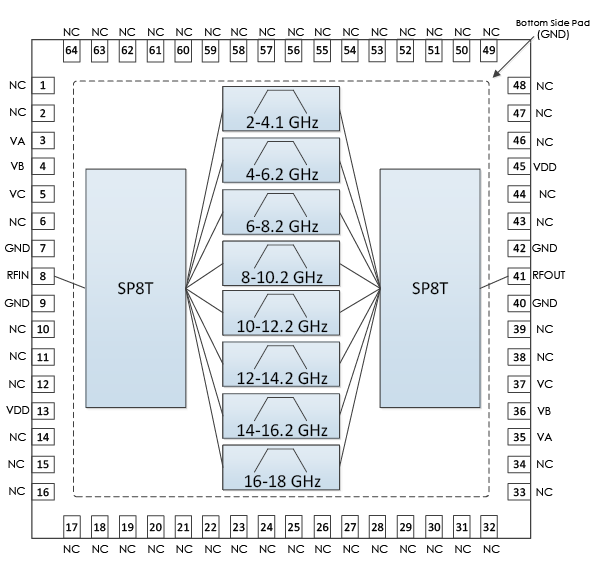

AM3215 is a broadband eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50Ω matching and packaged in a 9mm QFN, the AM3215 represents a compact total PCB footprint, the AM3215 is suited for low SWaP applications.

Product Overview

AM3215 is a broadband eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50Ω matching and packaged in a 9mm QFN, the AM3215 represents a compact total PCB footprint, the AM3215 is suited for low SWaP applications.

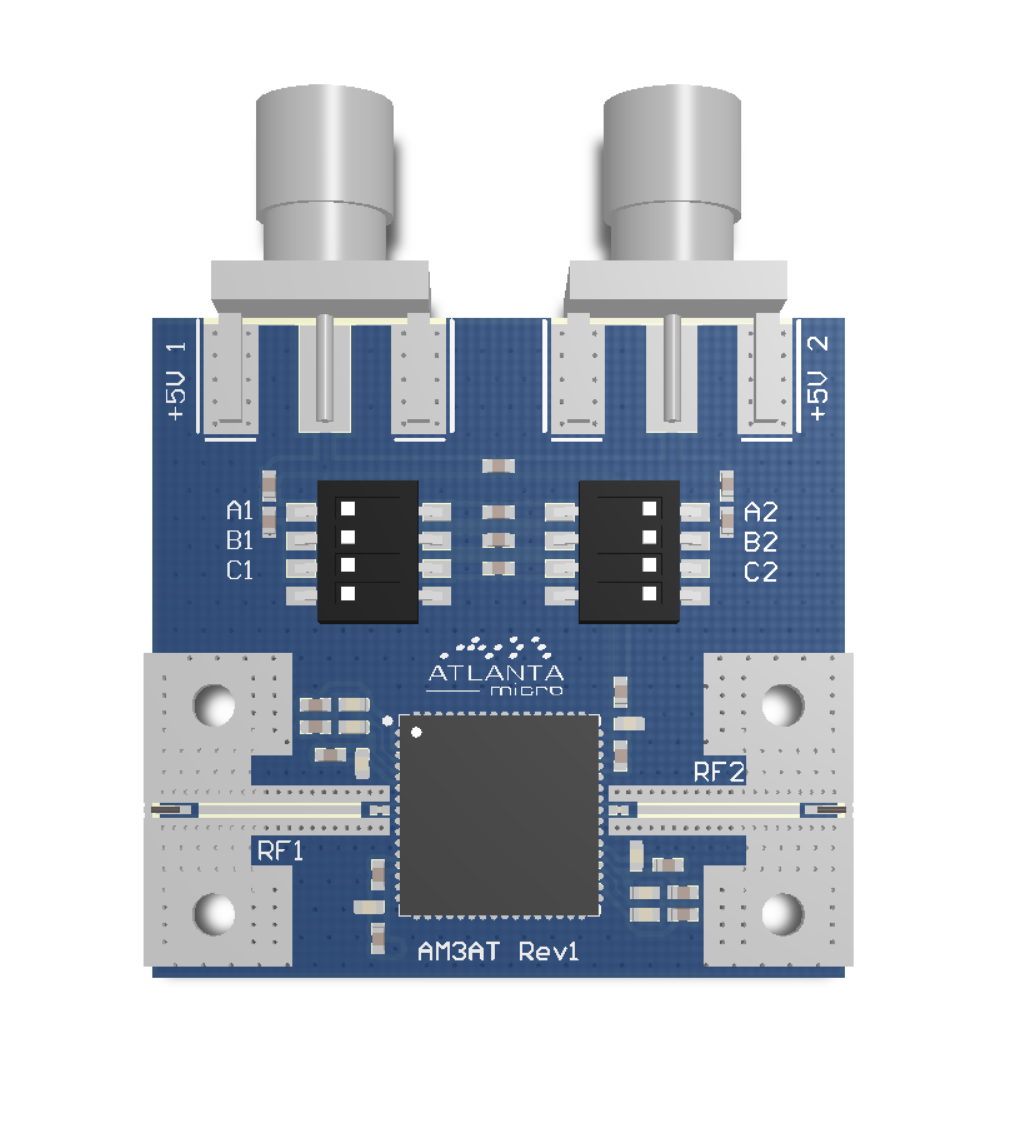

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3215 evaluation board also includes DIP switch for control of the filter band settings. Evaluation board includes AM3215.

Specifications

Function

Preselector Filter Bank

Cutoff Freq Low (MHz)

2000

Cutoff Freq High (MHz)

18000

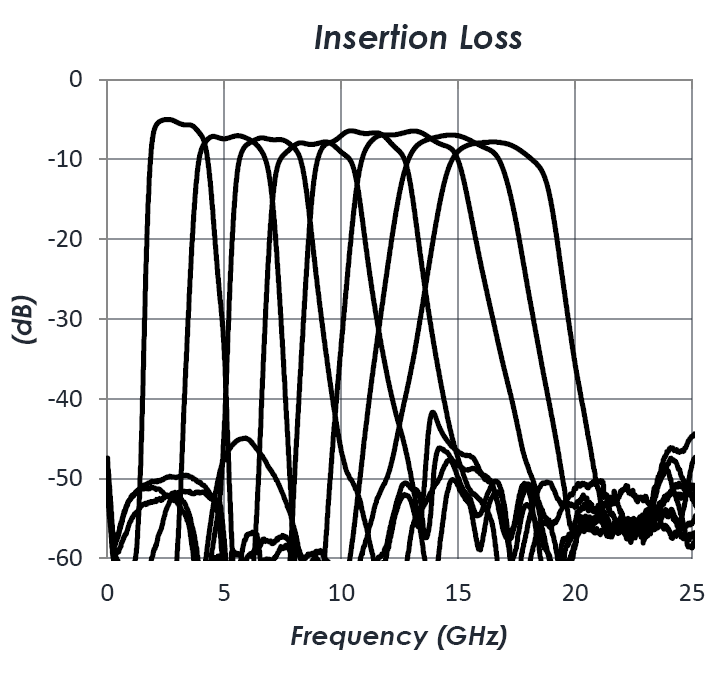

Insertion Loss (dB)

7.5

Typical Rejection (dB)

50

Package

9mm QFN

Bandwidth Low (MHz)

2000

Bandwidth High (MHz)

2000

# in Pack

8

Center Freq High (MHz)

17000

Center Freq Low (MHz)

3000



ECCN/USML: 3A001.b.5

Harmonized Code: 8542.39

AM3215

2 GHz to 18 GHz Bandpass Preselector Filter Bank


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 9mm x 9mm QFN
Connectorized Evaluation Board

Product Overview

AM3215 is a broadband eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50Ω matching and packaged in a 9mm QFN, the AM3215 represents a compact total PCB footprint, the AM3215 is suited for low SWaP applications.

Product Overview

AM3215 is a broadband eight-way bandpass filter bank offering low loss and high rejection from 2 GHz to 18 GHz. Each band delivers 2 GHz of bandwidth. With internal 50Ω matching and packaged in a 9mm QFN, the AM3215 represents a compact total PCB footprint, the AM3215 is suited for low SWaP applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3215 evaluation board also includes DIP switch for control of the filter band settings. Evaluation board includes AM3215.

Specifications

Function

Preselector Filter Bank

Cutoff Freq Low (MHz)

2000

Cutoff Freq High (MHz)

18000

Insertion Loss (dB)

7.5

Typical Rejection (dB)

50

Package

9mm QFN

Bandwidth Low (MHz)

2000

Bandwidth High (MHz)

2000

# in Pack

8

Center Freq High (MHz)

17000

Center Freq Low (MHz)

3000



ECCN: 3A001.b.5

Harmonized Code: 8542.39
