AM3236

3.75 GHz Center, 2 GHz IBW IF Bandpass Filter


Recommended for New Designs


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM3236 is a broadband bandpass filter covering the 2.75 GHz to 4.75 GHz frequency range. The AM3236 provides high rejection, suboctave filtering. It excels at providing 2 GHz of bandwidth and anti-alias filtering for applications targeting 5 GSPS. With internal 50Ω matching and packaged in a 4mm QFN, the AM3236 represents a compact total PCB footprint.

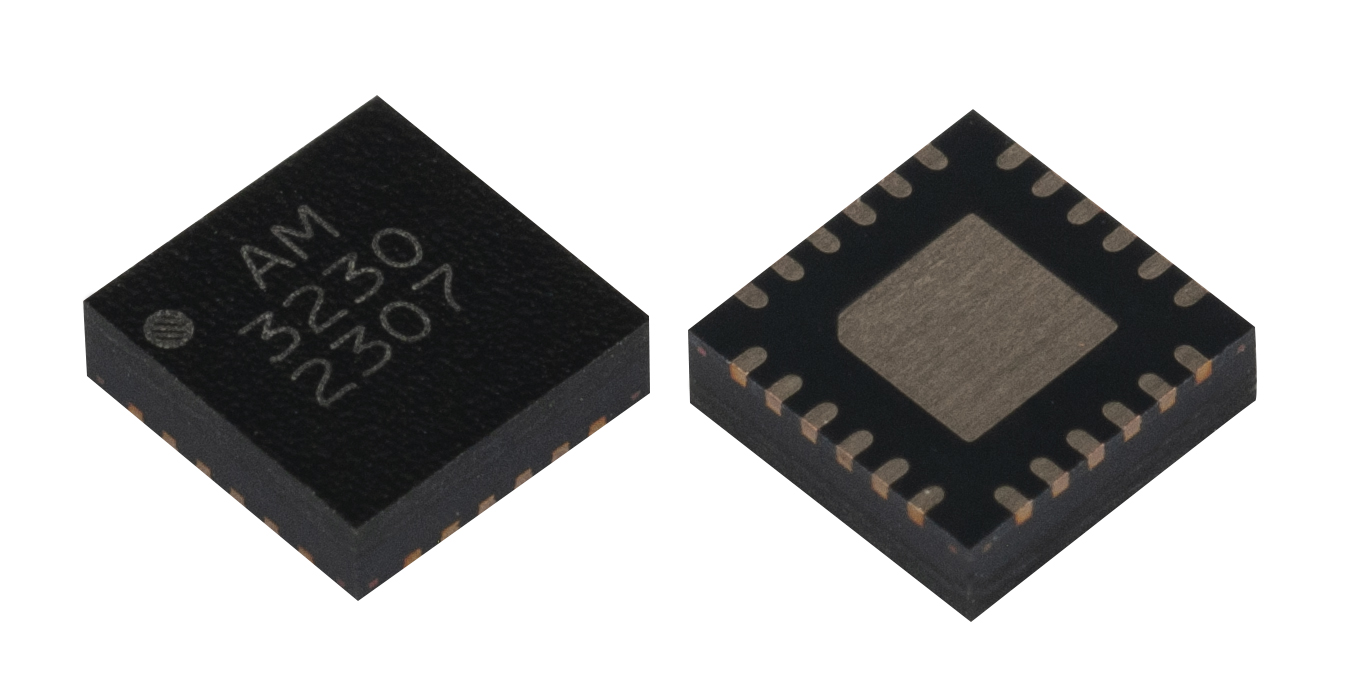

Note: Generic Part Picture Shown, Same Package Type and Footprint/Size

Product Overview

AM3236 is a broadband bandpass filter covering the 2.75 GHz to 4.75 GHz frequency range. The AM3236 provides high rejection, suboctave filtering. It excels at providing 2 GHz of bandwidth and anti-alias filtering for applications targeting 5 GSPS. With internal 50Ω matching and packaged in a 4mm QFN, the AM3236 represents a compact total PCB footprint.

Evaluation board includes connectors as shown.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

2750

Cutoff Freq High (MHz)

4750

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

4mm QFN

Bandwidth Low (MHz)

2000

Center Frequency

3750

# in Pack

1



ECCN/USML: EAR99

Harmonized Code: 8542.39
