AM4009

6 GHz to 24 GHz 2-Way 0-Degree Splitter


Recommended for New Designs


Product Options

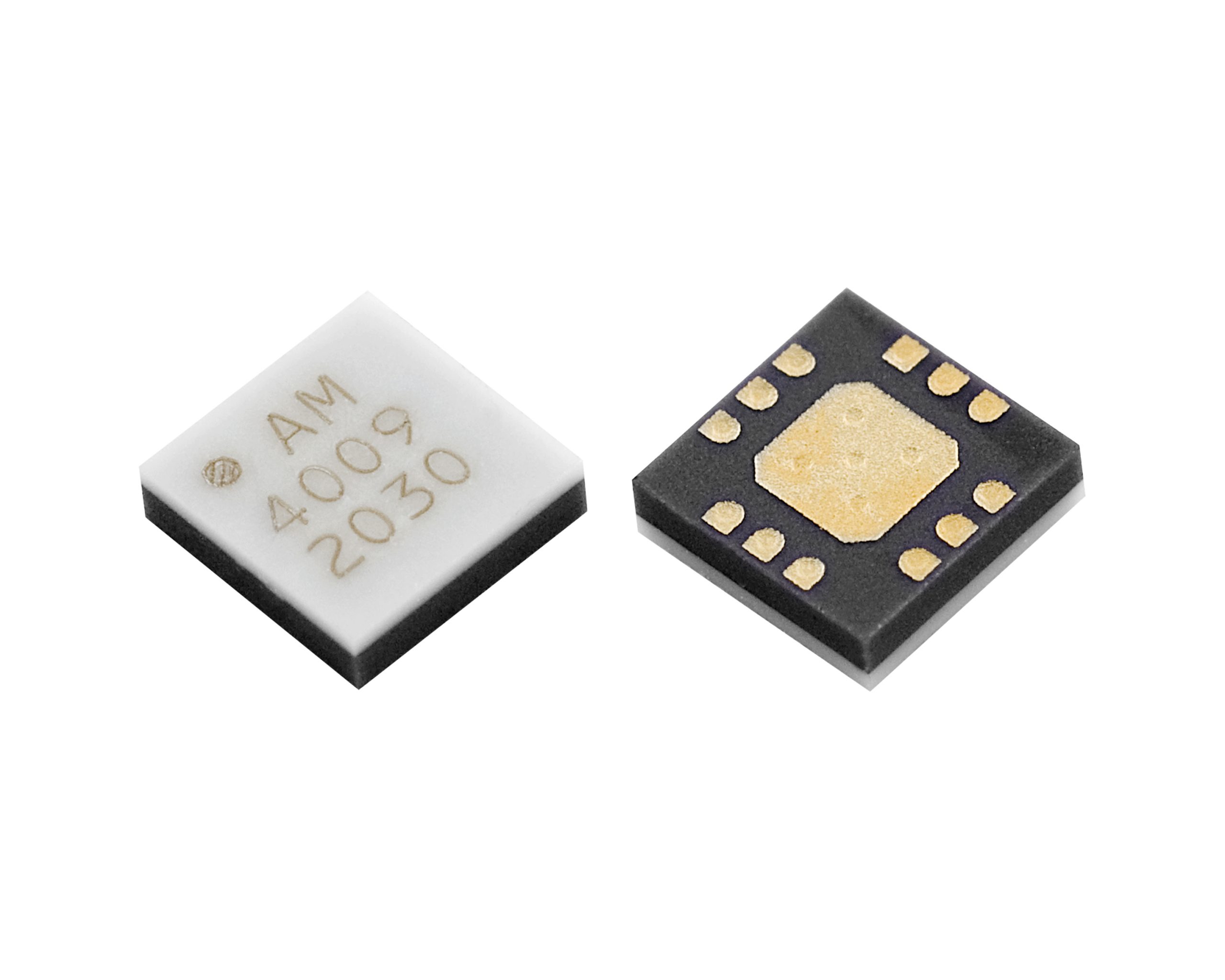

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM4009 is a broadband two-way power splitter / combiner providing low loss and high isolation from 6 GHz to 24 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4009 represents a compact total PCB footprint.

Product Overview

AM4009 is a broadband two-way power splitter / combiner providing low loss and high isolation from 6 GHz to 24 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4009 represents a compact total PCB footprint.

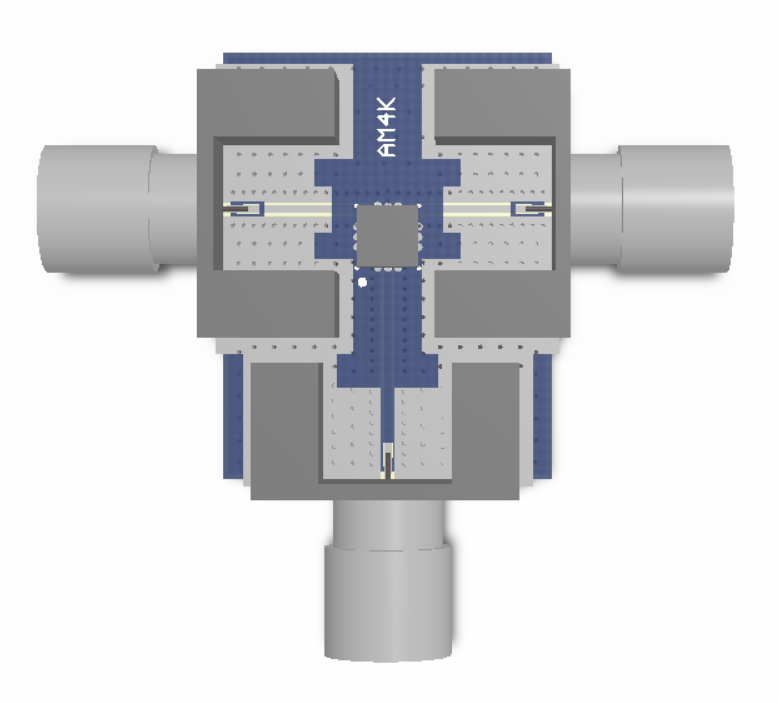

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM4008.

Specifications

Function

2-Way 0 Degree

Freq. (GHz)

6 - 24

Insertion Loss (dB)

2

Isolation (dB)

25

P1dB (dBm)

27

Package

3mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39
