AtlantaMicro

AM4033

2.0 GHz to 18.0 GHz Balun


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

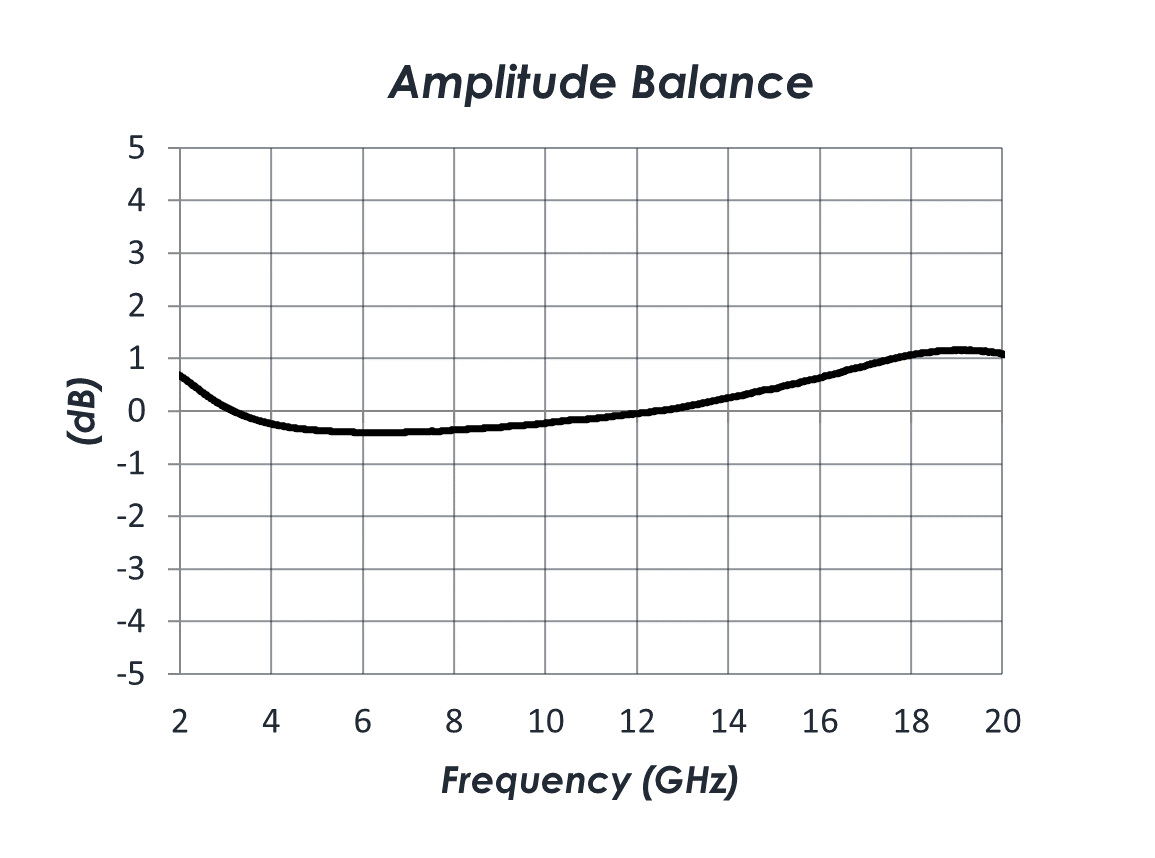

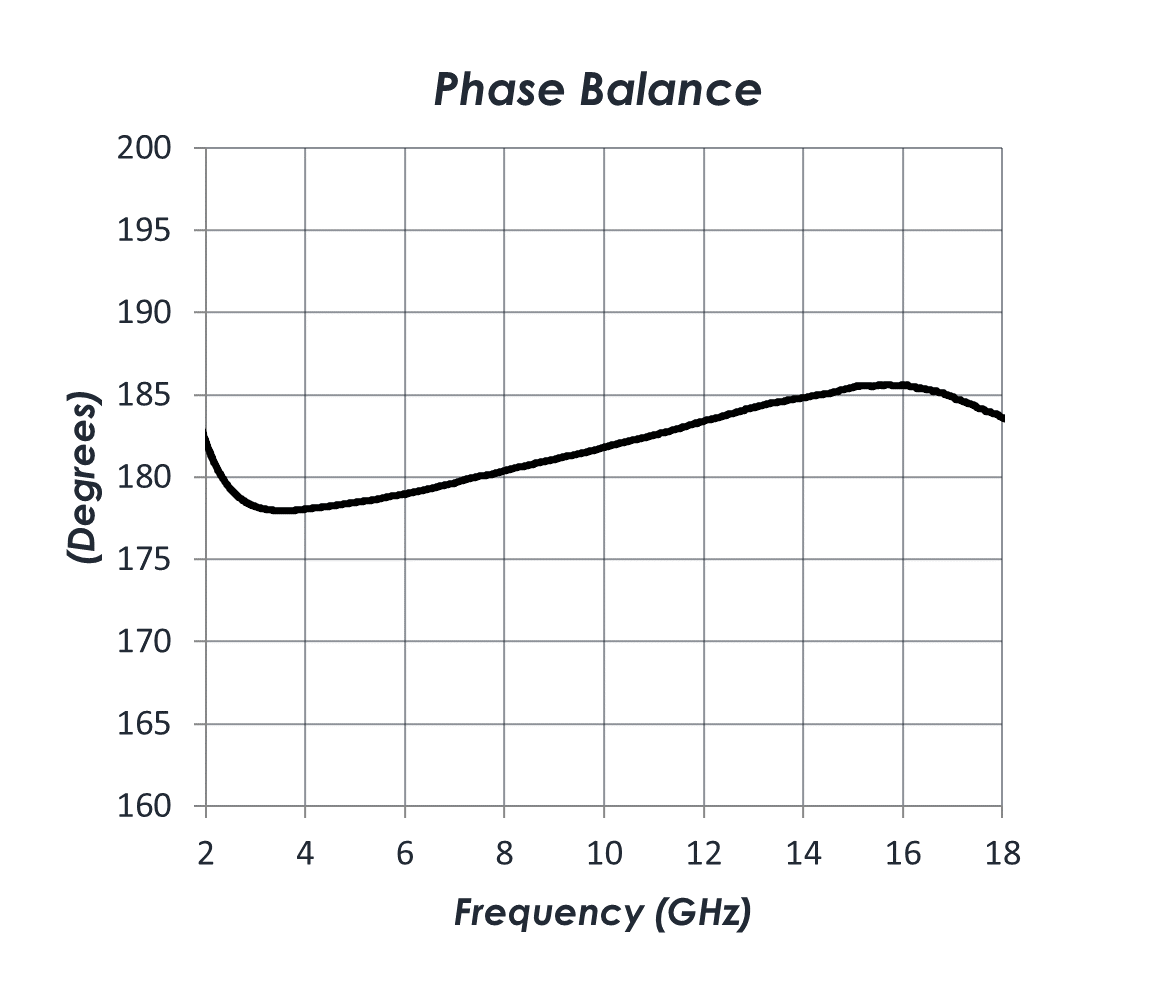

AM4033 is a broadband Balun that allows a 180° phase difference between output ports. The balun has low loss, high isolation, and low amplitude/phase mismatch from 2.0 GHz to 18.0 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4033 represents a compact total PCB footprint.

Note: Generic Part Picture Shown, Same Package/Footprint/Size

Product Overview

AM4033 is a broadband Balun that allows a 180° phase difference between output ports. The balun has low loss, high isolation, and low amplitude/phase mismatch from 2.0 GHz to 18.0 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4033 represents a compact total PCB footprint.

Evaluation board includes connectors as shown.

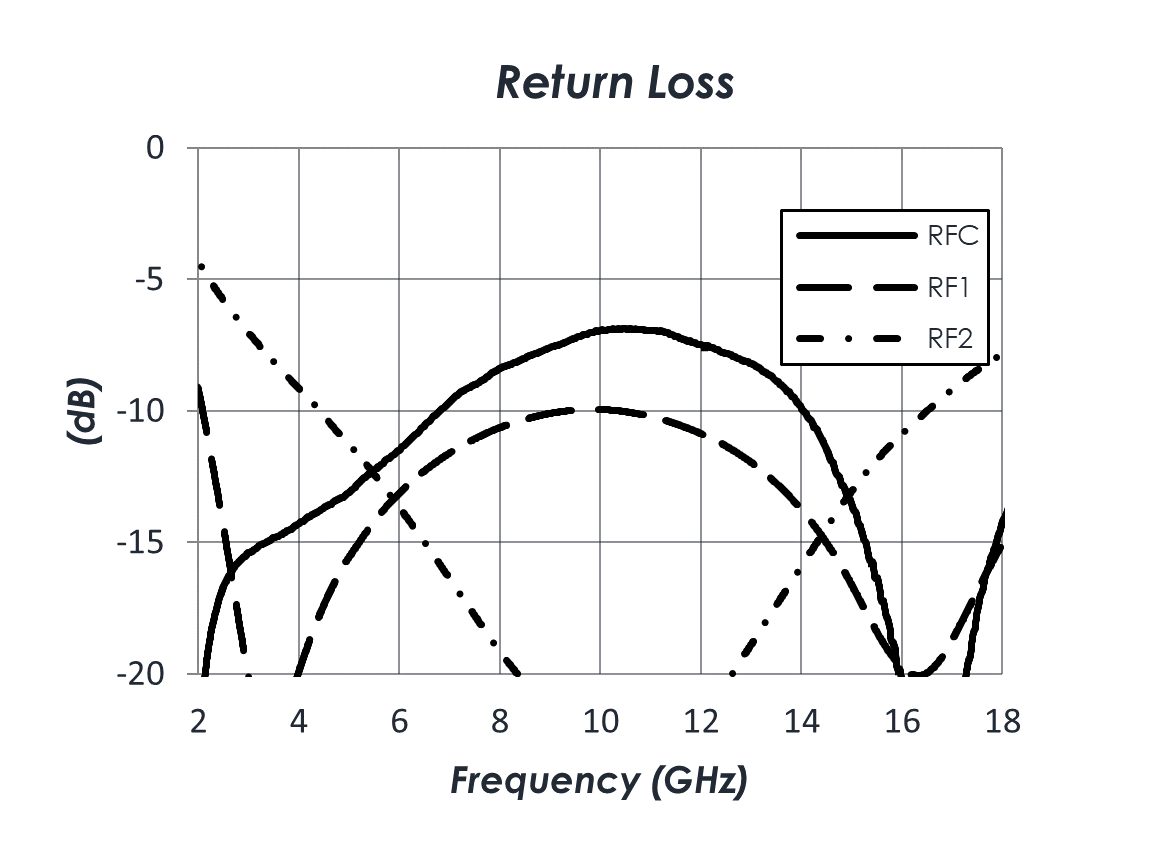

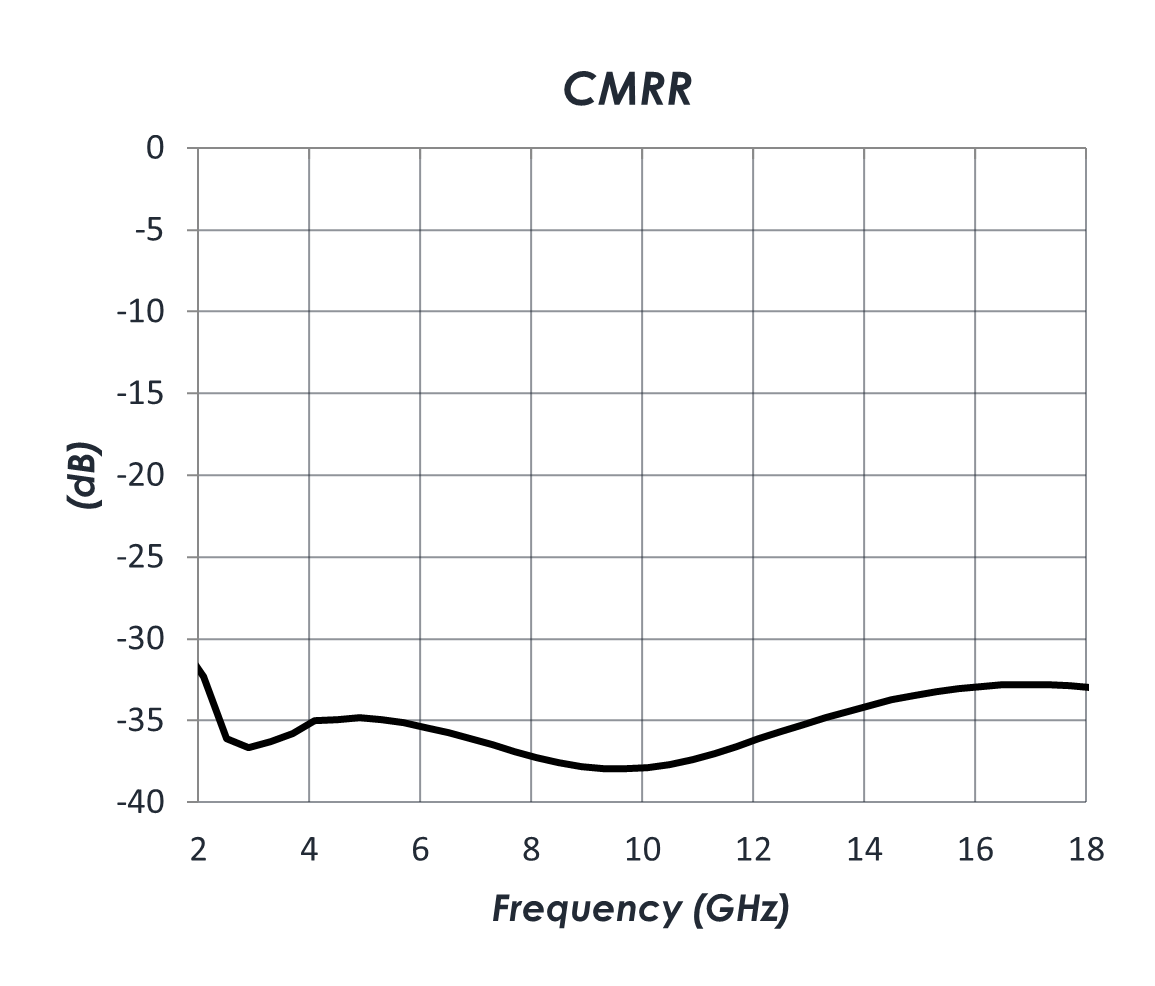

Specifications

Function

180 Deg Balun

Freq. (GHz)

2.0 - 18.0

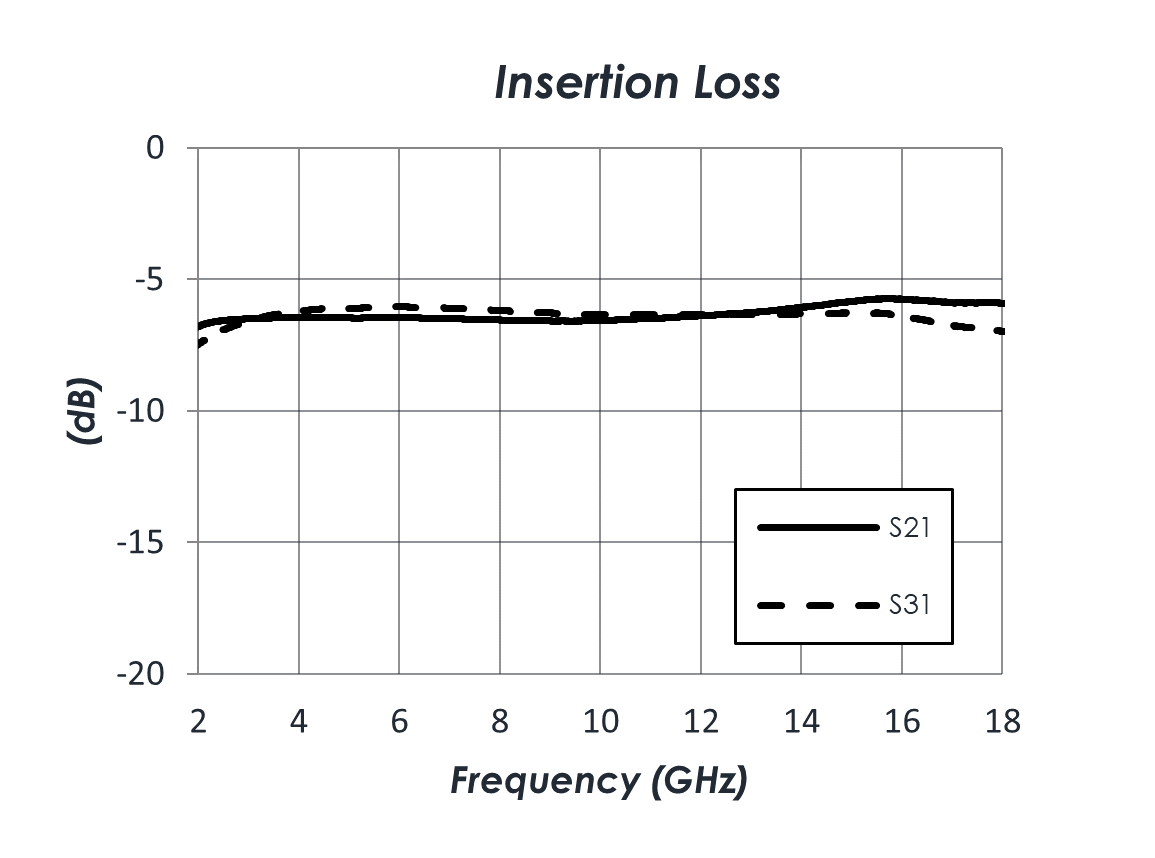

Insertion Loss (dB)

6.3

Isolation (dB)

13

P1dB (dBm)

27

Package

3mm QFN



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM4033

2.0 GHz to 18.0 GHz Balun


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM4033 is a broadband Balun that allows a 180° phase difference between output ports. The balun has low loss, high isolation, and low amplitude/phase mismatch from 2.0 GHz to 18.0 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4033 represents a compact total PCB footprint.

Note: Generic Part Picture Shown, Same Package/Footprint/Size

Product Overview

AM4033 is a broadband Balun that allows a 180° phase difference between output ports. The balun has low loss, high isolation, and low amplitude/phase mismatch from 2.0 GHz to 18.0 GHz. With internal 50Ω matching and packaged in a 3mm QFN, the AM4033 represents a compact total PCB footprint.

Evaluation board includes connectors as shown.

Specifications

Function

180 Deg Balun

Freq. (GHz)

2.0 - 18.0

Insertion Loss (dB)

6.3

Isolation (dB)

13

P1dB (dBm)

27

Package

3mm QFN



ECCN: EAR99

Harmonized Code: 8542.39
