AM6011

DC to 10 GHz Reflective SP8T


Recommended for New Designs


Product Options

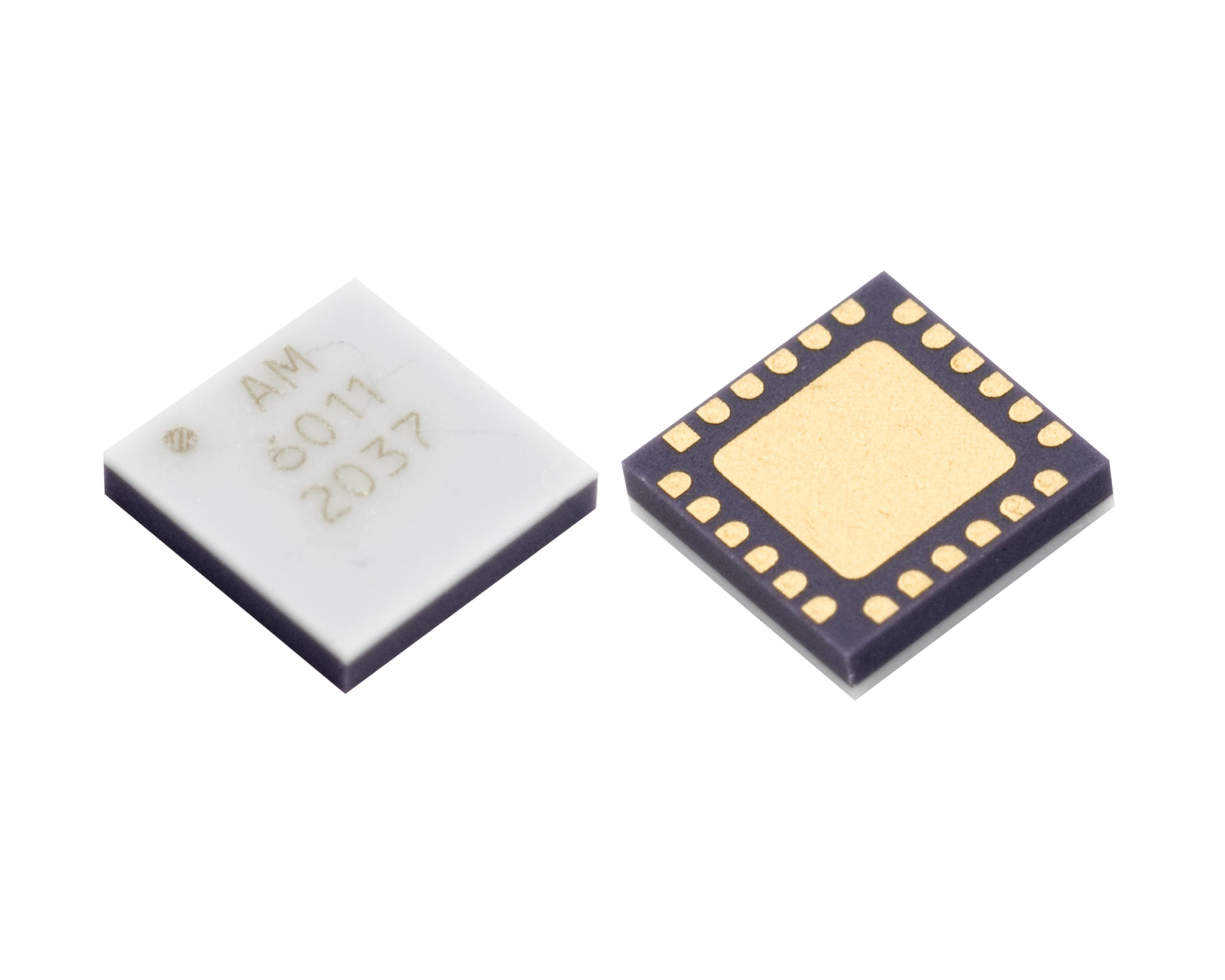

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM6011 is a Single-Pole Eight-Throw (SP8T) switch covering the DC to 10 GHz frequency range. The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

Product Overview

AM6011 is a Single-Pole Eight-Throw (SP8T) switch covering the DC to 10 GHz frequency range. The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

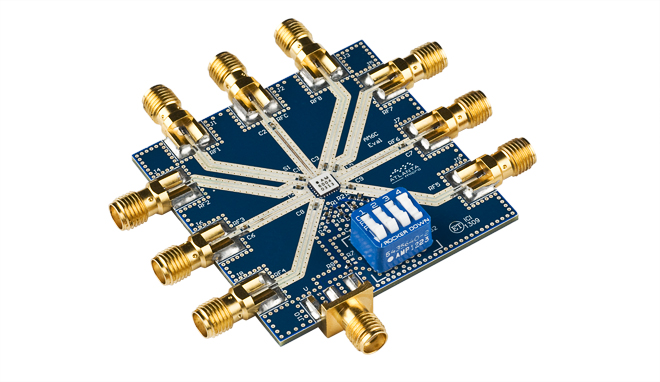

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6011 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6011.

Specifications

Function

SP8T, Reflective

Freq. (GHz)

DC - 10

Insertion Loss (dB)

1

Isolation (dB)

25

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

9

Control

3.0 to 5.0

Package

4mm QFN

Module

No



ECCN/USML: EAR99

Harmonized Code: 8542.39
