AtlantaMicro

AM6032

DC to 26.5 GHz Reflective SP4T


Recommended for New Designs


Product Options

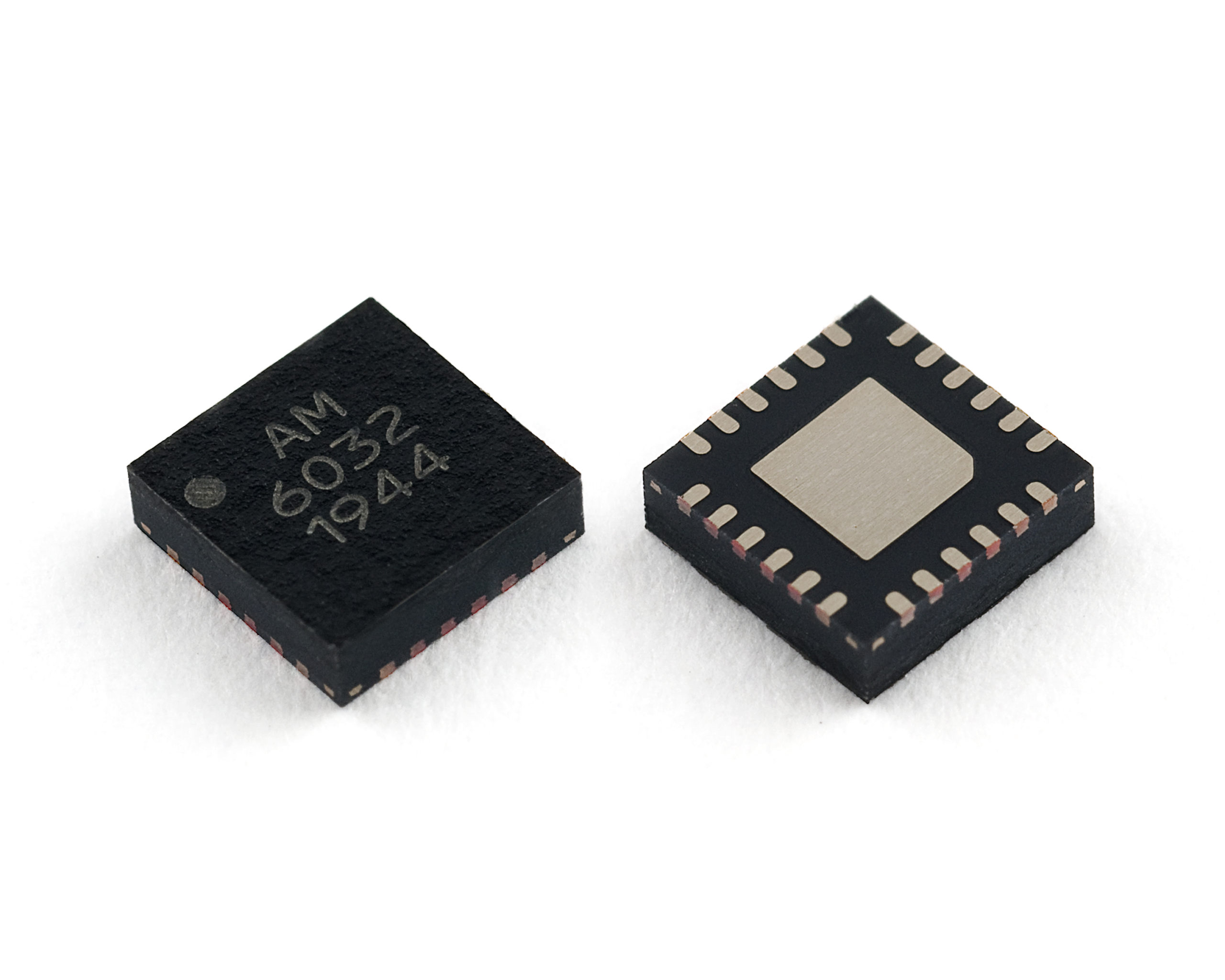

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM6032 is a reflective Single-Pole Four-Throw (SP4T) switch covering the DC to 26.5 GHz frequency range suited for a wide range of wireless
applications.

The AM6032 provides low insertion loss, flat frequency response, high isolation and linearity, and fast switching speed making this switch ideal for high frequency, low power transmit/receive applications. The AM6032 requires only a single positive supply and two positive control voltages. With internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 4mm QFN, the AM6032 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

Product Overview

AM6032 is a reflective Single-Pole Four-Throw (SP4T) switch covering the DC to 26.5 GHz frequency range suited for a wide range of wireless
applications.

The AM6032 provides low insertion loss, flat frequency response, high isolation and linearity, and fast switching speed making this switch ideal for high frequency, low power transmit/receive applications. The AM6032 requires only a single positive supply and two positive control voltages. With internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 4mm QFN, the AM6032 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

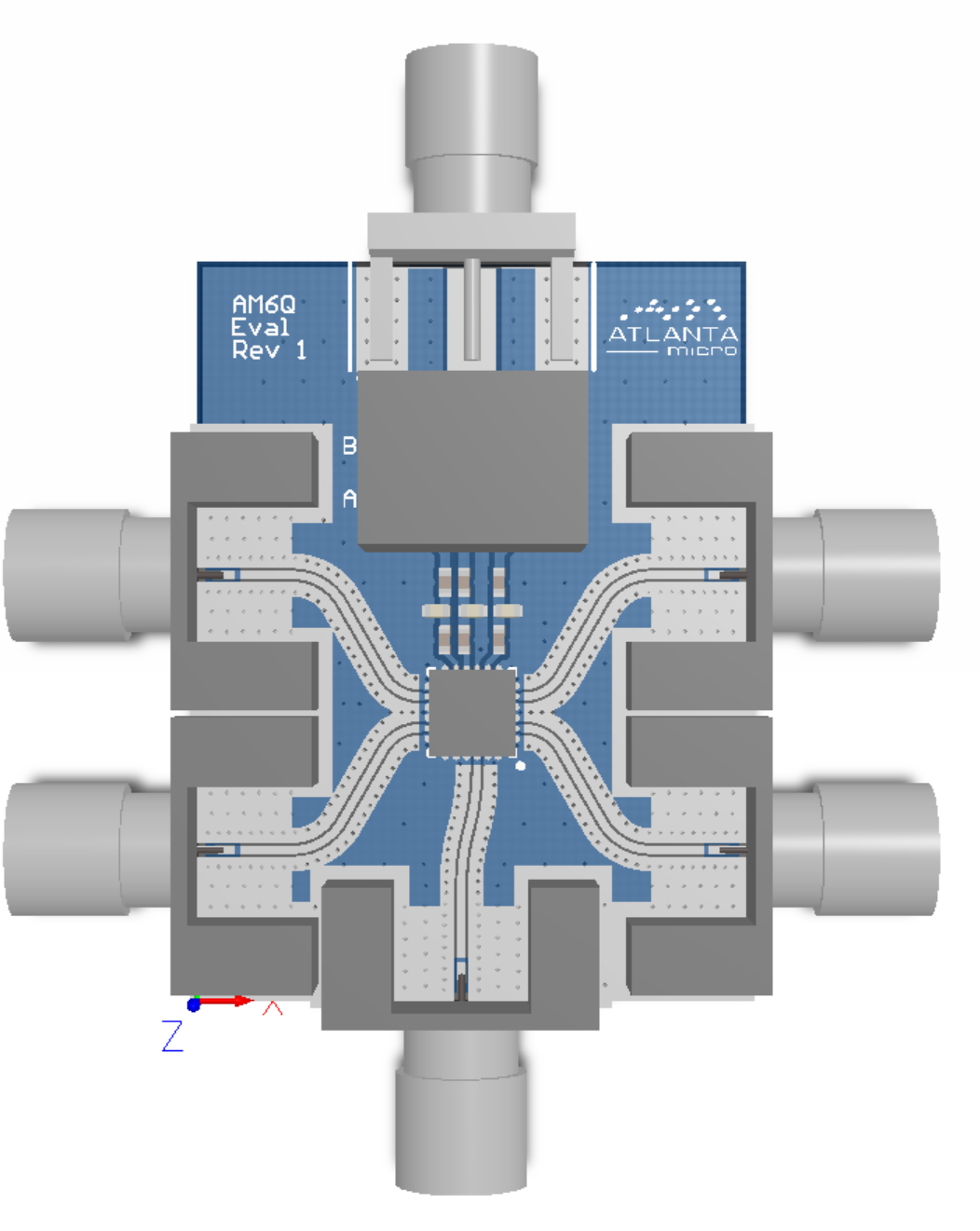

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6032 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6032.

Specifications

Function

SP4T, Reflective

Freq. (GHz)

DC - 26.5

Insertion Loss (dB)

1.5

Isolation (dB)

50

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

5

Control

3.0 to 5.0

Package

4mm QFN

Module

No



ECCN/USML: EAR99

Harmonized Code: 8542.39

AM6032

DC to 26.5 GHz Reflective SP4T


Recommended for New Designs

Add To Quote
